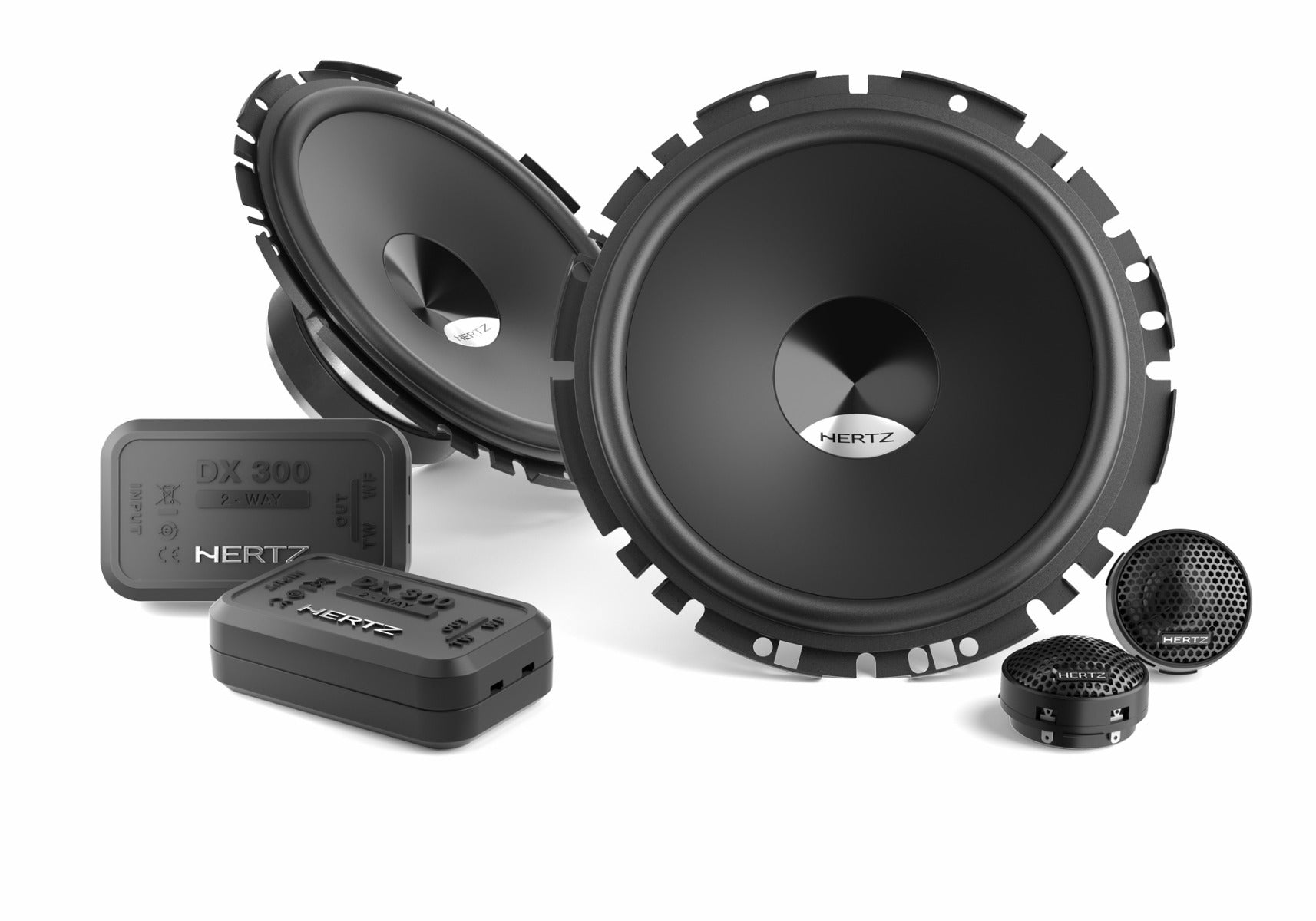

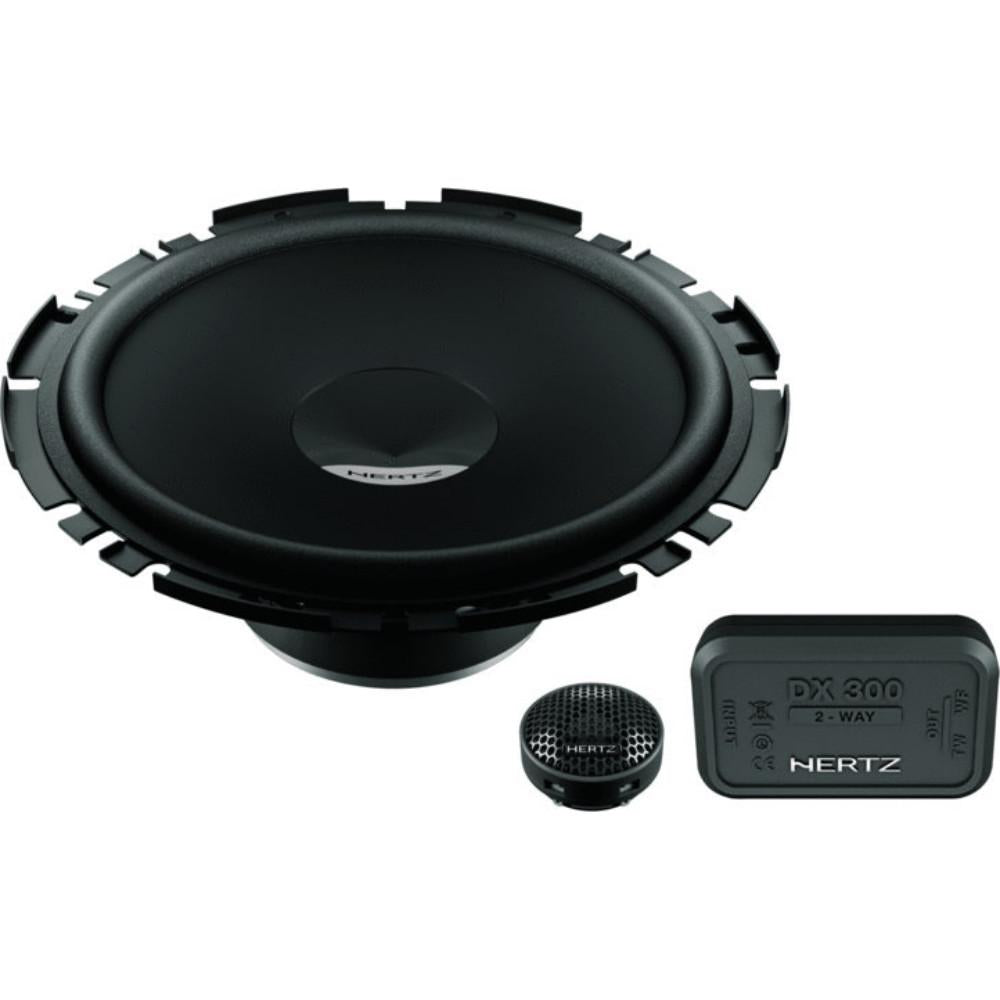

The Hertz Dieci DSK 170.3 component system lets you realize a high quality audio system with the utmost in simplicity.  The slimline Euro-fit baskets feature a very low mounting depth profile for the most diverse fitting compatibility. The slimline woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion.

High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.

Specification

• Component - Two way system



• Size mm (in.) - 170 (6.7)



• Power Handling - 80W Continuous



• Power Handling - 160W Peak



• Impedance - 4 Ohm



• Woofer Voice Coil Ø mm (in.) - 25 (1.0)



• Sensitivity dB SPL - 93



• Frequency Response - 50Hz ÷ 23Khz



• Crossover Cut off - 3,5 kHz @ 12 dB Oct.



• Crossover Type - Hi Pass



• Weight of one component - Woofer - 0,53 (1.17)



• Weight of one component - Tweeter kg (lb) - 0,03 (0.07)



• Weight of one component - Crossover kg (lb) - 0,16 (0.35)

Electro-acoustic Specs

• D mm - 133
• Re Ohm - 3,6
• Fs Hz - 79
• Le mH - 0,26
• Vas I - 11,3
• Mms g - 10
• Cms mm/N - 0,4
• BL T*m - 3,9
• Qts - 0,96
• Qes - 1,15
• Qms - 5,78
• Spl dB - 93
