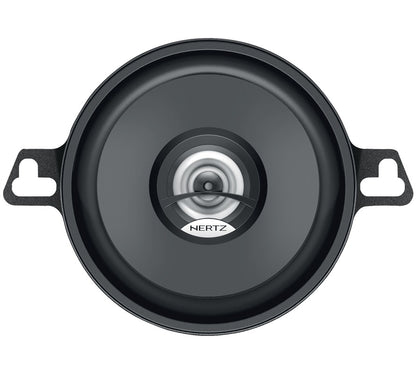

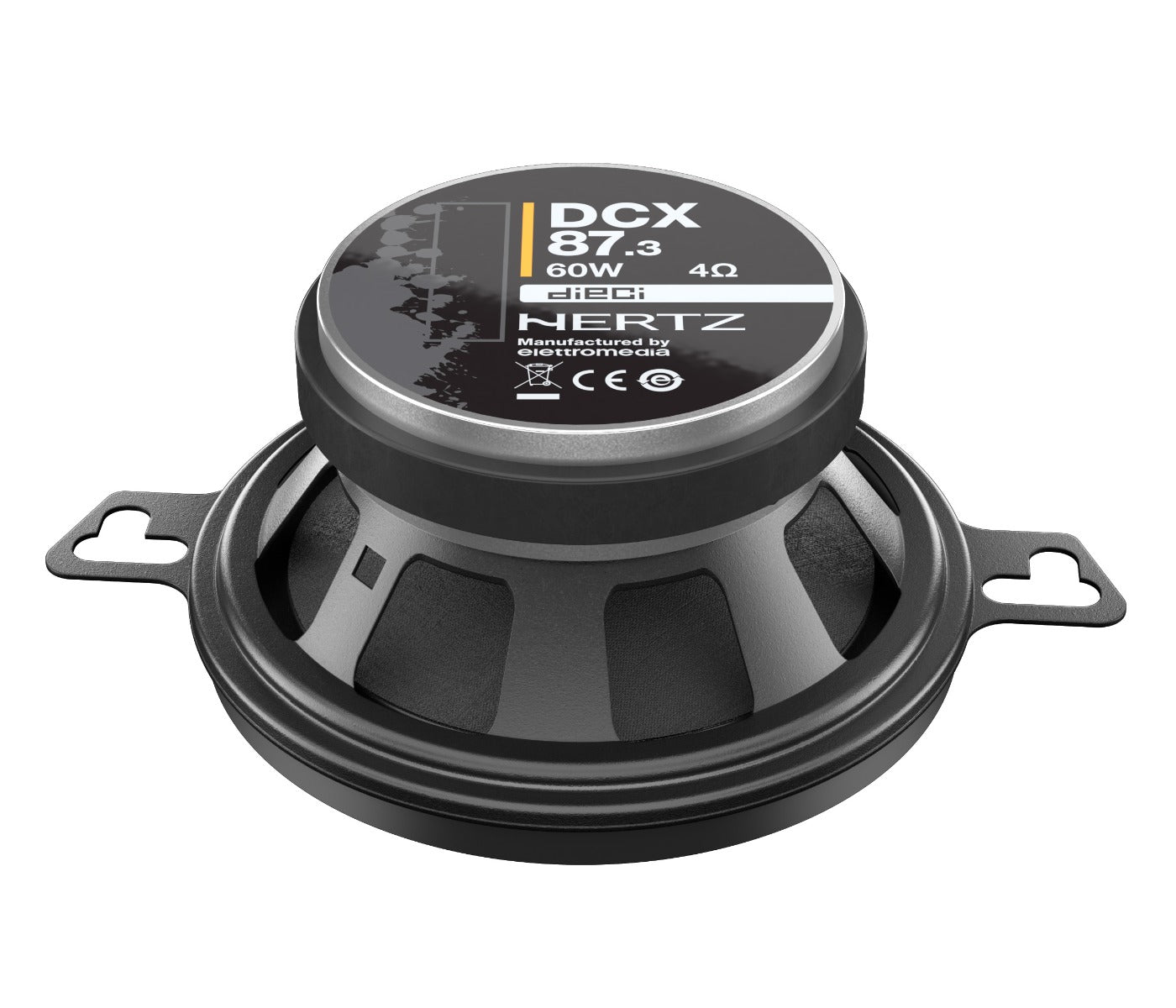

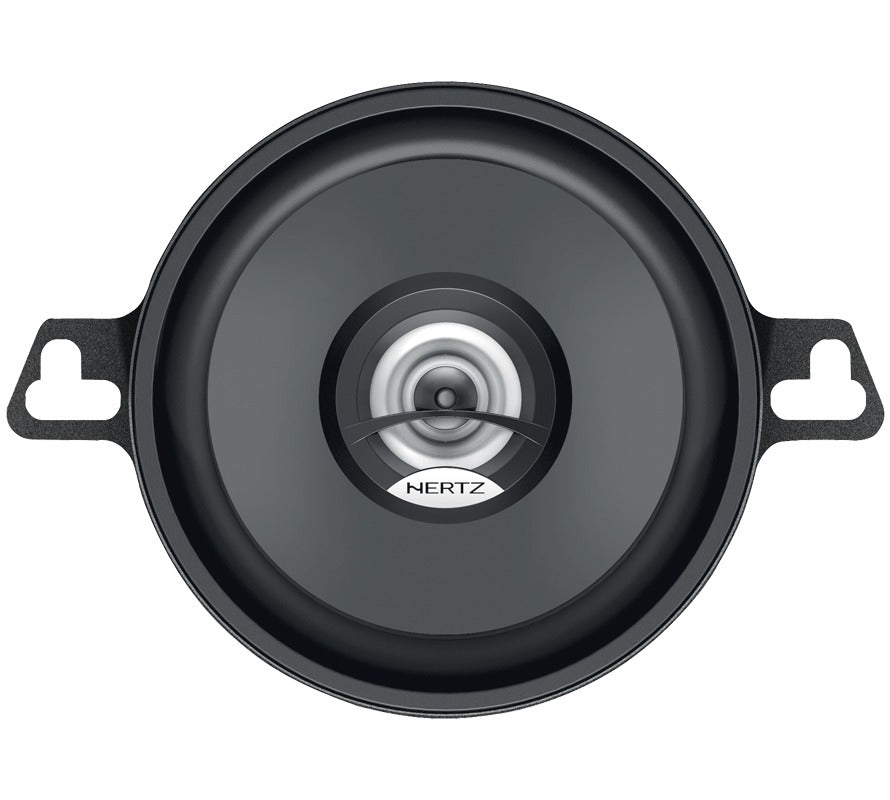

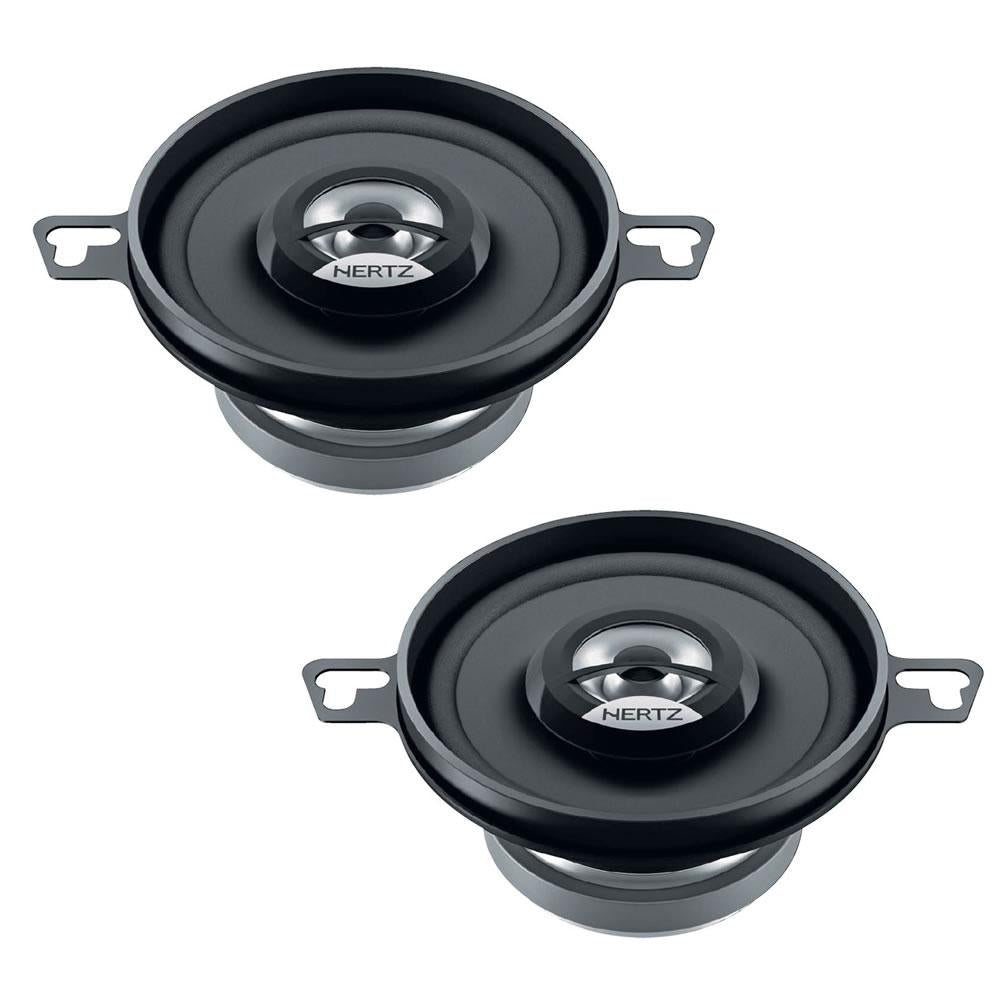

The Hertz DCX 87.3 coaxial speaker combines a woofer made of the highest performance materials with a neodymium tweeter featuring the exclusive PEI dome. Despite its compact size, the DCX 87.3 features an oversized magnetic group for ultimate control, still maintaining a compact size. For those who look for a high-performance two-way coax, the DCX 87.3 is able to ensure wide frequency response and excellent sound in any installation.

Technical Specs

• Component - Two way coaxial
• Size mm (in.) - 87 (3.4)
• Power Handling - 30W Continuous
• Power Handling - 60W Peak
• Impedance - 4 Ohm
• Depth mm (in.) - 45 (1.8)
• Woofer Voice Coil Ø mm (in.) - 20 (0.8)
• Frequency Response 130Hz ÷ 21Khz
• Woofer Magnet size D x d x h mm (in.) - 60 x 24 x 8 (2.4 x 0.9 x 0.3)
• Weight of one speaker kg (lb.) - 0,31 (0.68)
• Woofer Magnet - High density flux ferrite
• Tweeter Magnet - Neodymium
• Cone - Water-repellent pressed paper
• Dome - PEI

Electro-acoustic Specs

• D mm - 70
• Re Ohm - 3,1
• Fs Hz - 190
• Vas I - 0,7
• Mms g - 2,0
• Cms mm/N - 0,35
• BL T*m - 2,5
• Qts - 1
• Qes - 1,25
• Qms - 5,66
• Spl dB - 92
