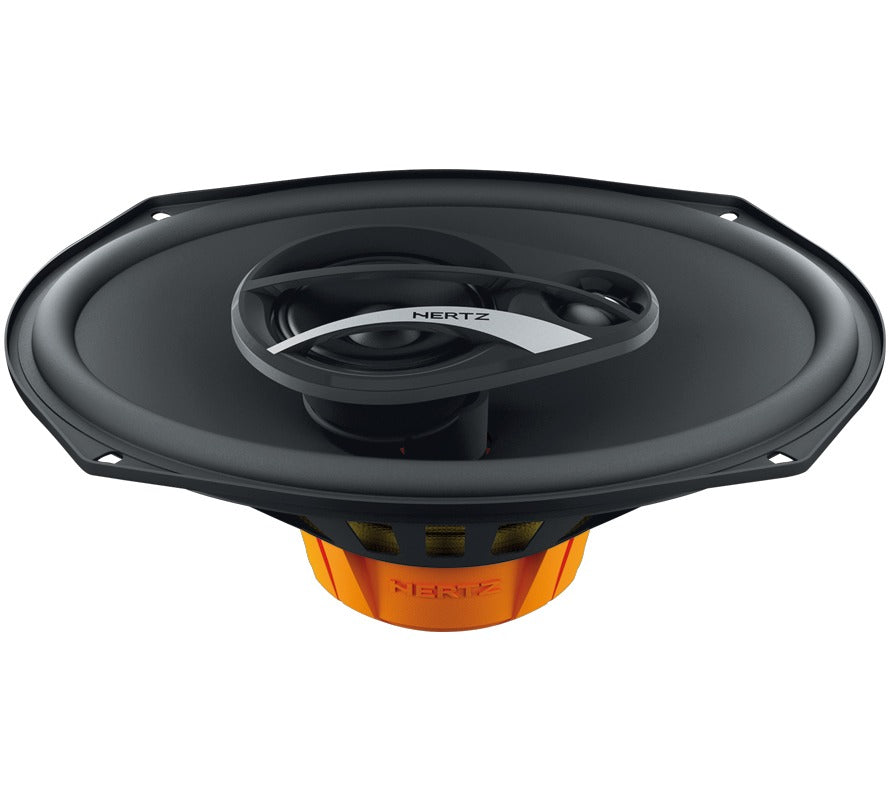

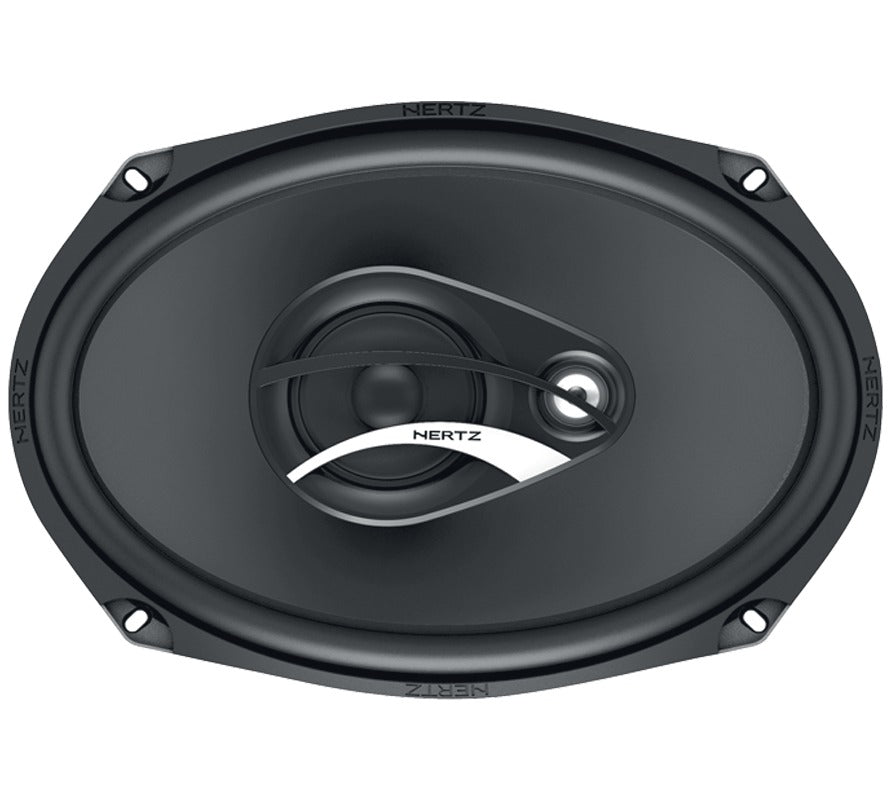

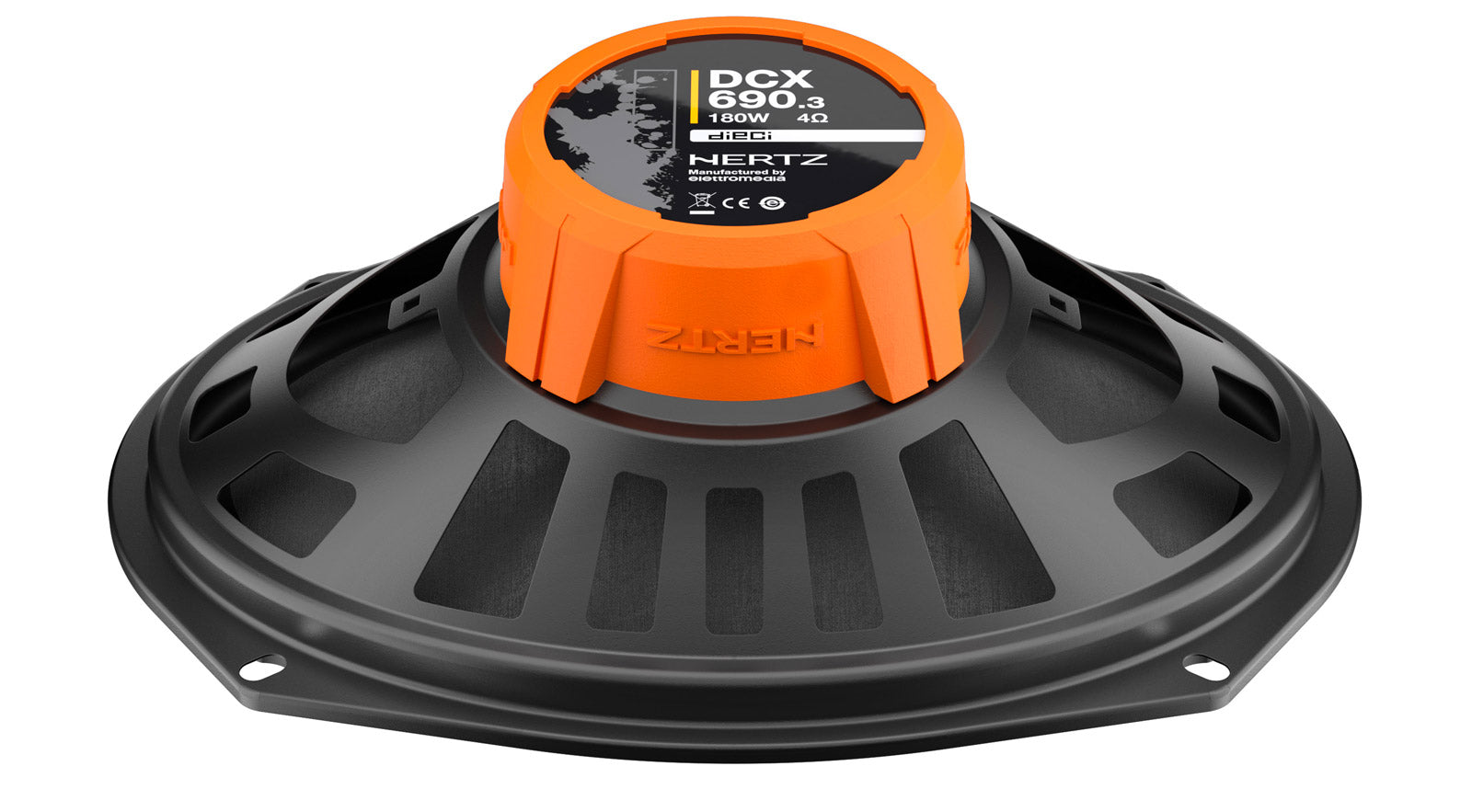

The Hertz DCX 690.3  use an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange, and a PEI dome tweeter. The result is linearity, wide dispersion, and extra-ordinary efficiency not found in traditional coax components. An authentic 3-way coax capable of reproducing a wide frequency spectrum.

Tehcnical Specs

• Component - Three way coaxial
• Size mm (in.) - (6 x 9)
• Power Handling - 90W Continuous
• Power Handling - 180W Peak
• Impedance - 4 Ohm
• Depth mm (in.) - 98 (3.9)
• Woofer Voice Coil Ø mm (in.) - 25 (1.0)
• Frequency Response 45Hz ÷ 21Khz
• Woofer Magnet size D x d x h mm (in.) - 80 x 40 x 15 (3.1 x 1.6 x 0.6)
• Weight of one speaker kg (lb.) - 0,95 (2.09)
• Woofer Magnet - High density flux ferrite
• Tweeter Magnet - High density flux ferrite

Electro-acoustic Specs

• D mm - 170
• Re Ohm - 3,4
• Fs Hz - 66
• Vas I - 25,7
• Mms g - 16,5
• Cms mm/N - 0,35
• BL T*m - 3,9
• Qts - 1,12
• Qes - 1,55
• Qms - 4,06
• Spl dB - 93
