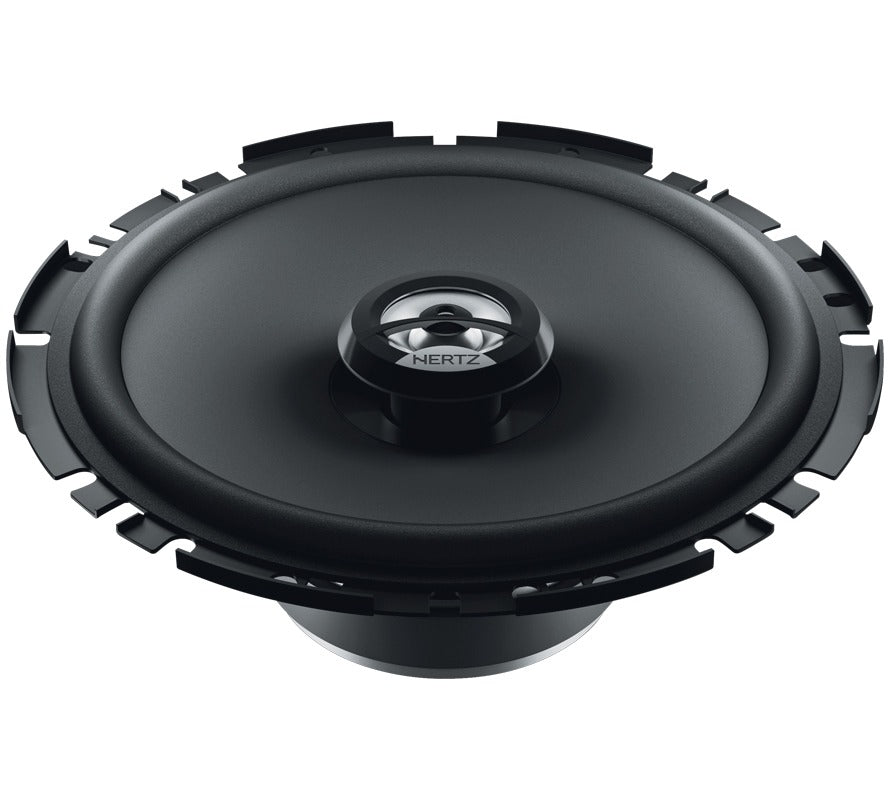

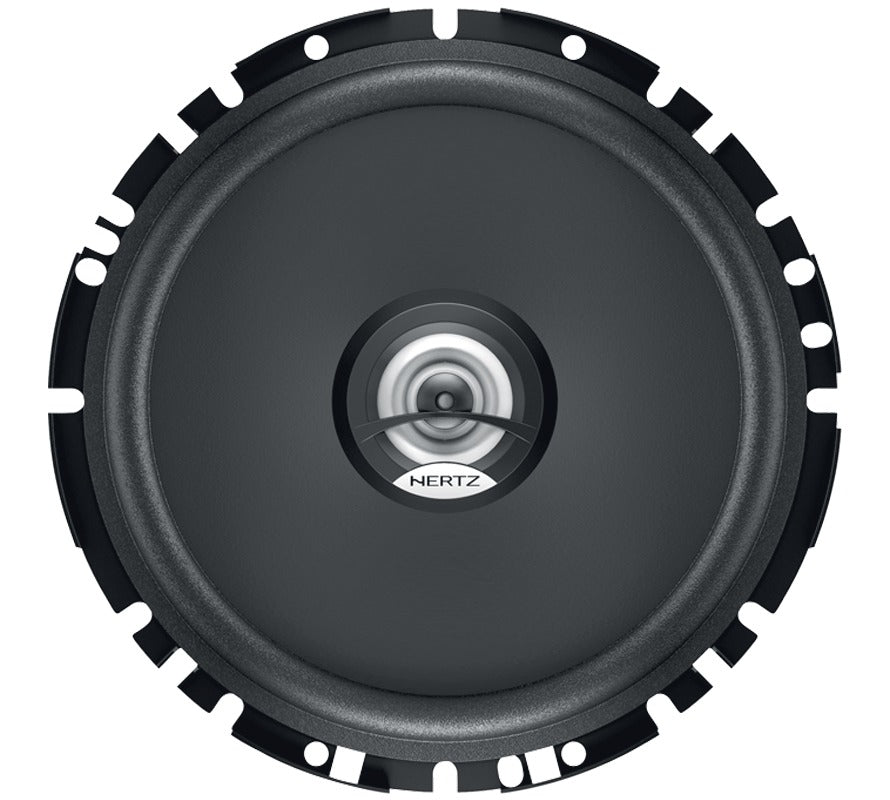

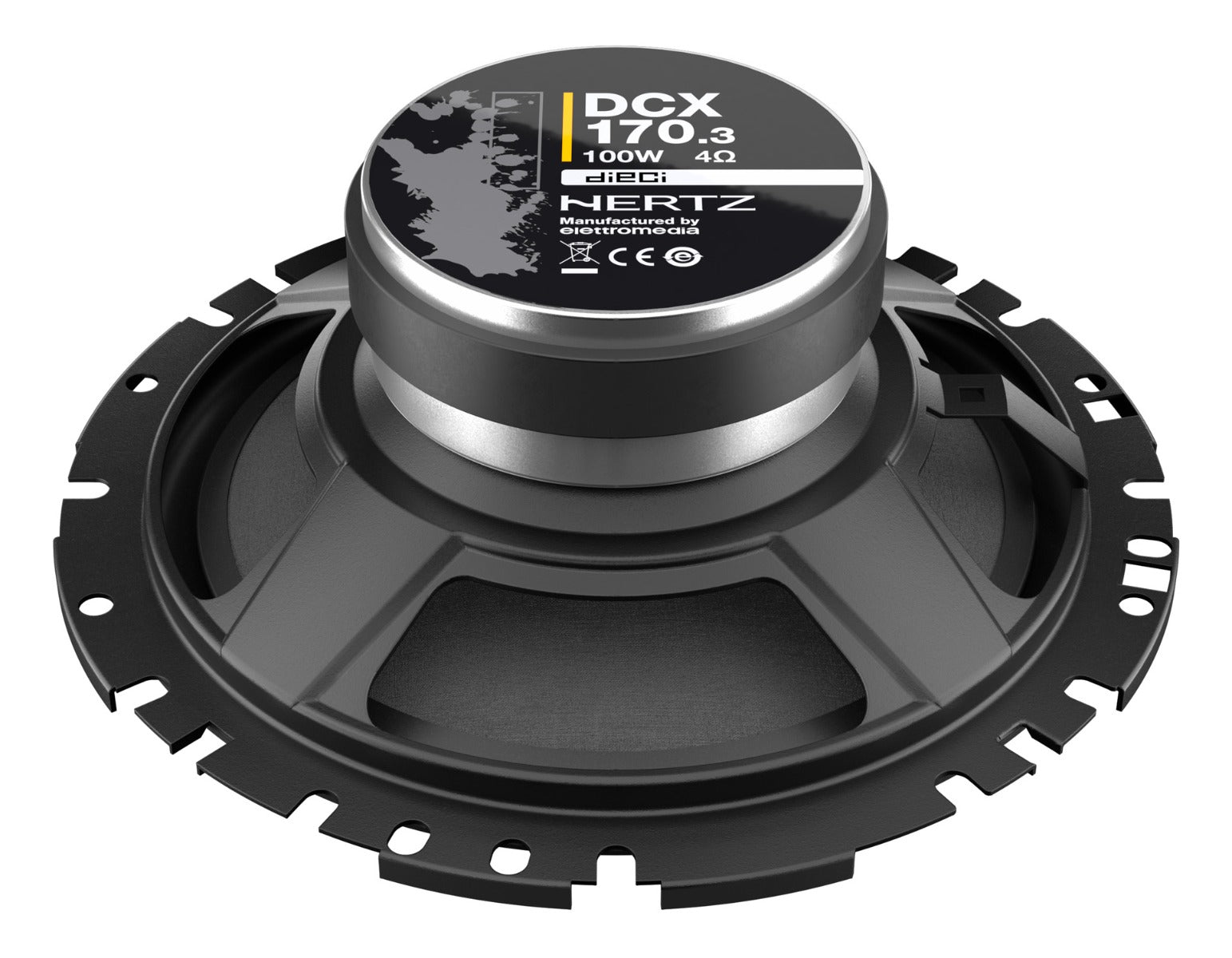

With its 51 mm (2,0 in.) maximum depth Hertz DCX 170.3 is a “flat” model optimized for installation in a vehicle’s door and/or other reduced spaces, without giving up on acoustic reproduction quality. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround, a copper voice coil wound on a Conex former and painstaking care in its build ensures performance surpassing other components within the same category.

Technical Specs

• Component - Two way coaxial
• Size mm (in.) - 170 (6.7)
• Power Handling - 50W Continuous
• Power Handling - 100W Peak
• Impedance - 4 Ohm
• Depth mm (in.) - 51 (2.0)
• Woofer Voice Coil Ø mm (in.) - 25 (1.0)
• Frequency Response - 60Hz ÷ 21Khz
• Woofer Magnet size D x d x h mm (in.) - 80 x 32 x 10 (3.1 x 1.3 x 0.4)
• Weight of one speaker kg (lb.) - 0,56 (1.23)
• Woofer Magnet - High density flux ferrite
• Tweeter Magnet - Neodymium
• Cone - Water-repellent pressed paper
• Dome - PEI

Electro-acoustic Specs

• D mm - 133
• Re Ohm - 3,6
• Fs Hz - 85
• Vas I  - 11,3
• Mms g - 8,8
• Cms mm/N - 0,4
• BL T*m - 3,7
• Qts - 0,95
• Qes - 1,21
• Qms - 4,39
• Spl dB - 93
