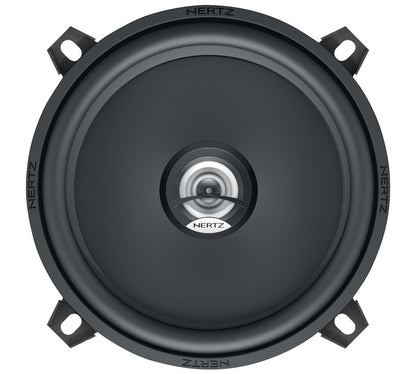

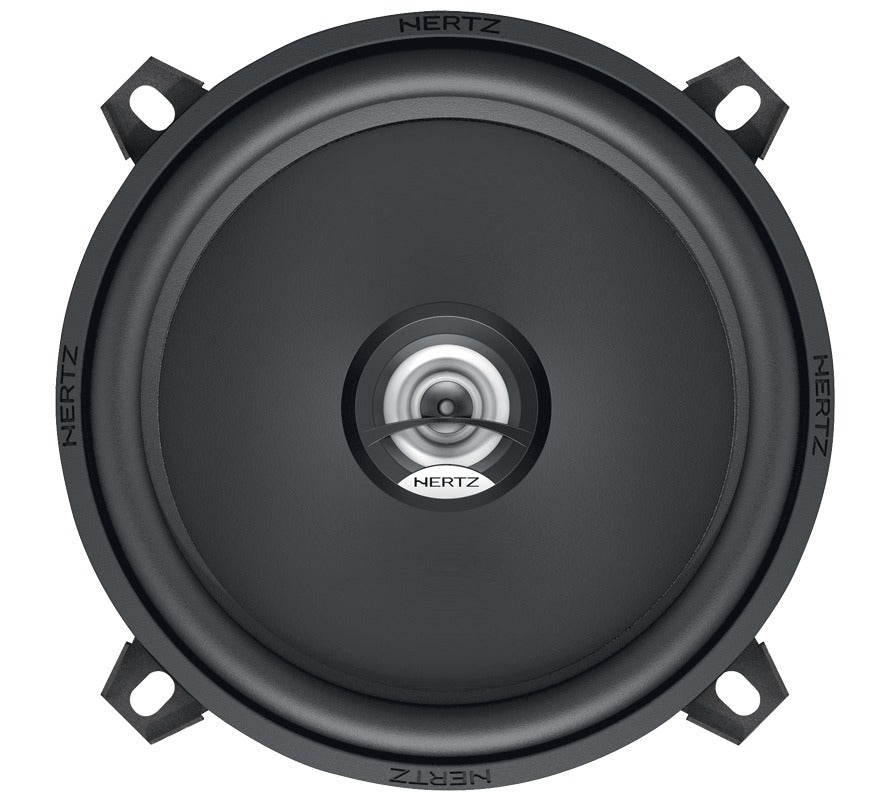

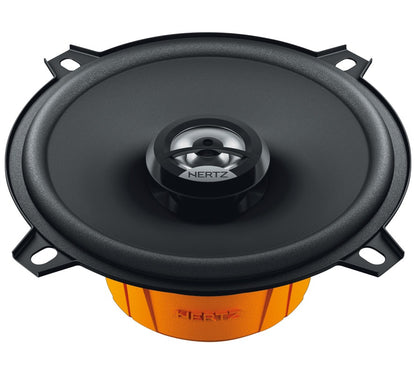

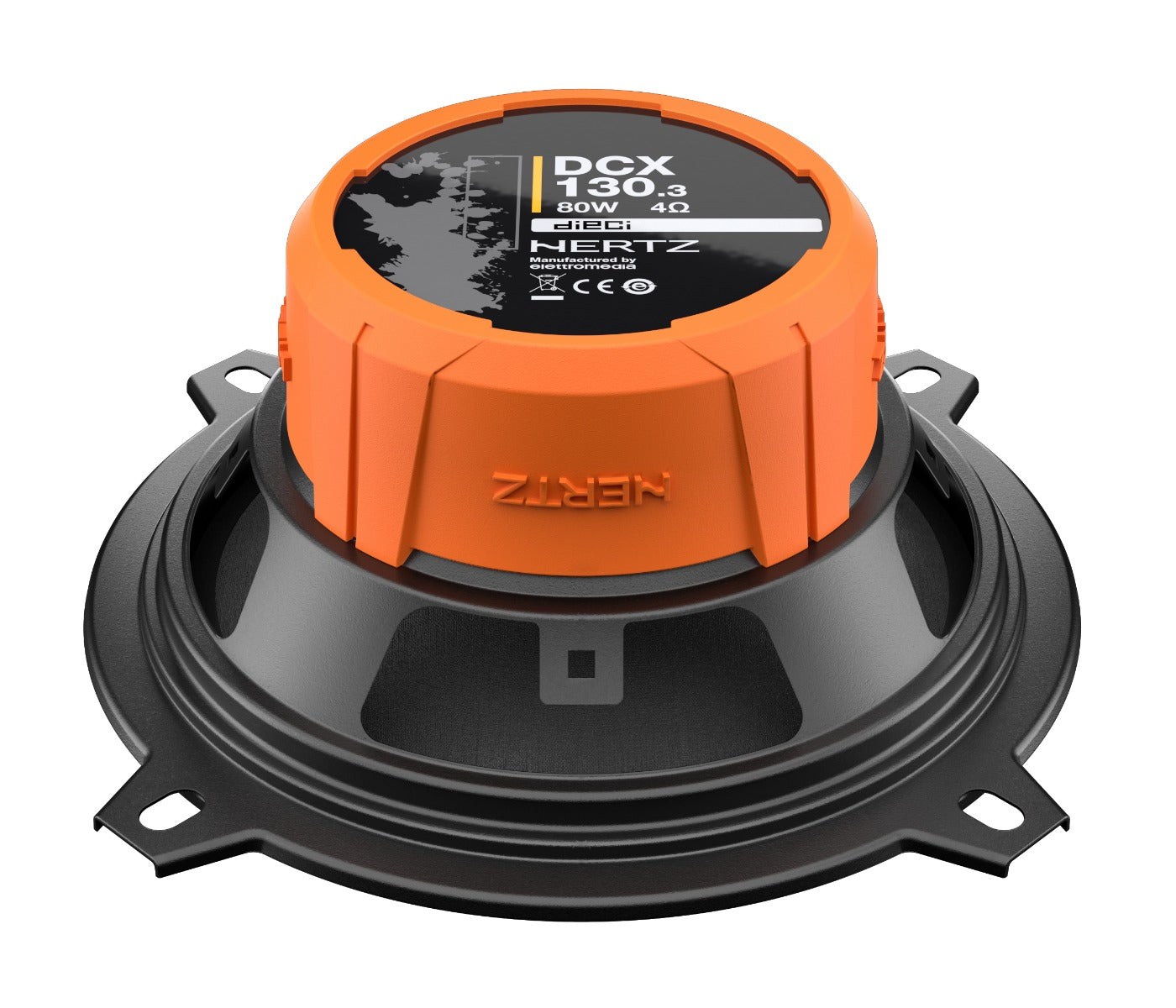

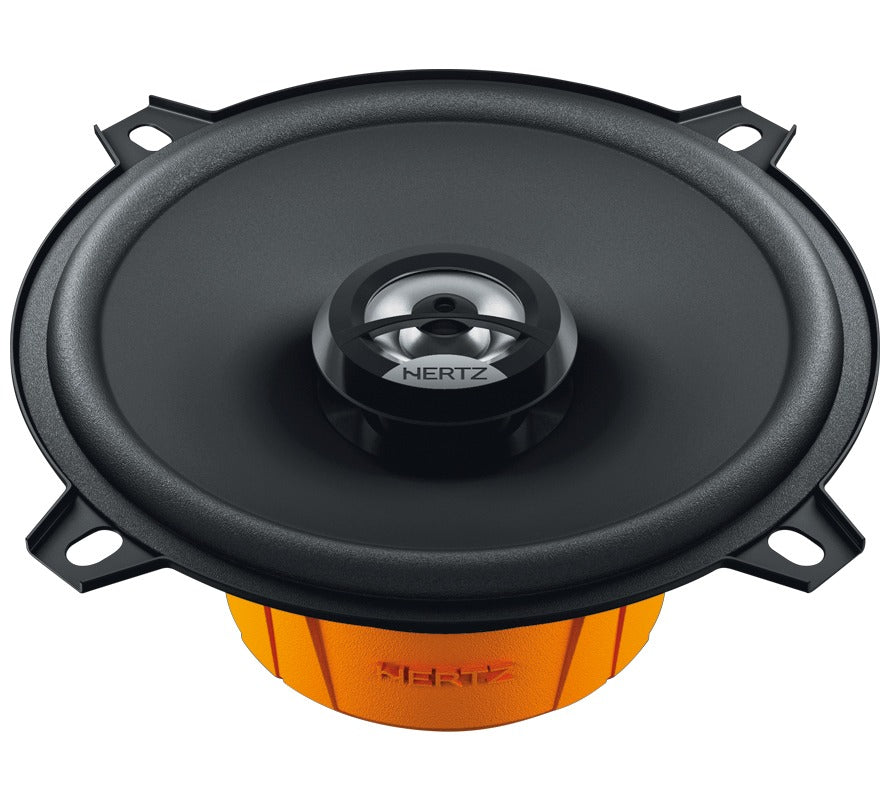

To meet all installation needs, without giving up on Hertz quality and performance, The Dieci DCX 130.3 car audio coaxials were designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.

Technical Specs

• Component - Two way coaxial
• Size mm (in.) - 130 (5)
• Power Handling - 40W Continuous
• Power Handling - 80W Peak
• Impedance - 4 Ohm
• Depth mm (in.) - 59 (2.3)
• Frequency Response - 65Hz ÷ 21Khz
• Woofer Magnet size D x d x h mm (in.) - 70 x 32 x 15 (2.7 x 1.3 x 0.6)
• Weight of one speaker kg (lb.) - 0,56 (1.23)
• Woofer Magnet - High density flux ferrite
• Tweeter Magnet - Neodymium
• Cone - Water-repellent pressed paper
• Dome - PEI

Electro-acoustic Specs

• D mm - 112
• Re Ohm - 3,3
• Fs Hz - 82
• Vas I - 7
• Mms g - 7,4
• Cms mm/N - 0,51
• BL T*m - 3,8
• Qts - 0,76
• Qes - 0,93
• Qms - 4,3
• Spl dB - 93
