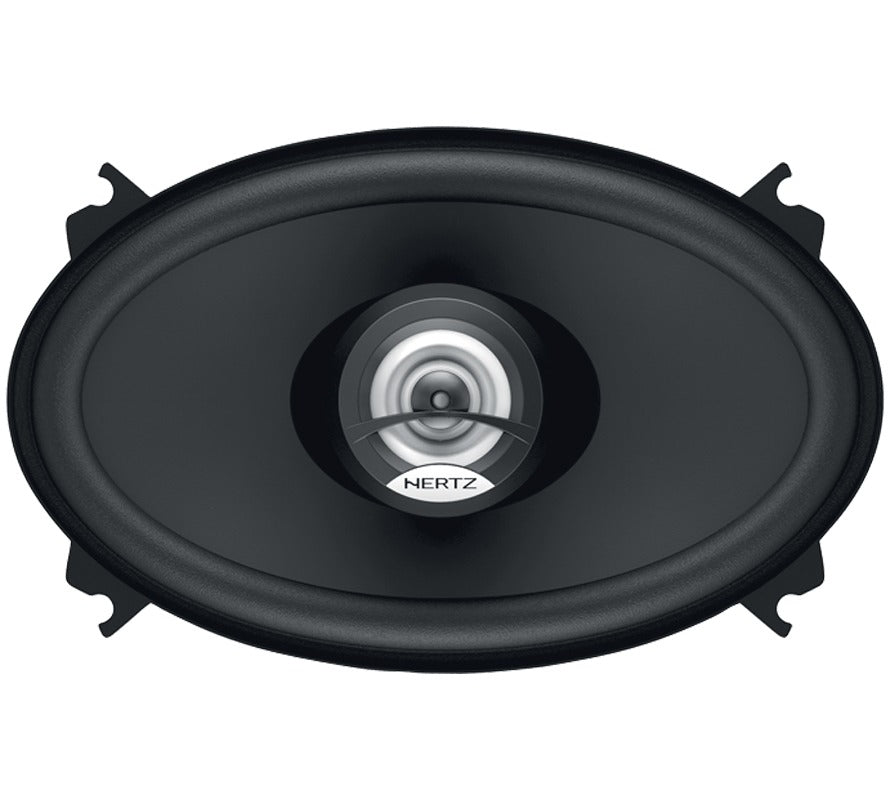

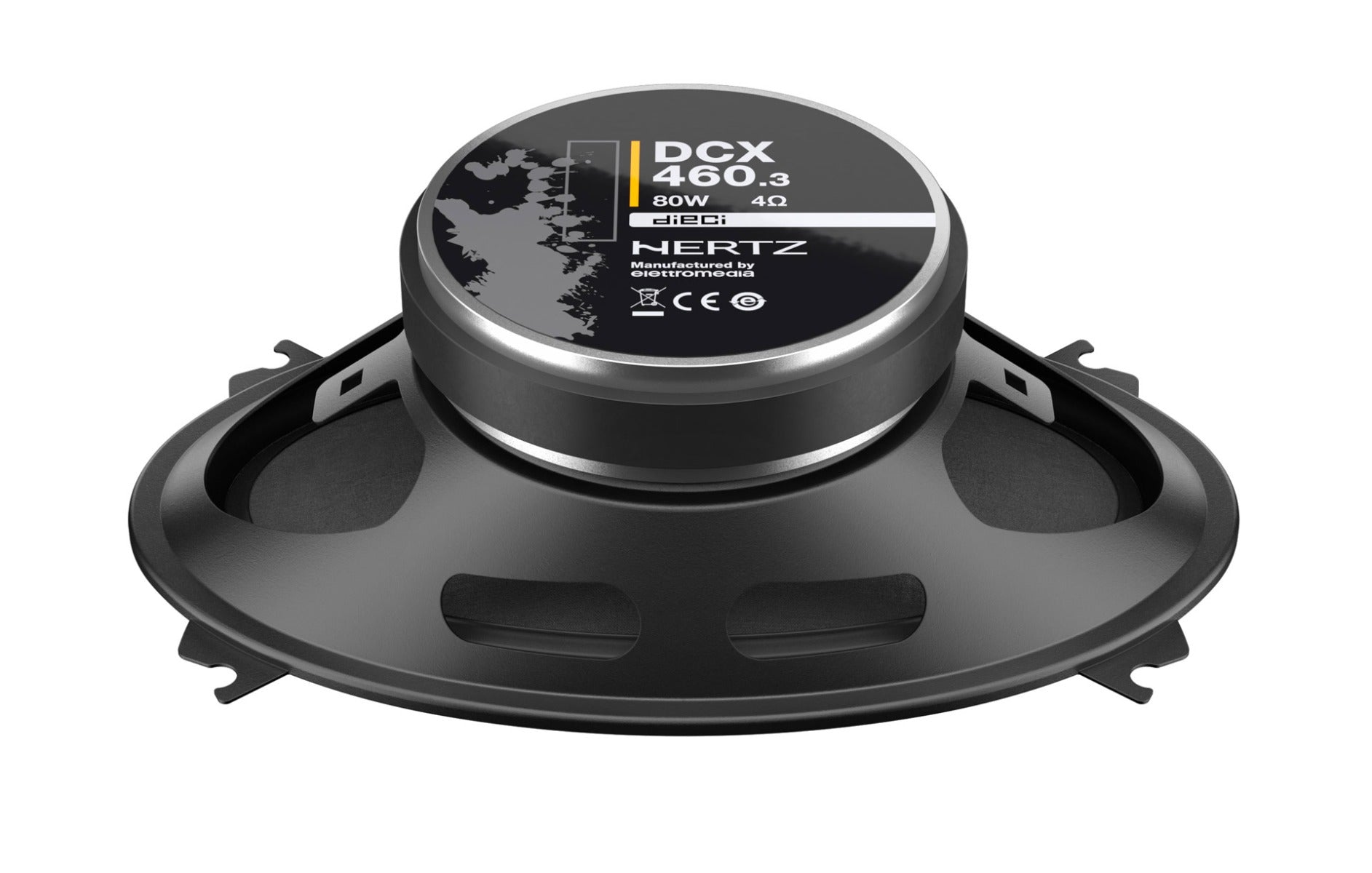

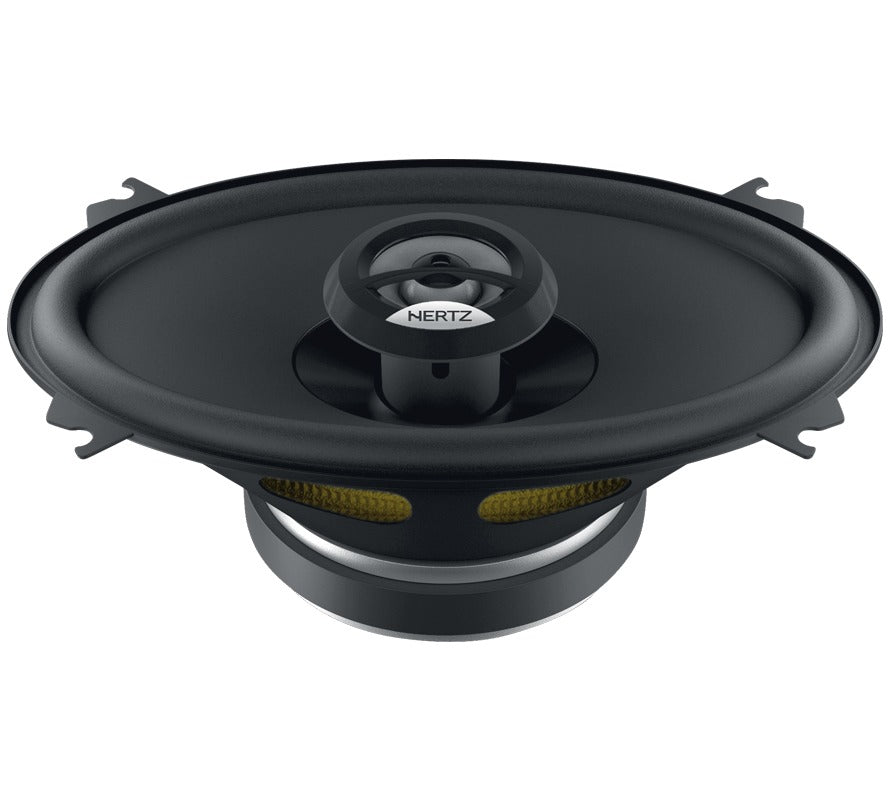

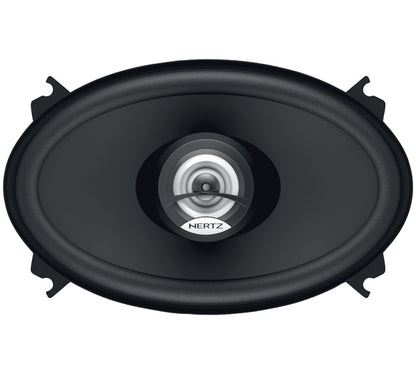

The Hertz DCX 460.3 features a neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a copper mobile voice coil wound on conex former. This 2-way coax speaker is designed to satisfy specific installation and listening needs. An extremely light, yet stiff structure ensures linear frequency response and a high sensitivity level.

Technical Specs

• Component - Two way coaxial
• Size mm (in.) - (4 x 6)
• Power Handling - 40W Continuous
• Power Handling - 80W Peak
• Impedance - 4 Ohm
• Depth mm (in.) - 53 (2.1)
• Woofer Voice Coil Ø mm (in.) - 25 (1.0)
• Frequency Response - 65Hz ÷ 21Khz
• Woofer Magnet size D x d x h mm (in.) - 80 x 32 x 10 (3.1 x 1.3 x 0.4)
• Weight of one speaker kg (lb.) - 0,58 (1.28)
• Woofer Magnet - High density flux ferrite
• Tweeter Magnet - Neodymium
• Cone - Water-repellent pressed paper
• Dome - PEI

Electro-acoustic Specs

• D mm - 103
• Re Ohm - 3,3
• Fs Hz - 90
• Vas I - 6,2
• Mms g - 6
• Cms mm/N - 0,41
• BL T*m - 3,8
• Qts - 0,79
• Qes - 0,92
• Qms - 5,20
• Spl dB - 93
