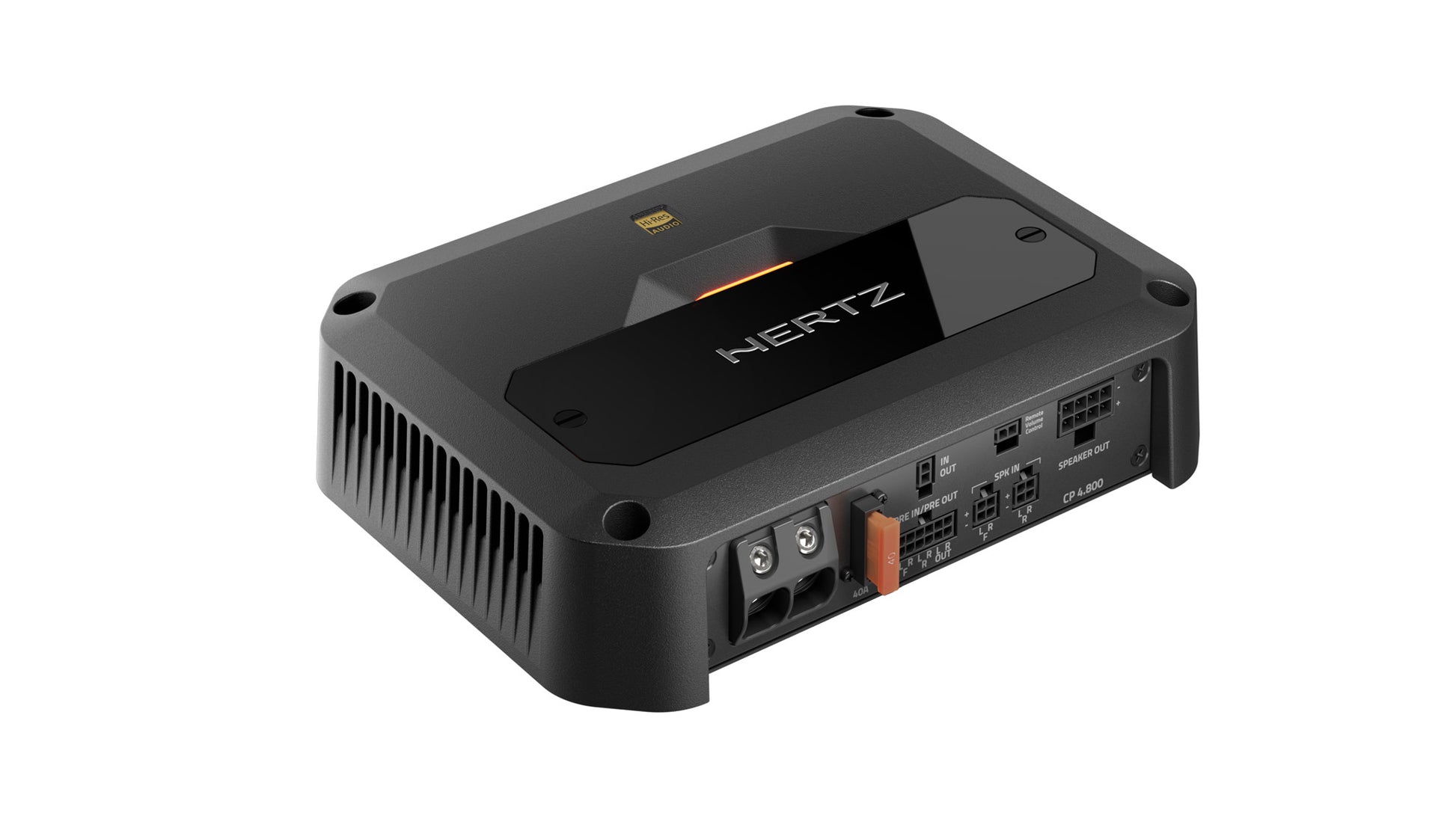

Raise your sound quality bar with the Hertz CENTO POWER CP 4.800, featuring Hi-Res Audio certification for a frequency response from 10 Hz to 41 kHz, delivering sound quality that captures every nuance of your music

General Specs

• Channels - 4 - 3 - 2
• Amp class - D

POWER SUPPLY

• Nominal power supply voltage (fuse) - 11 ÷ 15 VDC (1 x 40 A)
• Operating power supply voltage - 9 ÷ 18 VDC
• Idling current - 1.15 A
• Standby current draw - 4.2 uA
• Consumption, MIN load impedance (Max Musical Power) - 32 A
• Remote IN - 4 ÷ 17 VDC (1 mA)
• ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) - 1.5 VDC
• Efficiency - 85%

AMPLIFIER STAGE

• Distortion - THD @ 100 Hz, 70% Rated Power - 0,02 %
• Damping factor @ 1 kHz, 1W - 100
• Bandwidth @ -3 dB - 10 Hz ÷ 47k Hz
• S/N ratio (A-weighted @ 1 V Input) - 101 dBA

Minimum load impedance

• @ 4 Ch: 2 Ω
• @ 3 Ch: 2 Ω + 2 Ω + 4 Ω
• @ 2 Ch: 4 Ω
• Adjustable Crossovers - yes

Output Power

• Output power (RMS) @ 1% THD:
• 4Ch @ 4Ω - 110 W x 4
• 4Ch @ 2Ω - 190 W x 4
• 3Ch @ 4Ω / 4Ω - 100 W x 2 + 400 W x 1
• 3Ch @ 2Ω / 4Ω - 190 W x 2 + 380 W x 1
• 2Ch @ 4Ω - 380 W x 2 (4Ω)
• Total Power - 760 W

INPUTS / FILTERS

• Inputs - Pre-In / Speaker-In
• Pre Out - Full Range (Front)
• Pre-In sensitivity - 0.32 ÷ 8 VRMS
• Speaker-In sensitivity - 1.6 ÷ 40 VRMS
• Front Ch Hi-Pass - Full / 50-4000Hz 12dB/Oct.
• Front Ch Lo-Pass - Full / 50-4000Hz 12dB/Oct.
• Rear Ch Hi-Pass - Full / 50-4000Hz 12dB/Oct.
• Rear Ch Lo-Pass - Full / 50-4000Hz 12dB/Oct.
• Bass Boost 50Hz - 0 ÷ 9 dB
• Sub Remote Volume Control - -20 ÷ 6 dB (Active on Rear Ch with LPF ON)
• Remote Bass Controller - Optional HRC 02
