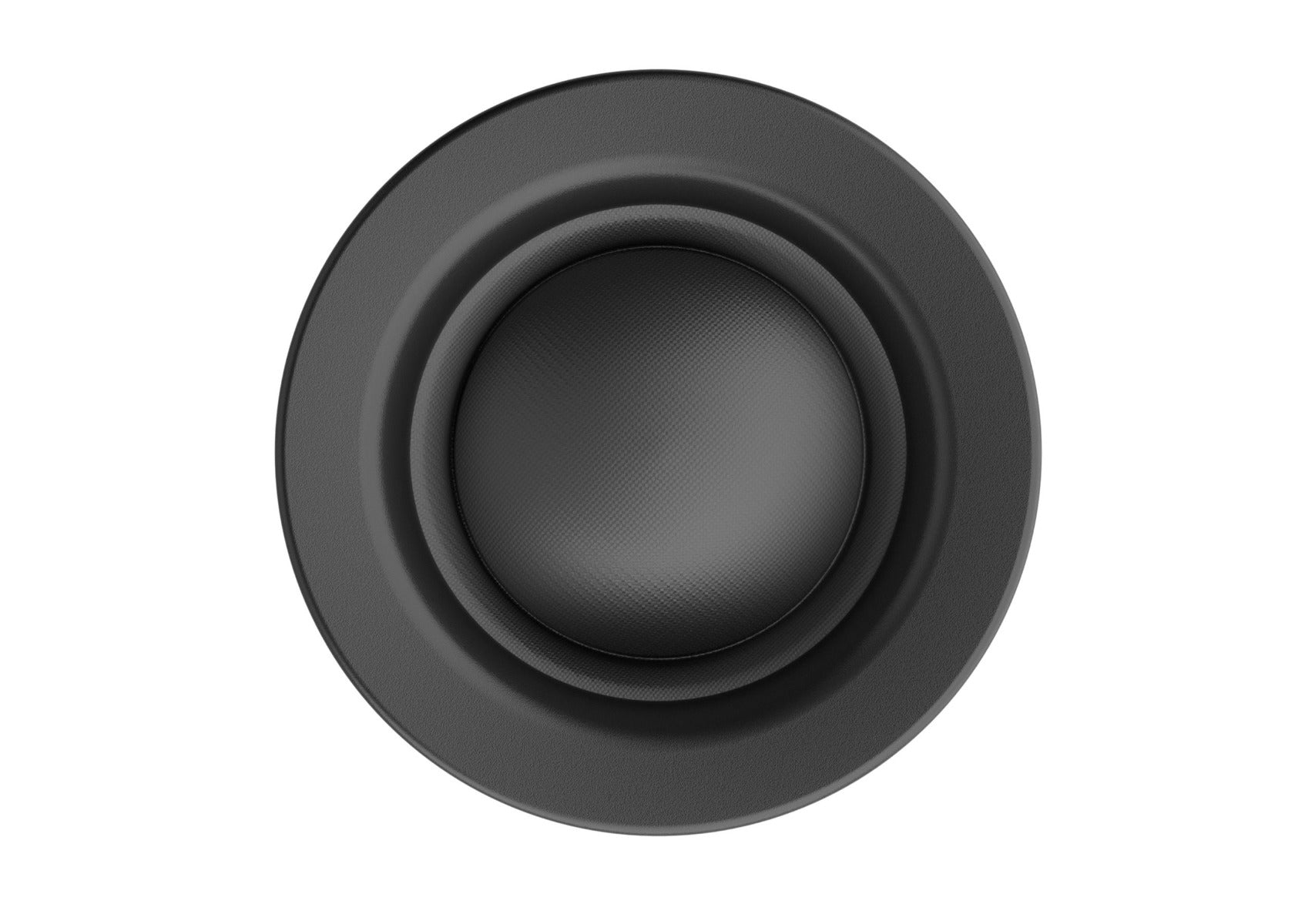

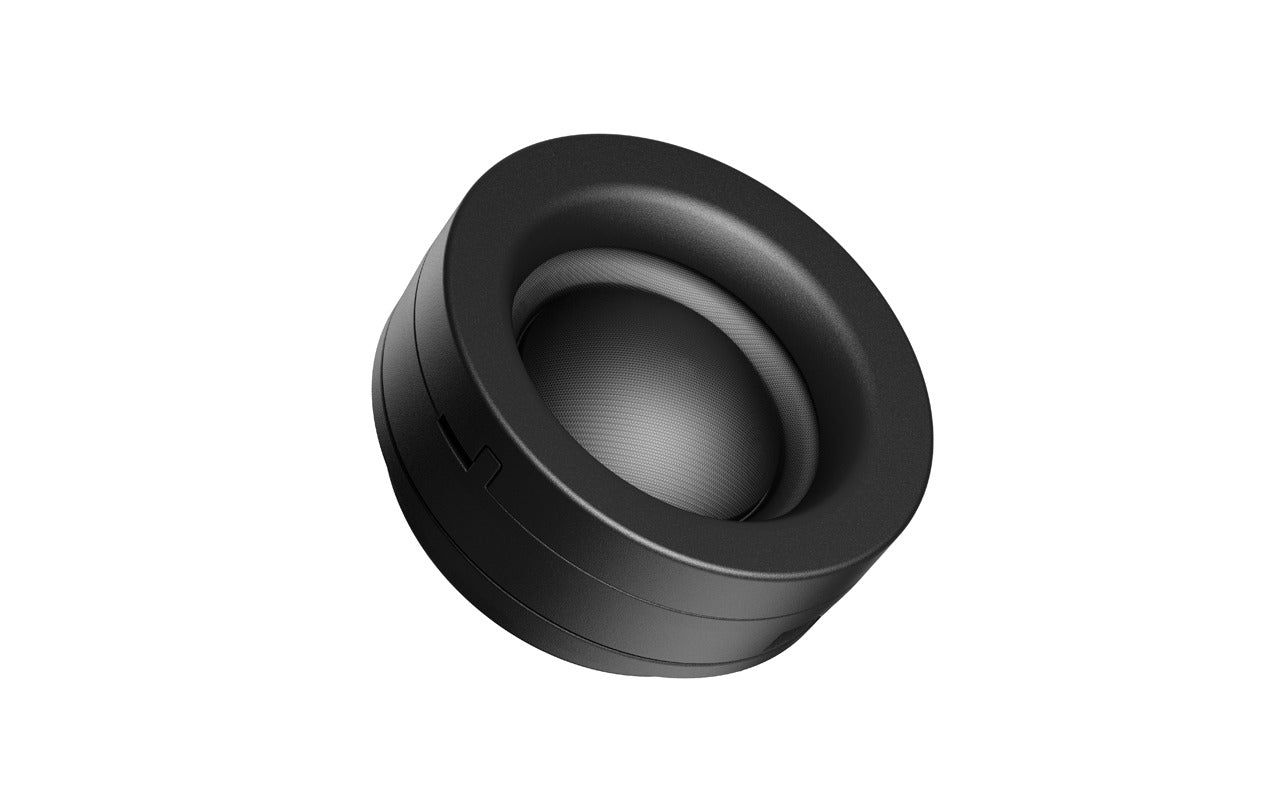

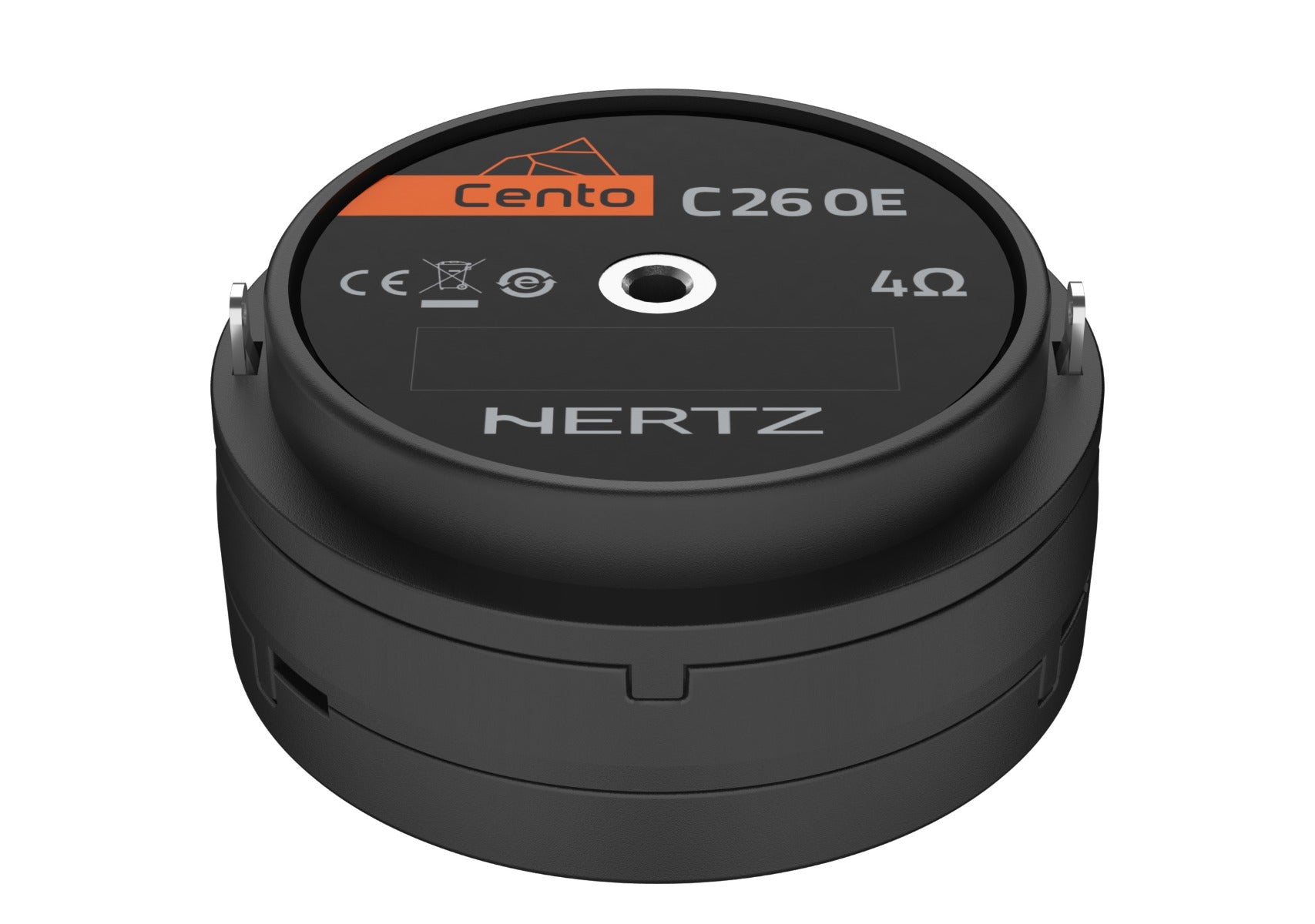

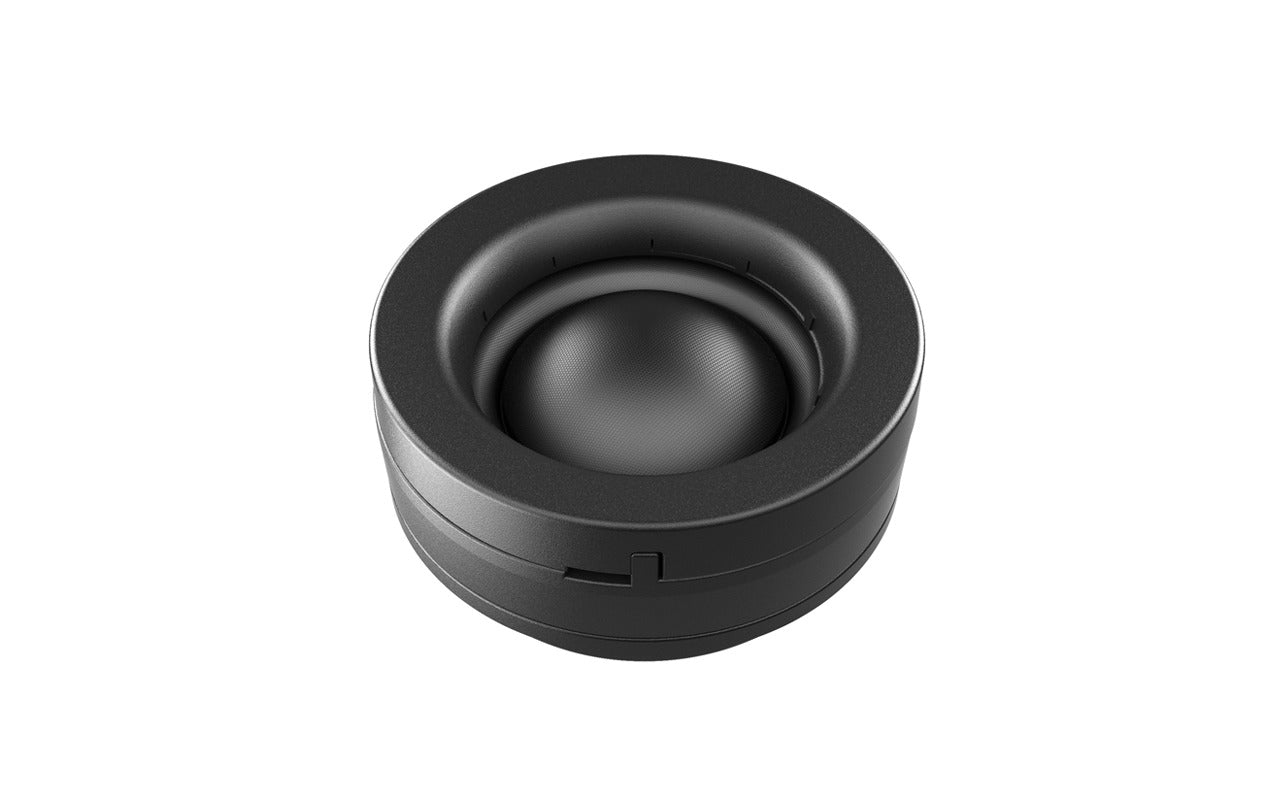

The Hertz C 26 OE tweeter features a FEM (Finite Element Method) geometry designed to maximize performances when the tweeter is installed in the OEM placement. The C 26 OE includes a provided cable with built-in 6 dB/Oct. crossover designed to save space in an OEM upgrade scenario and mounting accessories.

Technical Specs

• Component - Tweeter

• Size mm (in.) - 26 (1)

• Power Handling - Peak W - 120

• Power Handling - Peak Note - (Hi-Pass filtered @ 2,5kHz - 12 dB Oct.)

• Impedance Ohm - 4

• Voice Coil Ø - 20 (0.8)

• Frequency Response Hz - 1.8k ÷ 22.5k

• Magnet size D x d x h mm (in.) - 19 x 0 x 3 (0.75 x 0 x 0.12)

• Weight of one speaker kg (lb.) - 0,04 (0.08)

• Magnet - Neodymium

• Dome - Tetolon

Electro-Acoustic Specs

• D mm - 26

• Re Ohm - 3,7

• Fs Hz - 1500

• Le mH - 0,02

• Vas I

• Mms g - 0,17

• Cms mm/N - 0,7

• BL T*m - 1,3

• Qts - 1,6

• Qes - 3,5

• Qms - 2,9

• Spl dB - 92
