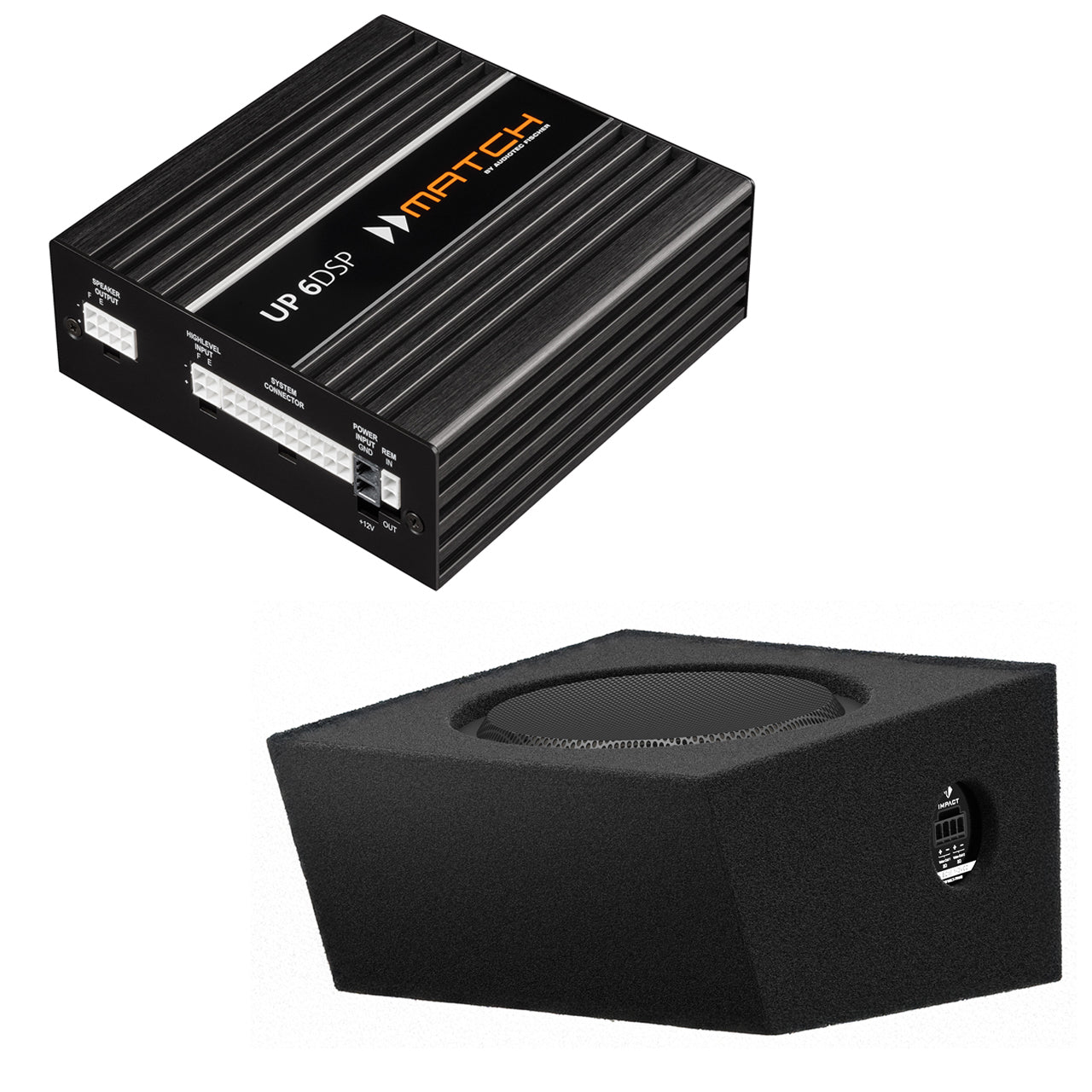

The HELIX IK EC10.1-DVC2 – VW MULTI-TRANS combines integration-intelligence with powerful low-frequency output. Specially designed for seamless integration into the passenger-side seat console of Volkswagen T6.1, T6, and T5. This subwoofer comes paired with the Match UP 6DSP to provide a package capable of greatness for the transporter range.

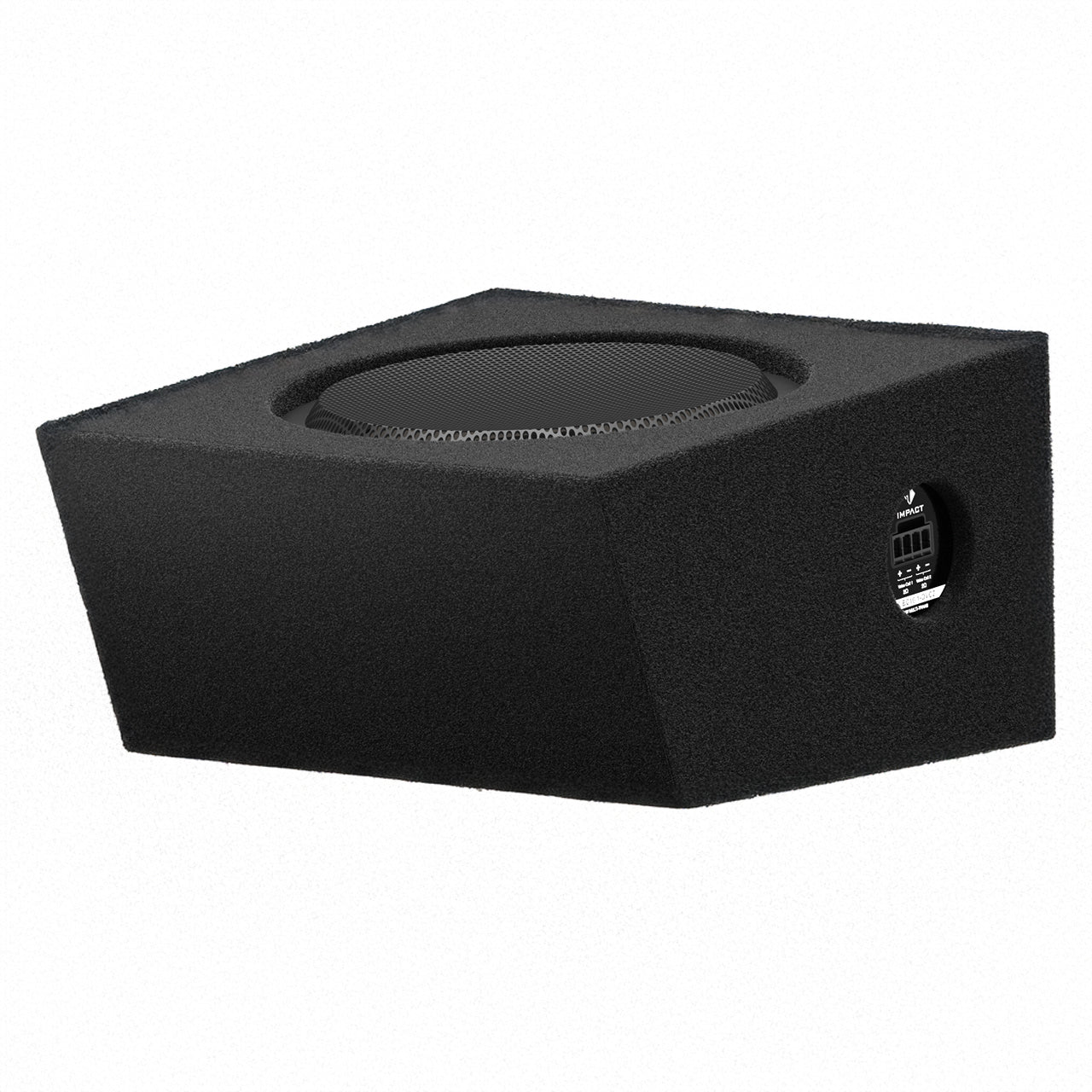

Helix IK EC10.1-DVC2 Specification

• Power handling RMS - 300 Watts
• Recommended amplifier power RMS - 150 - 300 Watts
• Impedance - 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
• Max. linear excursion - Xmax +/- 6.0 mm
• Sensitivity - SPL 90 dB @ 2.83V / 1m - 87 dB @ 1W / 1m
• Dimensions (H x W x D) - 193 x 350 x 330 mm / 7.6 x 13.5 x 13"

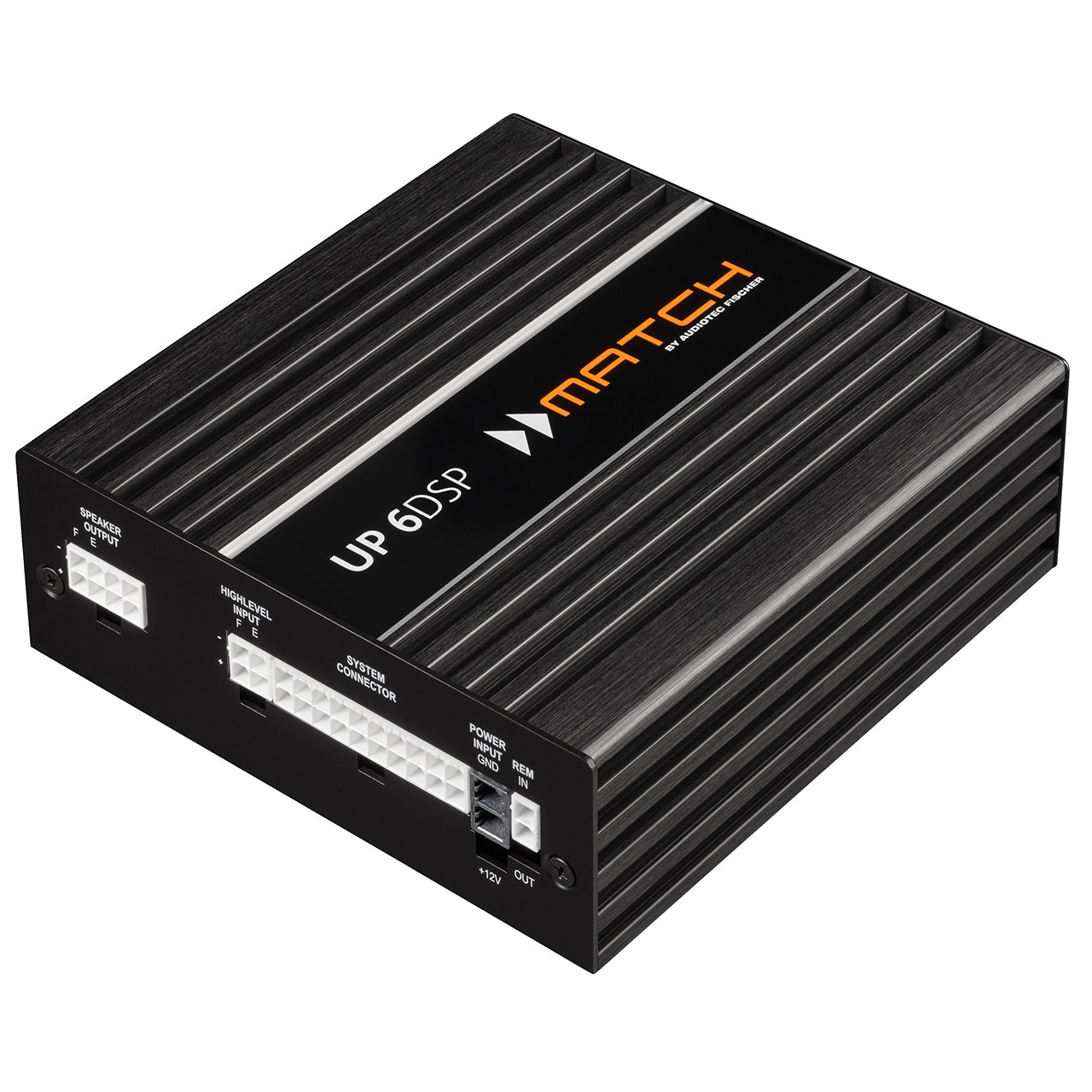

Match UP 6DSP Specification

• Output power RMS / Max:
  - @ 4 Ohms - Channels A - D: 4 x 65 Watts (min. 3 Ohms)
  - Subwoofer output @ 4 Ohms - channel E - F: 2 x 90 Watts
  - Subwoofer output @ 2 Ohms - Channel E - F: 2 x 160 Watts
• Amplifier technology - Class GD
• Inputs:
  -6 x Highlevel speaker input
  -1 x Optical SPDIF (12 - 96 kHz)
  -1 x MEC
  -1 x Remote In
• Input sensitivity - 2.8 - 11 Volts
• Input impedance highlevel - 9 - 33 Ohms with ADEP.3
• Outputs:
  -6 x Speaker output
  -1 x RCA / Cinch
  -1 x Remote Out
• Output voltage RCA / Cinch - 3 Volts RMS
• Frequency response - 10 Hz - 22,000 Hz
• DSP resolution - 64 Bit
• DSP power - 295 MHz (1.2 billion MAC operations/second)
• Sampling rate - 48 kHz
• DSP type - Audio signal processor
