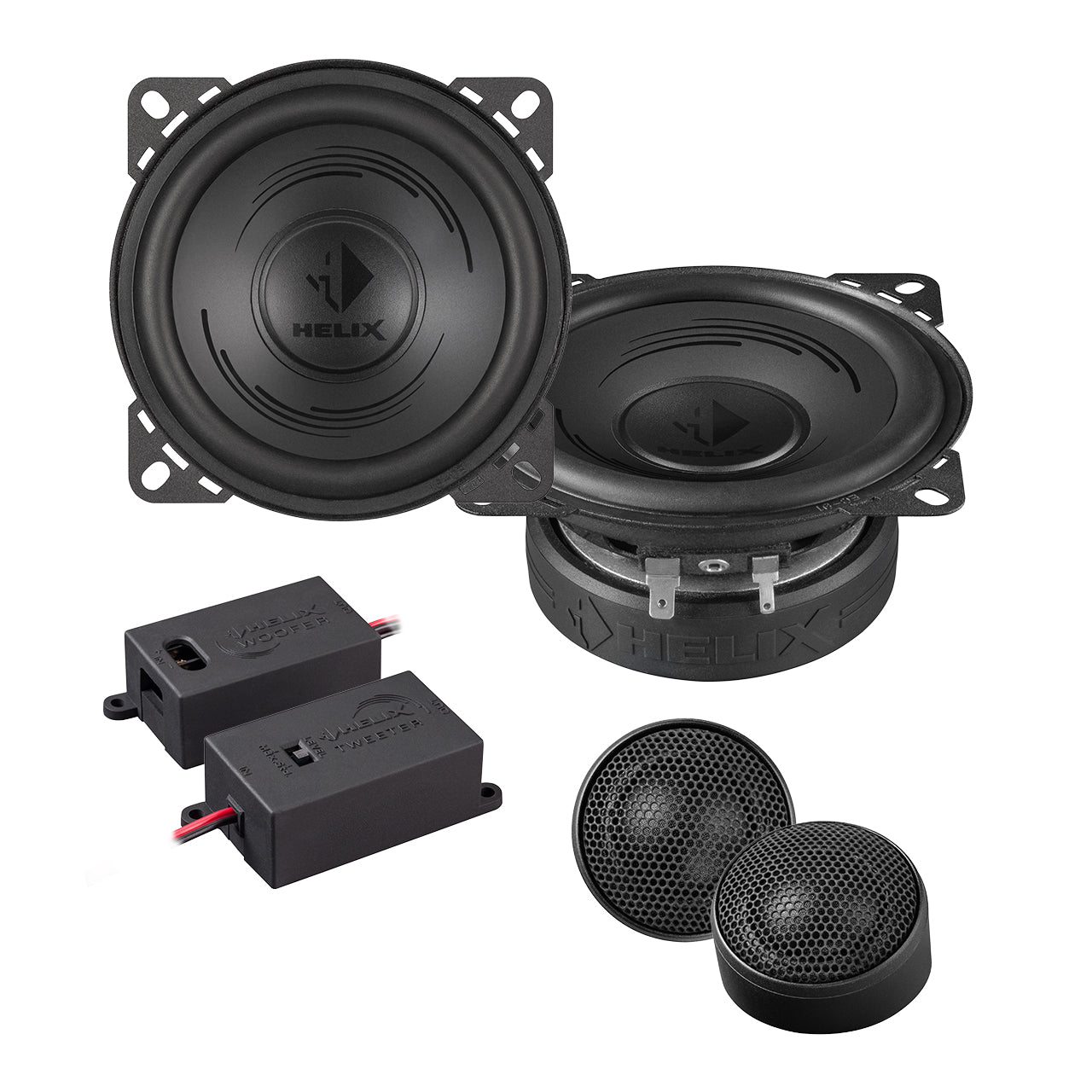

HELIX PF K100.2

Features

• High sound quality with deep bass, clear mids and detailed highs
• Powerful speaker system with high efficiency thanks to 3 Ohms technology
• Low installation depths for trouble-free installation in almost all vehicles
• Elegant HELIX design with black matt cone finish and black shiny Space Line styling

Tweeter

• 0.75” / 20 mm silk dome tweeter with neodymium magnet for brilliant and clear treble response even at high levels
• Intelligent, ultra-compact tweeter design and various mounting pods to fit a wide variety of installation requirements
• Removeable grille for easy integration behind factory grilles in the vehicle´s original mounting locations

Woofer

• 4" / 100 mm woofer with rigid cone made of injected polypropylene with embedded carbon fibres provides essential stiffness with a high inner damping
• Powerful magnet system with optimum control for powerful and clear depths
• Individual HELIX basket with additional ventilation holes for better voice coil cooling and high-power handling

Flex-Crossover

• Separate, two-parted crossover for versatile connection options – well suited for installations in vehicles with separate mounting positions of the tweeter and woofer
• Extensively fine-tuned crossover with 12 dB slope for the tweeter and 6 dB for the woofer
• 2-stage tweeter level adjustment with integrated tweeter protection for perfect listening experience

Technical data

• Power RMS / Max. 40 / 80 Watts
• Frequency response 100 Hz - 22,000 Hz
• Impedance 3 Ω
• Sensitivity
• 90.0 dB @ 2.83V / 1m
• 86.0 dB @ 1W / 1m

Cone material

• TW: Silk dome
• W: Injected polypropylene with embedded carbon fibres
• Crossover
• Separate, 6/12 dB slope and tweeter protection

Outer diameter

• TW: - 33.1 mm / 1.30"
• - OE mount: 36 mm / 1.42”
• - flush mount: 42 mm / 1.65”
• - angle mount: 36 mm / 1.42”
• W: 102.4 mm / 4.03"

Installation diameter

• TW: - 33.1 mm / 1.30"
• - OE mount: 36 mm / 1.42”
• - flush mount: 36 mm / 1.42”
• - angle mount: –
• W: 93 mm / 3.66"

Installation depth

• TW:  - 9.8 mm / 0.38"
•  - OE mount: 16,8 mm / 0.66”
•  - flush mount: 11 mm / 0.43”
•  - angle mount: –
• W: 45 mm / 1.77"
•  Dimensions crossovers 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95”

What’s in the box

• 2 x Tweeter HELIX PF T20-S
• 2 x Woofer HELIX PF W100
• 2 x Two-part Flex-Crossover
• 6 x Tweeter mounting accessories
• 1 x Mounting material
• 1 x Instruction manual
• 1 x Mounting pattern
