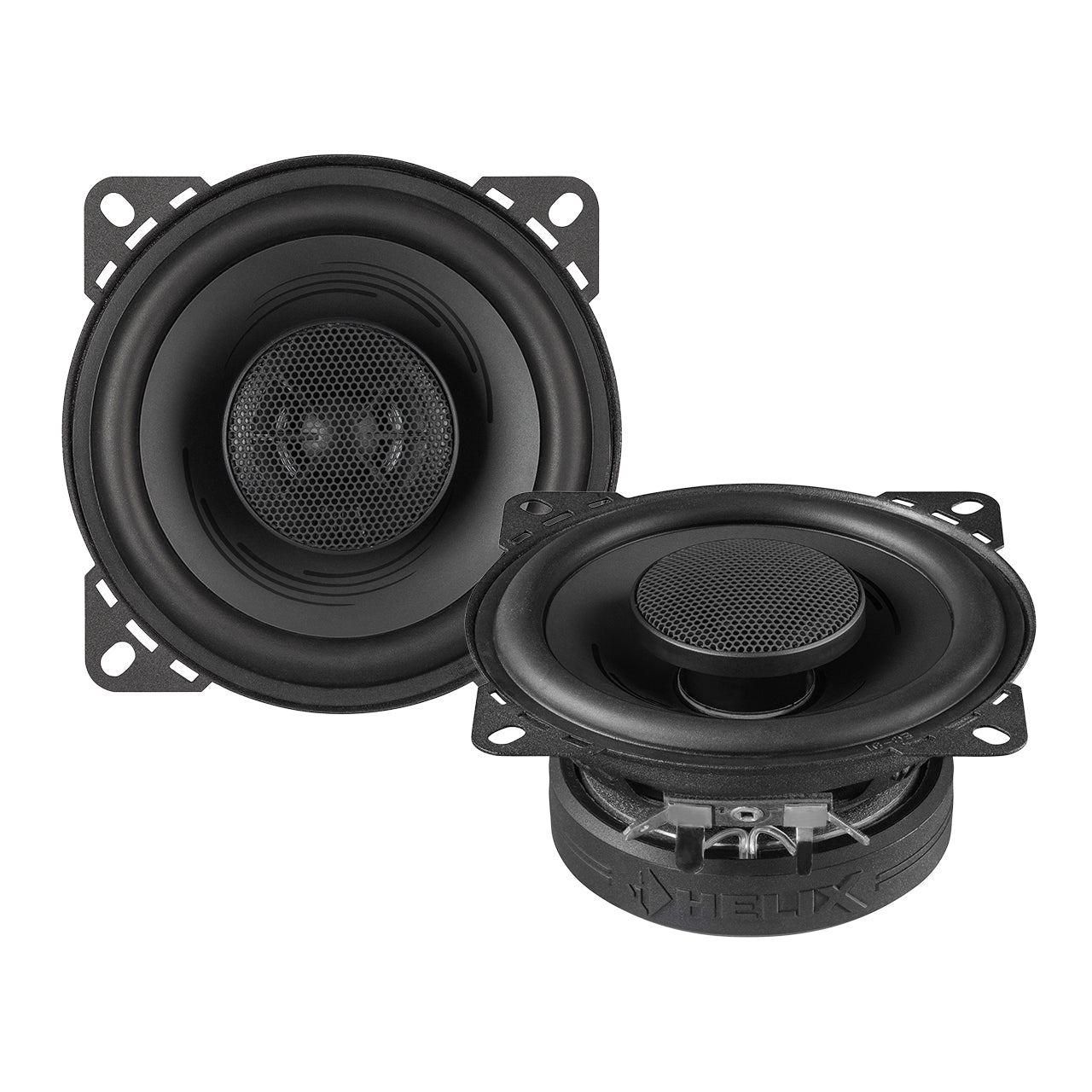

HELIX PF C100.2 Pure F-Series 10 cm 4" 2-Way Coaxial System
HELIX PF C100.2 Pure F-Series 10 cm 4" 2-Way Coaxial System
Enter the HELIX sound world with our PURE F speaker series. The powerful F-Series gets the maximum power out of your amplifier thanks to its 3 Ohms technology. In combination with the exceptional sound performance with powerful bass, clear mids and detailed highs, an exciting sound experience is bound to occur.
*Special Order Item
Product Description
HELIX PF C100.2
Features
- High sound quality with deep bass, clear mids and detailed highs
- Powerful speaker system with high efficiency thanks to 3 Ohms technology
- Low installation depths for trouble-free installation in almost all vehicles
- Elegant HELIX design with black matt cone finish and black shiny Space Line styling
Tweeter
- 0.52” / 13 mm mylar dome and neodymium magnet for brilliant and clear treble response
Woofer
- 4” / 100 mm woofer with rigid cone made of injected polypropylene with embedded carbon fibres provides essential stiffness with a high inner damping
- Powerful magnet system with optimum control for powerful and clear depths
- Individual HELIX basket with additional ventilation holes for better voice coil cooling and high-power handling
Crossover
- Integrated with 6 dB slope
Technical data
- Power RMS / Max. 40 / 80 Watts
- Frequency response 100 Hz - 22,000 Hz
- Impedance 3 Ω
- Sensitivity 90.0 dB @ 2.83V / 1m
- 86.0 dB @ 1W / 1m
- Cone material TW: Mylar
- W: Injected polypropylene with embedded carbon fibres
- Crossover Integrated, 6 dB slope
- Outer diameter 102.4 mm / 4.03"
- Installation diameter 93 mm / 3.66"
- Installation depth 43 mm / 1.70"
What’s in the box
- 2 x Coaxial speaker HELIX PF C100.2
- 1 x Mounting material
- 1 x Instruction manual
- 1 x Mounting pattern
