HELIX K 10E.2

Compact in size, but really powerful in sound. The K series housing subwoofers show no mercy when it comes to delighting you with powerful beats.

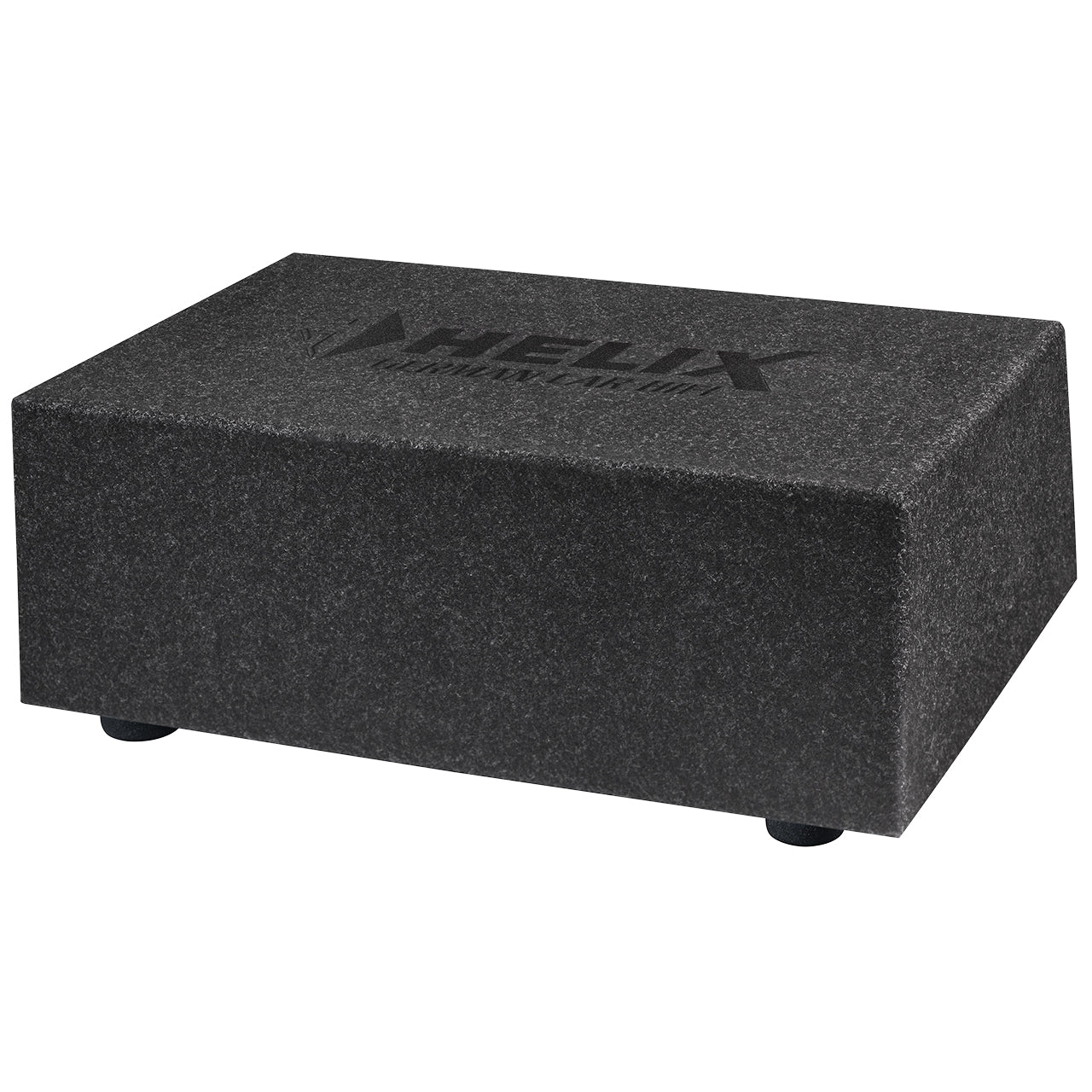

Clever downfire housing construction

So that both fans of maximum sound pressure and demanding music lovers get their money's worth, these housing subwoofers come with various technical refinements. The design of the downfire subwoofer is designed to use the floor as a reflection surface. It also allows for a flatter design so that it can be stored under the false floor in the trunk to save space.

Technically sophisticated

A tough membrane made of hand-made paper fibres, in conjunction with heavy-duty voice coils, converts the amplifier power into maximum punch effortlessly and without compression effects, without missing the necessary sensitivity.

Flexible connection

The design as a double voice coil woofer offers a lot of flexibility in terms of the choice of amplifier. No matter whether 1 x 4 ohm, 2 x 2 ohm or 1 x 1 ohm impedance - any configuration is possible with these deep bass guarantees.

Features

• 250 mm long-throw woofer with handmade paper cone and double voice coil
• Downfire housing technology for perfect protection of the speaker and ideal bass distribution in the vehicle
• Durable needle felt coating with embroidered HELIX logo

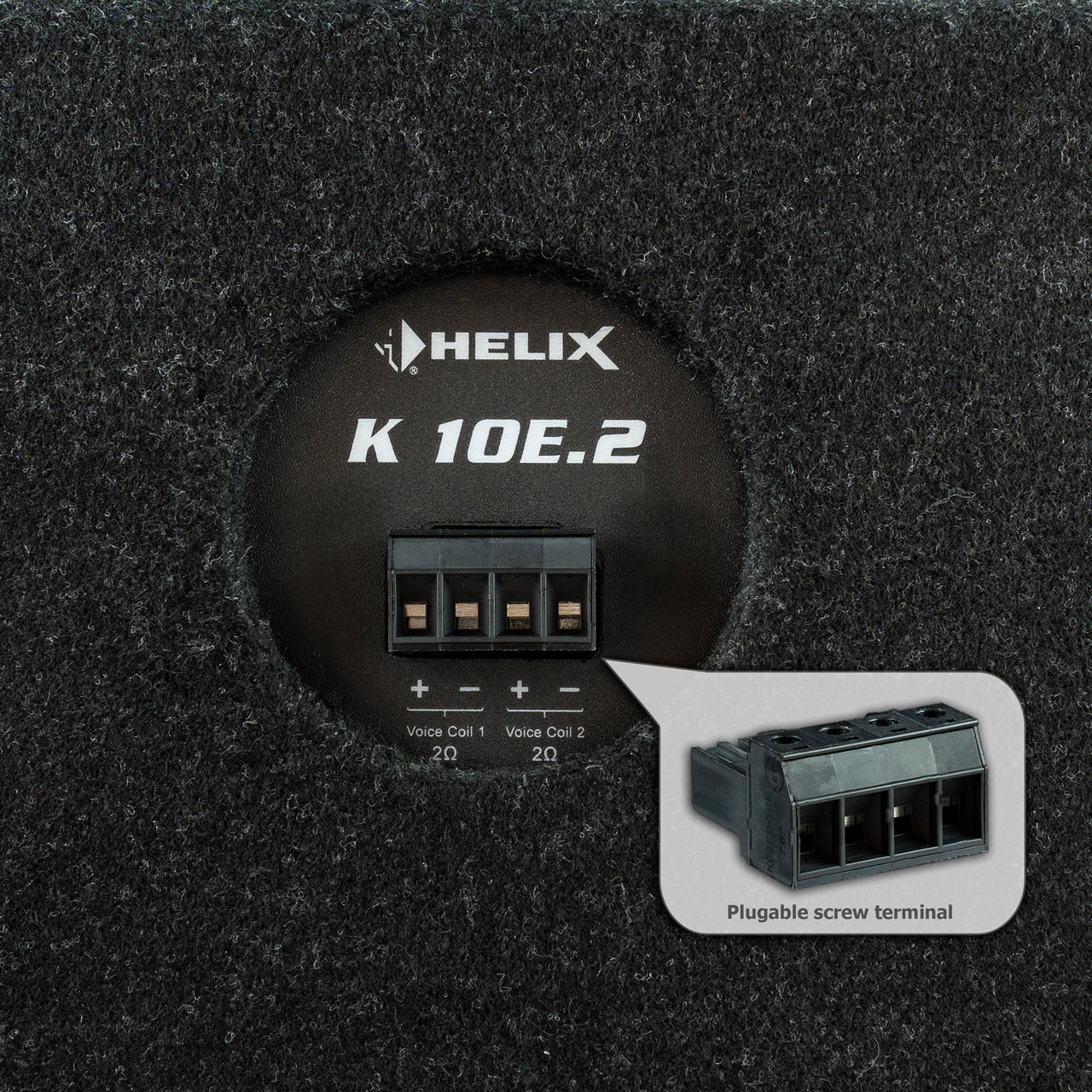

• Pluggable screw terminal allows quick and safe installation and removal
• Voice coil configuration selectable via connection terminal – 2 x 2 ohms, 1 x 4 ohms or 1 x 1 ohms
• Compact housing dimensions

Technical data

• Power RMS / Max. 300 / 600 watts
• impedance e.g 2 x 2Ω / 1 x 4Ω / 1 x 1Ω
• Max. linear diaphragm stroke Xmax +/- 8.0mm
• Tunnel tuning frequency Fb 43Hz
• Efficiency 1 W / 1 m SPL 89dB
• Dimensions (H x W x D) 187x470x375mm
• Recommended "self-define" high-pass filter with 37 Hz cutoff frequency and Q = 1.5;
• Additional EQ filter 115 Hz / Q = 0.7 / -2 dB

What's in the box

• 1 x HELIX K 10E.2 downfire housing subwoofer
• 1 x data sheet
