The smallest HELIX signal processor gets a worthy successor with the DSP MINI MK2. Like its ancestor, this compact DSP is a real technology package. A powerful 64 Bit audio DSP and BurrBrown converters combined with 96 kHz sampling rate and high resolution audio bandwidth up to over 40 kHz provide exceptional sound quality. The MK2 is also at the top level in terms of measured values – a higher maximum output voltage of 6 Volts, significantly increased signal-to-noise ratio and reduced THD ensure the perfect sound.

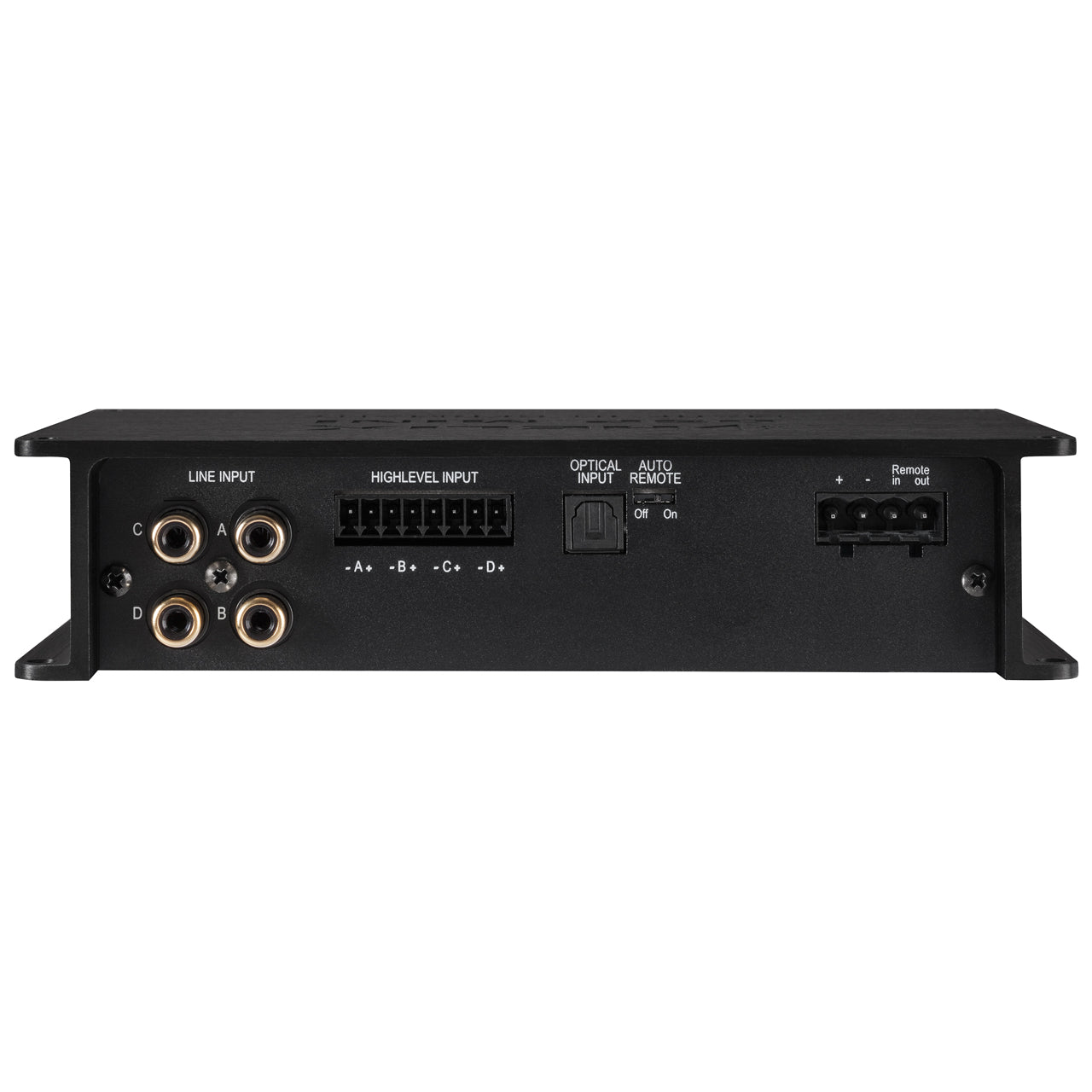

Inputs

• 4 x RCA / Cinch
• 4 x Highlevel speaker input
• 1 x Optical SPDIF (12 - 96 kHz)
• 1 x Remote In

Input sensitivity

• RCA / Cinch 2 - 4 Volts
• Highlevel 5 - 11 Volts

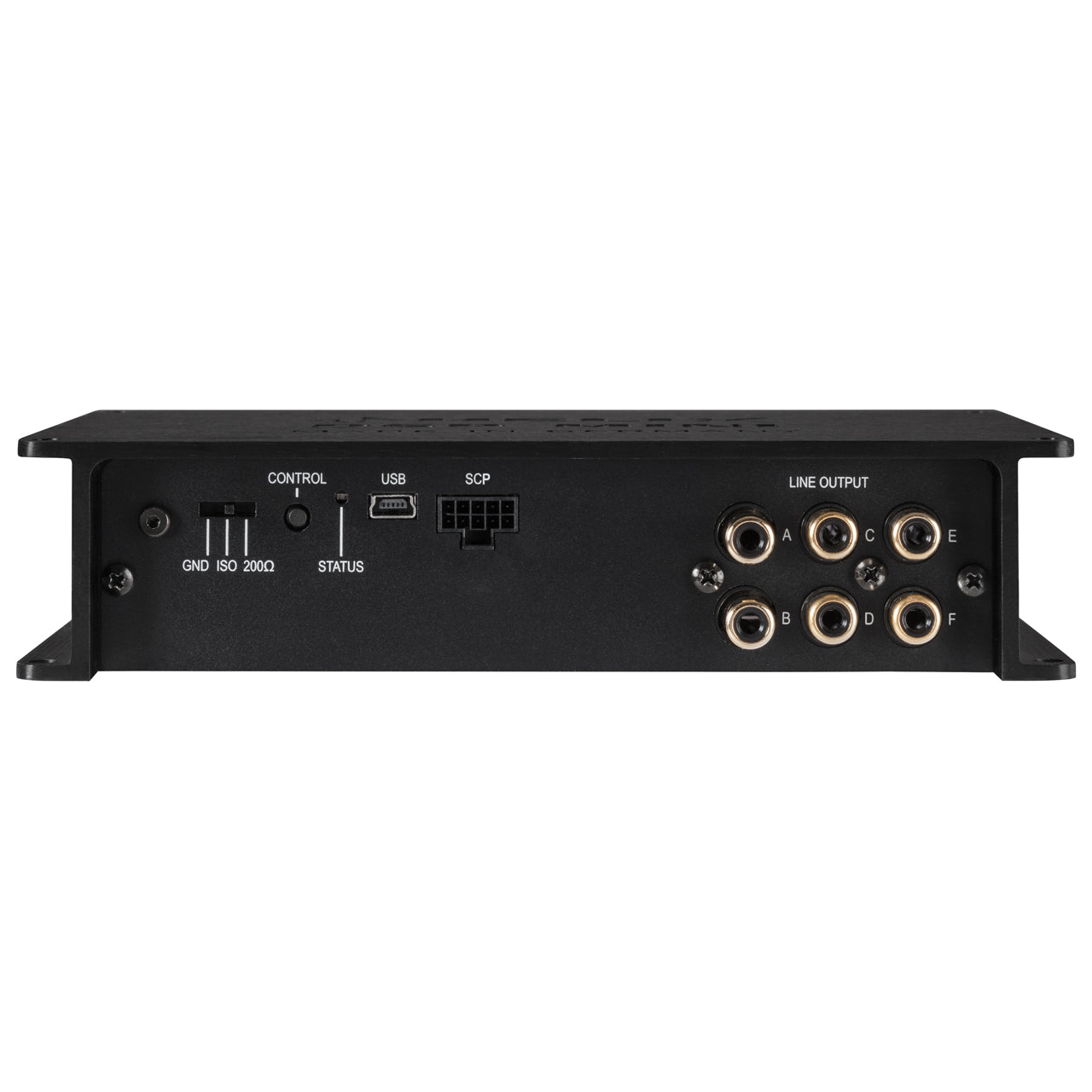

Outputs

• 6 x RCA / Cinch
• 1 x Remote Out

Output voltage

• 6 Volts

Frequency response

• 10 Hz - 44,000 Hz

DSP resolution

• 64 Bit

DSP power

• 295 MHz (1.2 billion MAC operations/second)

Sampling rate

• 96 kHz

DSP type

• Audio signal processor

Signal converters

• A/D: BurrBrown
• D/A: BurrBrown

Signal-to-noise ratio digital input

• 112 dB (A-weighted)

Signal-to-noise ratio analog input

• 107 dB (A-weighted)

Total harmonic distortion (THD+N) digital input

• < 0.0008 %

Total harmonic distortion (THD+N) analog input

• < 0.002 %

IM distortion (IMD) digital input

• < 0.003 %

IM distortion (IMD) analog input

• < 0.005 %

Crosstalk

• > 90 dB

Operating voltage

• 9.6 - 17 Volts (max. 5 sec. down to 6 Volts)

Power rating

• DC 12 V ⎓ 3 A max.

Current draw

• < 480 mA

Max. remote output current

• 500 mA

Additional features

• HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch

Dimensions (H x W x D)

• 40 x 177 x 104 mm / 1.58 x 6.97 x 4.09”

What's in the box

• 1 x Signal processor DSP MINI MK2
• 1 x Control Input-to-SCP adaptor
• 1 x USB cable
• 1 x Mounting material
• 1 x Instruction manual
