Special Order Only

Features

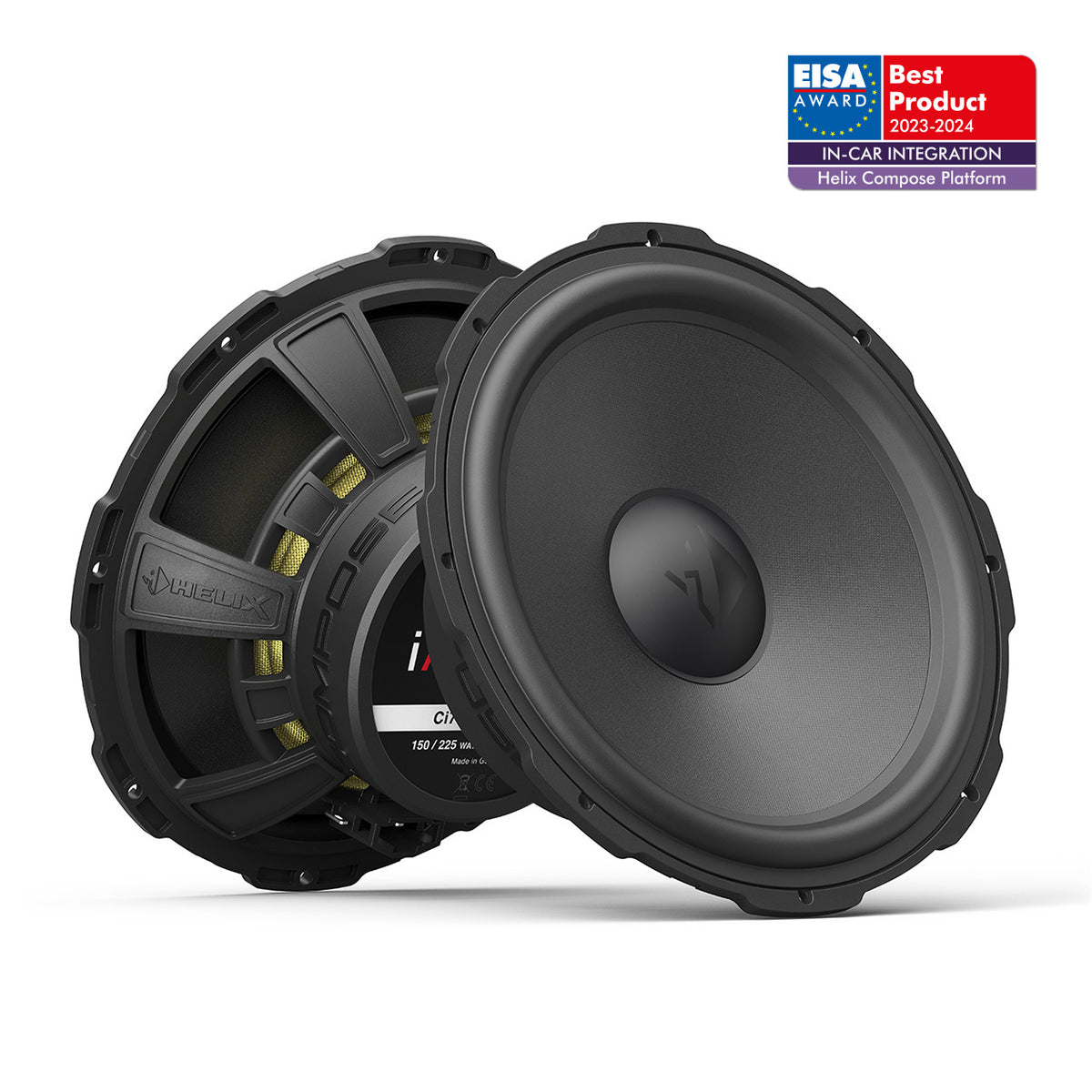

• 8” / 200 mm high-end woofer which combines outstanding sound performance with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Ultra High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Polyurethane dustcap for optimized frequency response in the upper midrange area

• Large 1.46” / 37 mm voice coil ensures minimum thermal compression and high power handling

• Compact dimensions with maximum performance - despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis

• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits

• Powerful magnet system for highest efficiency and extremely low distortion

• Designed for the optionally available car-specific FlexMount200 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

• Made in Germany

Technical data

• Power handling - 150w RMS

• Power Handling - 225w Peak

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Frequency response - 35 Hz - 2,500 Hz

• Resonance frequency - Fs - 52 Hz

• Mechanical Q factor - Qms - 6.04

• Electrical Q factor - Qes - 0.78

• Total Q factor - Qts - 0.69

• Compliance - Cms - 370 µm/N

• Equivalent air volume - Vas - 20.8 L

• Force factor - B*I - 5.6 Tm

• Sensitivity - SPL - 92 dB @ 2.83 V / 1m - 88 dB @ 1W / 1m

• Cone area - Sd - 201 cm²

• Moving mass - Mms - 25.6 g

• Cone material - Ultra high damping (UHD) crafted paper cone

• Mechanical resistance - Rms - 1.40 kg/s

• Voice coil diameter - ø - 37 mm

• Voice coil winding height - 13.8 mm

• Max. linear excursion - Xmax - +/- 3.9 mm

• Outer diameter ø - 195 mm / 7.68"

• Installation diameter - ø - 173.5 mm / 6.83"

• Installation depth - 65.8 mm / 2.59"

• Features - ProConnect terminal,

• FlexMount200

Compatibility

• Flexmount200

• WireKits

Scope of delivery

• 2 x Ci7 W200FM-S3

• 2 x Connection cable

• 2 x Mounting material
