Features

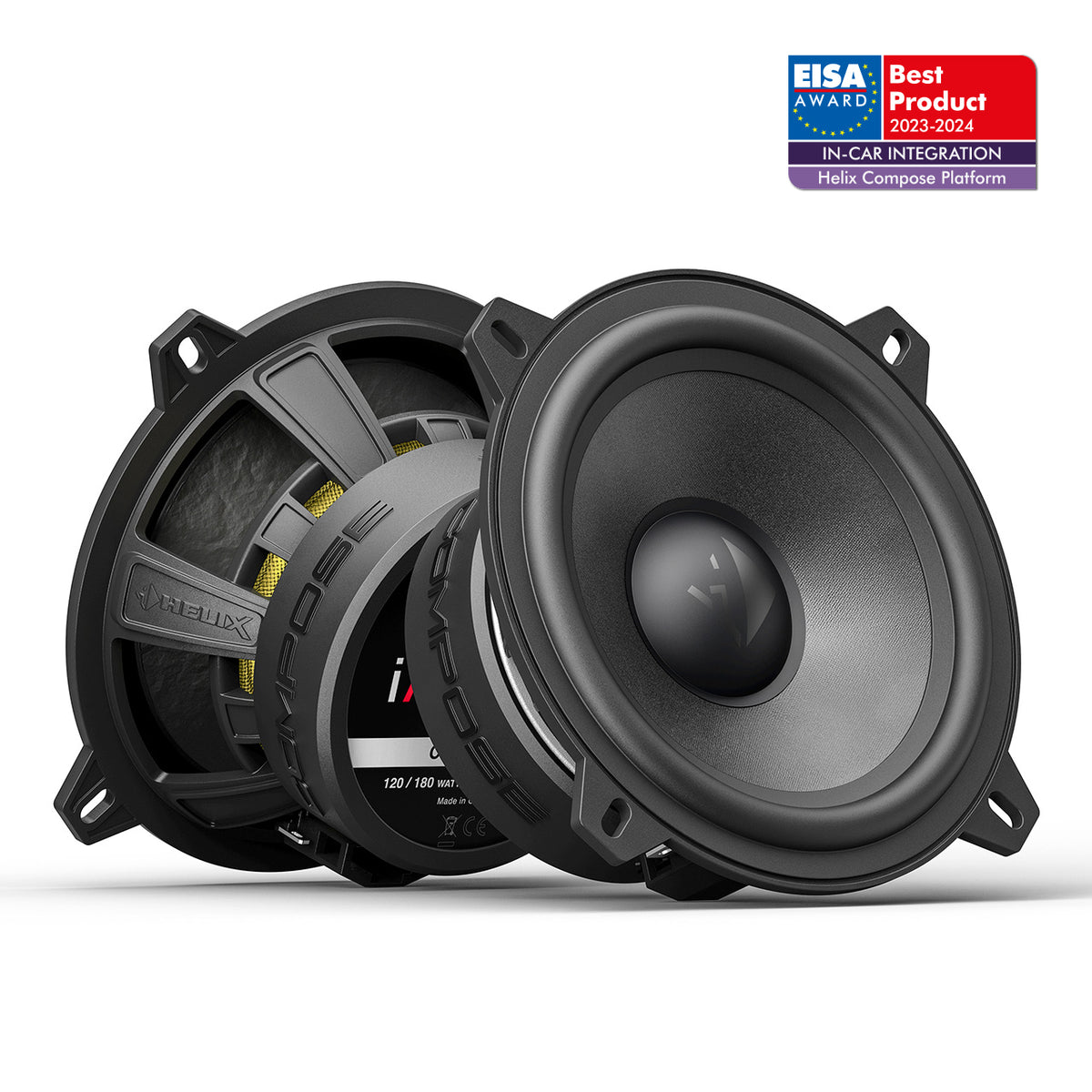

• 5.25” / 130 mm high-end midbass which combines high efficiency with outstanding sound performance

• 3 Ohms technology for maximized power output of the amplifier

• Ultra High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Polyurethane dust cap for optimized frequency response in the upper midrange area

• 1” / 25 mm voice coil ensures minimum thermal compression and high power handling

• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available Wire Kits

• Powerful magnet system for highest efficiency and extremely low distortion

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

• Made in Germany

Technical data

• Power handling 120w RMS / 180w Peak

• Impedance - Z - 3 Ω

• DC resistance - Re - 2.9 Ω

• Frequency response - 70 Hz - 4,000 Hz

• Resonance frequency - Fs - 73 Hz

• Mechanical Q factor - Qms - 2.38

• Electrical Q factor - Qes - 0.50

• Total Q factor - Qts - 0.41

• Compliance - Cms - 420 µm/N

• Equivalent air volume - Vas - 4.3 L

• Force factor - B*I - 5.5 Tm

• Sensitivity - SPL - 92 dB @ 2.83 V / 1m - 88 dB @ 1W / 1m

• Cone area - Sd - 85 cm²

• Moving mass - Mms - 11.1 g

• Cone material - Ultra high damping (UHD) crafted paper cone

• Mechanical resistance - Rms - 2.15 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 12.8 mm

• Max. linear excursion - Xmax - +/- 3.4 mm

• Outer diameter ø - 130 mm / 5.12"

• Installation diameter - ø - 116.5 mm / 4.59"

• Installation depth - 58.5 mm / 2.31"

• Features - ProConnect terminal

Compatibility

• Wirekits

Scope of delivery

• 2 x Ci7 W130-S3

• 2 x Connection cable

• 2 x Mounting material
