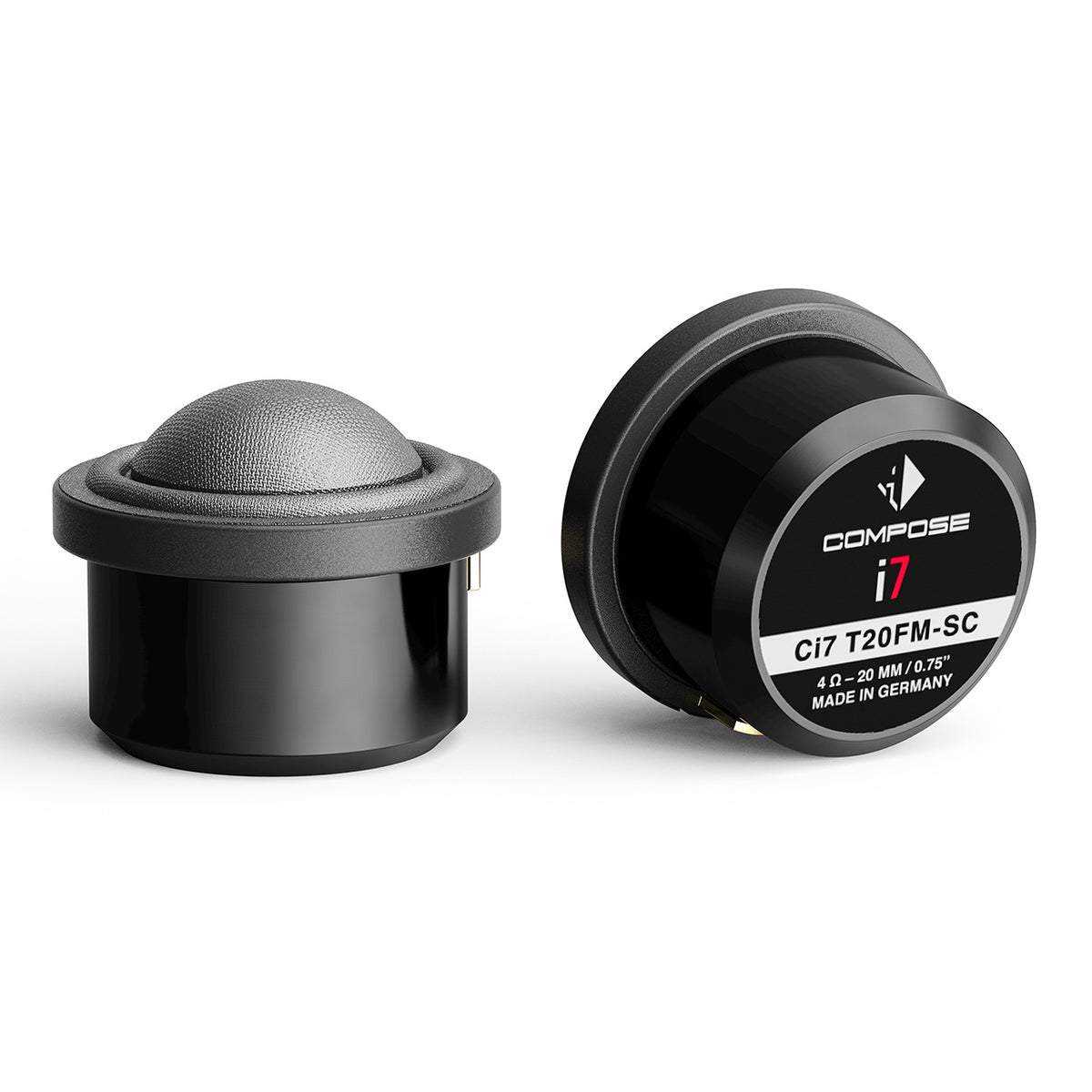

Features

• Super-wide dispersion 0.75” / 20 mm high-end silk dome tweeter with coupling volume for lowest possible resonance frequency

• Exceptionally lightweight and fine-meshed silk dome ensures brilliant and smooth treble response

• High efficient neodymium magnet for high magnetic flux linearity

• Integrated, dampened coupling volume allows a low crossover frequency thanks to its low resonance frequency

• Sturdy Aluminium housing turned from solid

• Compact design and various mounting options for numerous installation demands

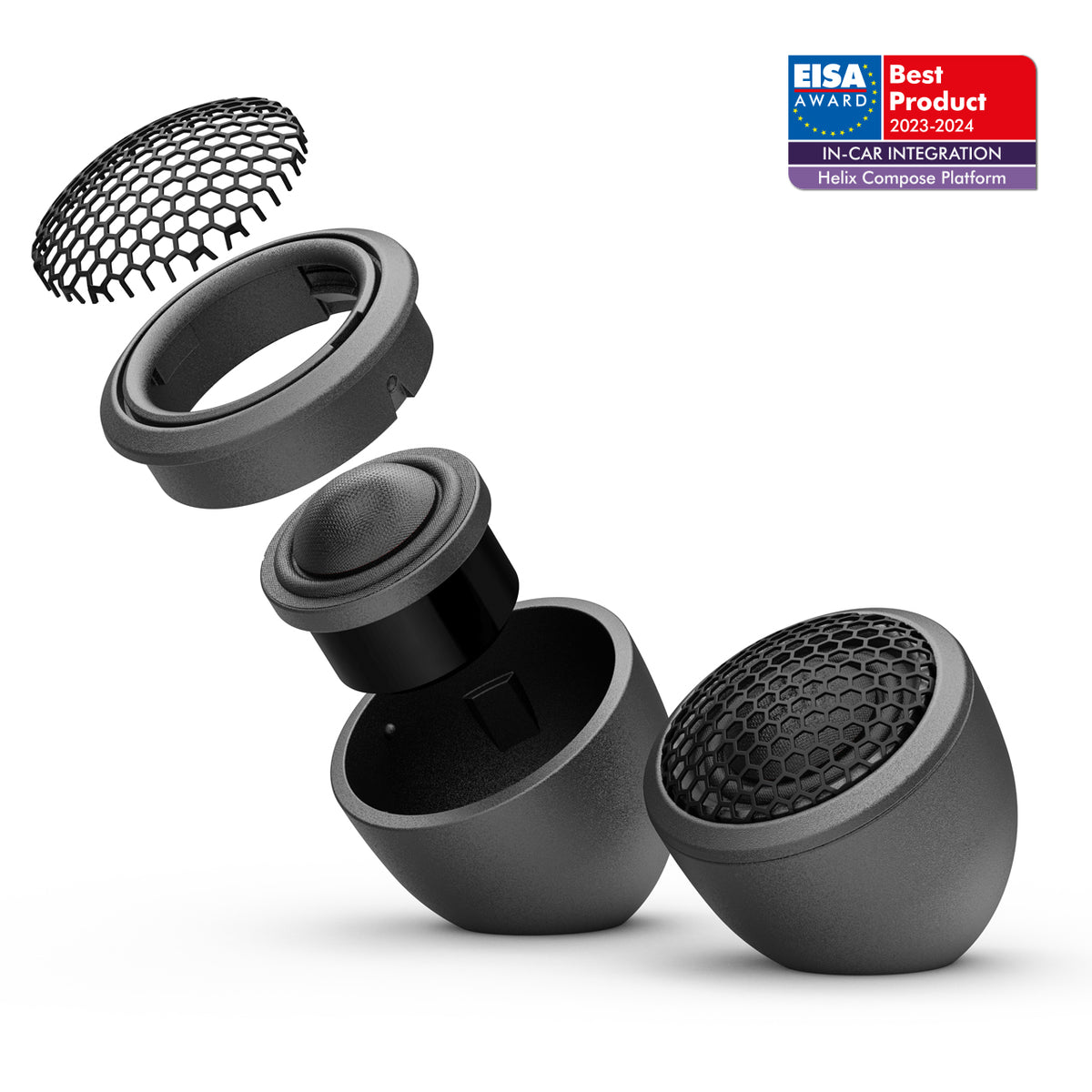

• Mounting pods for flush mount and angle mount included in delivery

• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

• Designed for optionally available, car-specific Wire Kits which allow a non-destructive integration

• Made in Germany

Technical data

• Impedance - 4 Ω

• DC resistance - Re - 3.4 Ω

• Frequency response - 1,500 Hz - 30,000 Hz

• Resonance frequency - Fs - 950 Hz

• Sensitivity - SPL - 91.0 dB @ 2.83V / 1m - 88.0 dB @ 1W / 1m

• Voice coil diameter – Ø - 20 mm

• Cone material - Silk dome with coupling volume

• Outer diameter - 32 mm / 1.26"

• Installation diameter - 27.2 mm / 1.07"

• Installation depth - 19 mm / 0.75"

Compatibility

• FlexMount20

• WireKits

Scope of delivery

• 2 x Ci7 T20FM-SC

• 2 x Tweeter flush mount

• 2 x Tweeter pod

• 2 x Extension cable

• 2 x Mounting material
