Features

• 4” / 100 mm high-end midrange speaker which combines outstanding sound performance with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Ultra-High Damping (UHD) crafted paper cone for outstanding impulse response and unmatched frequency response

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Polyurethane dust cap for optimized frequency response in the upper midrange area

• 1” / 25 mm voice coil ensures minimum thermal compression and high-power handling

• Automotive grade Flex Connect terminal for fast, secure and fail-safe connection

• Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion

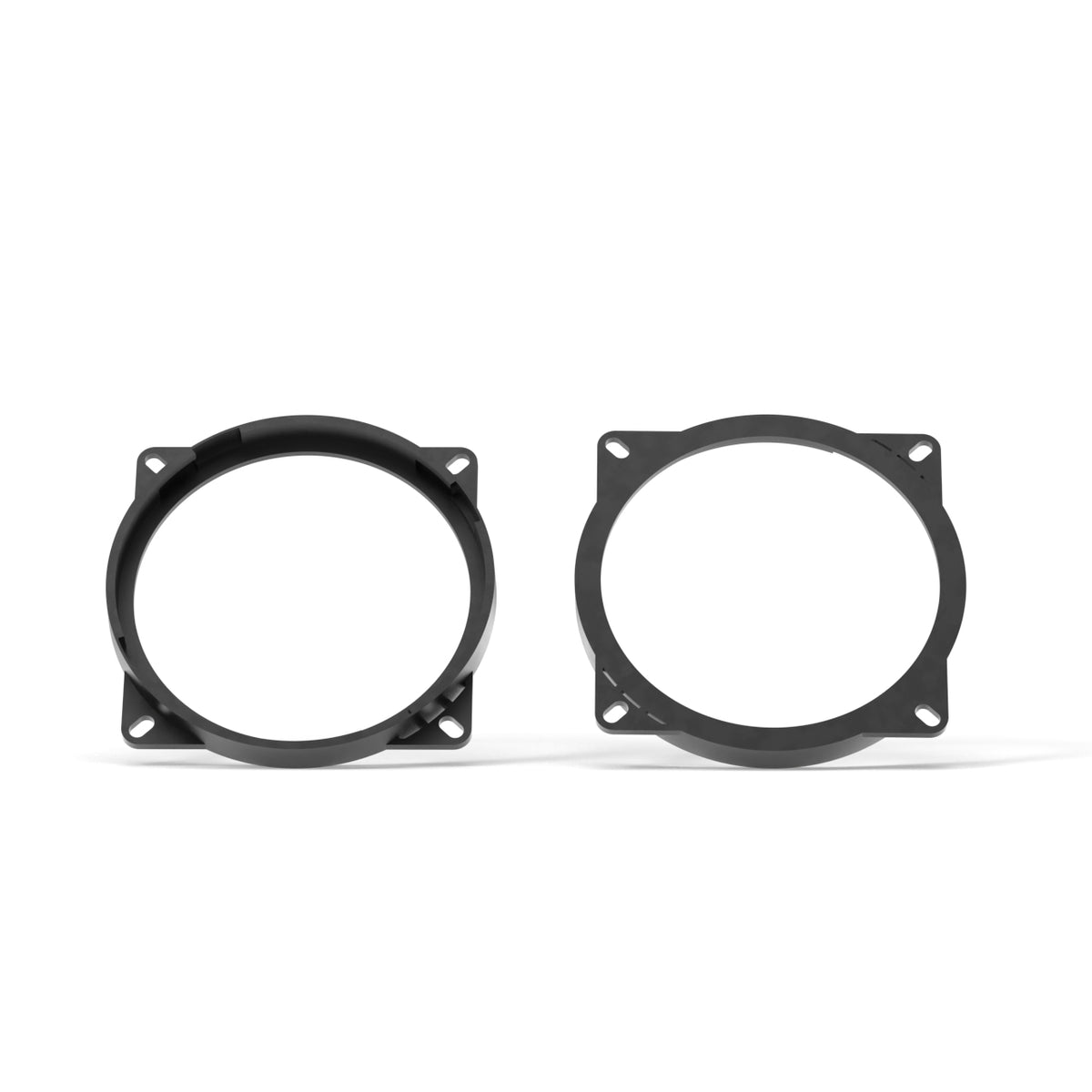

• Universal FlexMount100 mounting ring (with standard 4-point mounting) included in delivery

• Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

• Made in Germany

Technical data

• Power handling - 100w RMS

• Power Handling - 150w Peak

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Frequency response - 110 Hz - 7,000 Hz

• Resonance frequency - Fs - 85 Hz

• Mechanical Q factor - Qms - 4.58

• Electrical Q factor - Qes - 0.52

• Total Q factor - Qts - 0.47

• Compliance - Cms - 590 µm/N

• Equivalent air volume - Vas - 2.5 L

• Force factor - B*I - 4.3 Tm

• Sensitivity - SPL - 91 dB @ 2.83 V / 1m - 87 dB @ 1W / 1m

• Cone area - Sd - 55 cm²

• Moving mass - Mms      5.9 g

• Cone material - Ultra high damping (UHD) crafted paper cone

• Mechanical resistance - Rms - 0.69 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 5.5 mm

• Max. linear excursion - Xmax - +/- 1.3 mm

• Outer diameter ø - 98 mm / 3.86"

• Outer diameter with universal mounting ring - ø - 104.5 mm / 4.11"

• Installation diameter - ø - 89 mm / 3.50"

• Installation depth - 26.9 mm / 1.06"

• Features - FlexConnect terminal, powerful push-pull neodymium magnet system, FlexMount100

Compatibility

• FlexMount100

• FlexConnect Inlays

Scope of delivery

• 2 x Ci7 M100FM-S3

• 2 x Universal FlexMount100 (with standard 4-point mounting)

• 2 x FlexConnect inlay A

• 2 x Universal connection cable

• 2 x Crossover connection cable

• 2 x Mounting material
