Features

• 4-stage tweeter level and woofer lowpass filter adjustment for optimized for precise matching to mounting position

• Extensively fine-tuned with 12 dB slope for tweeter and woofer

• COMPOSE Connect – Smart, automotive grade connectors for fail-safe and secure installation

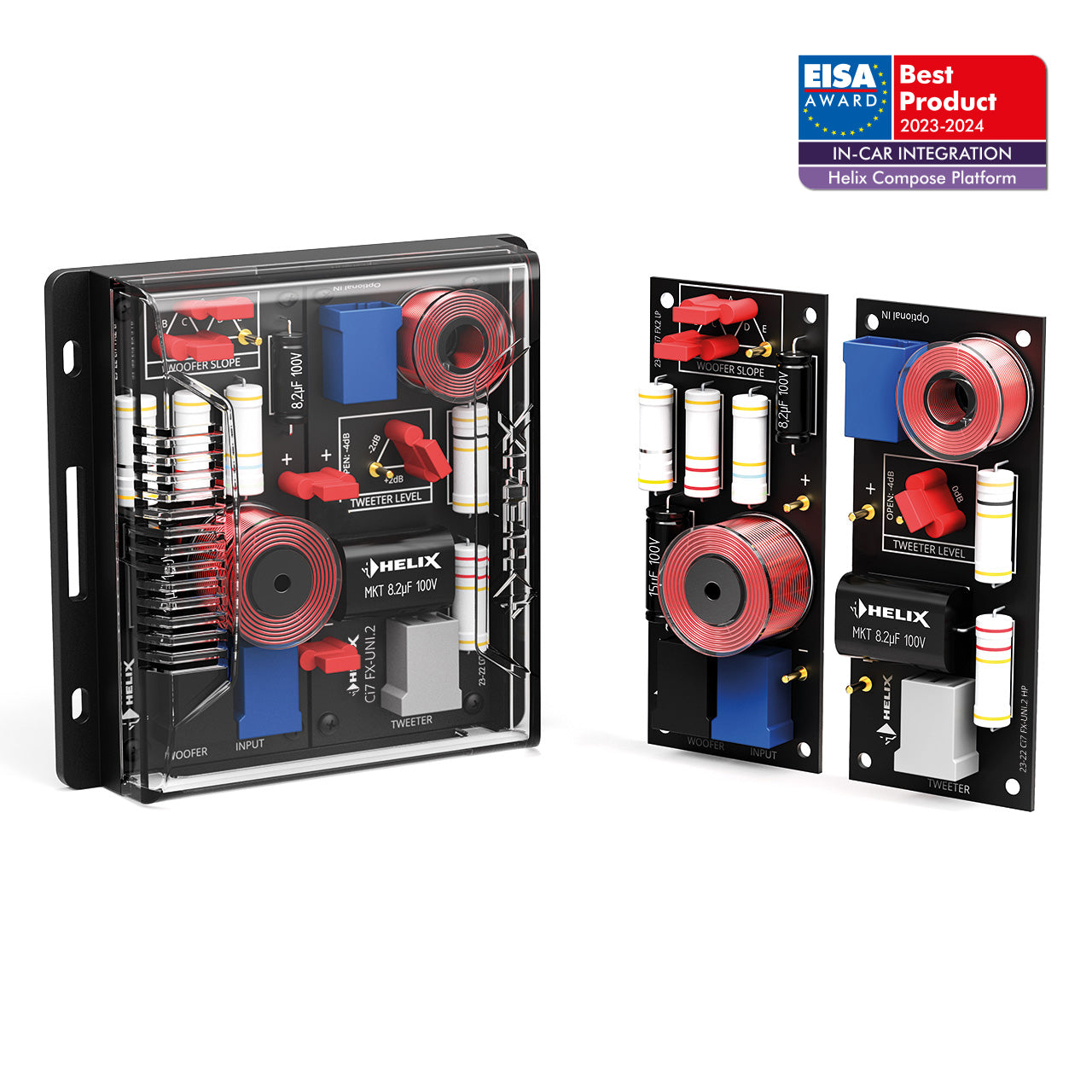

• “Flex-Crossover“ – separable and therefore well suited for the installation in vehicles with separate mounting positions of the tweeter and woofer

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

• Crossovers solely equipped with high grade components for perfect separation of the frequencies and best sound quality

• Compatible with all COMPOSE i7 loudspeakers

Technical data

• Slope Tweeter - 12 dB highpass

• Slope Woofer - 12 dB lowpass

• Tweeter level adjustment range -4 dB up to +2 dB

Features:

• Designed for Ci7 T20FM-SC,

• 4-stage tweeter level adjustment,

• 4-stage woofer lowpass filter adjustment to all COMPOSE midrange, midbass and woofer speaker

Compatibility

Tweeter - i7

• Ci7 T20FM-SC

Tweeter - i5

• Ci5 T25FM-CA

Midrange / Midbass / Woofer - i7

• Ci7 M100FM-S3

• Ci7 W130-S3

• Ci7 W165FM-S3

• Ci7 W200FM-S3

Midrange / Midbass / Woofer - i5

• Ci5 M80FM-S3 (Use the jumper setting for W130)

• Ci5 W165FM-S3

Scope of delivery

• 2 x Ci7 FX-UNI.2

• 2 x COMPOSE Connect Kit

• 4 x PCB sleeves

• 1 x Mounting material
