Features

• Exceptional cone excursion – ensures high sound pressure levels and impressive low-frequency reproduction

• Hybrid flat woofer concept – a perfect balance between a powerful subwoofer and a mid-woofer driver that covers a frequency range from 25 to 500 Hz

• Flexible connection – chassis with 2 x 2 Ohms dual voice coil always offering the right solution for every amplifier configuration to achieve maximum performance

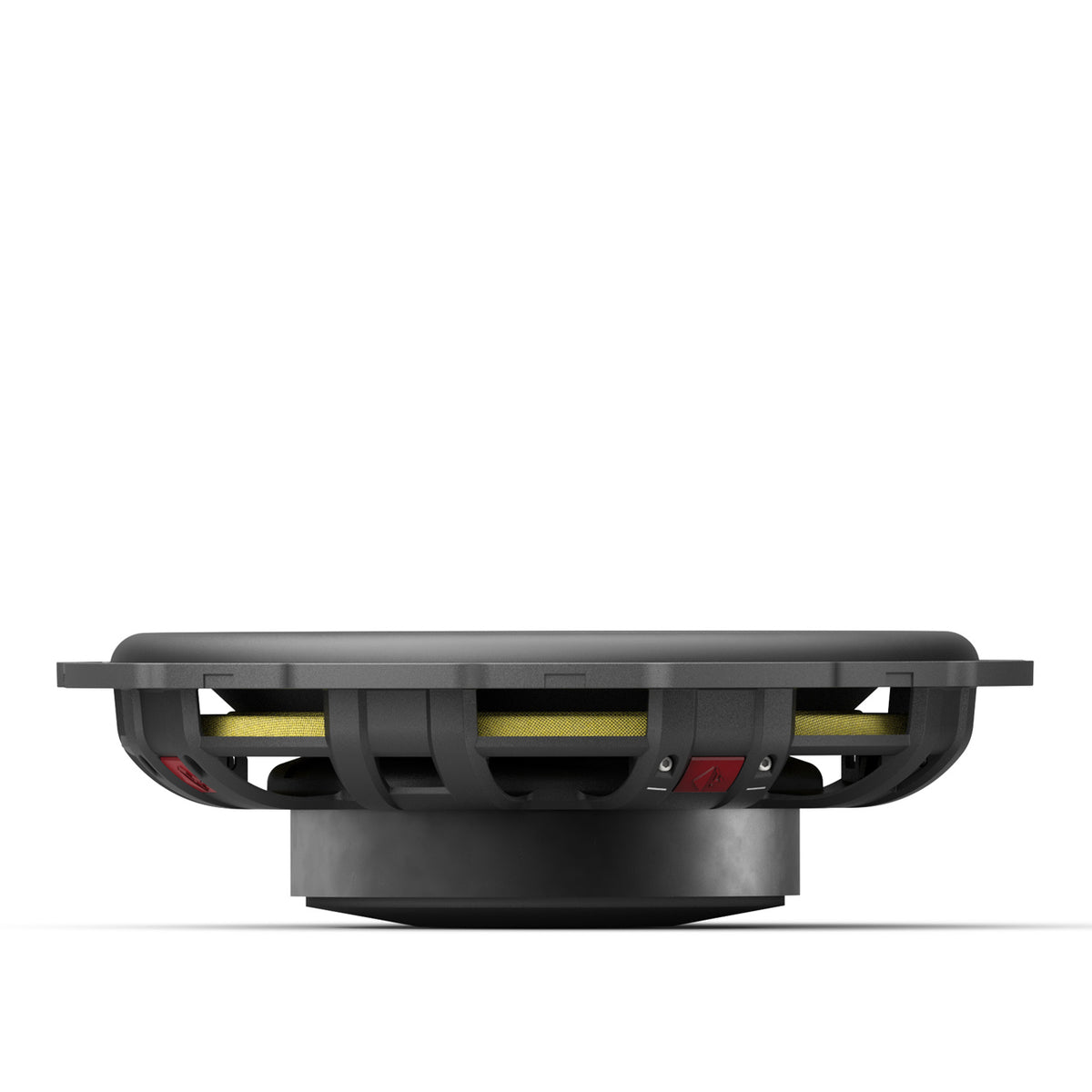

• Minimum installation depth – an innovative basket design with only 47 mm installation depth for the use in restricted mounting spaces

• Compact dimensions with maximum performance – despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis

• Lightweight polypropylene cone which provides essential stiffness for phenomenal sound performance

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Powerful magnet system for high efficiency and optimum impulse response

• Perfect for difficult applications – e.g. can be installed under the seats in various BMW models or as front subwoofer in Mercedes cars

• FlexMount200 technology – Designed car-specific adapters, which allow acoustically-optimized and professional integration in the original installation positions of under-seat and bulkhead loudspeakers

Technical data

• Power handling RMS / Max.  P - 200 / 400 Watts

• Impedance Z - 2 x 2 Ω

• DC resistance Re - 3.6 Ω

• Frequency response - 25 Hz - 500 Hz

• Resonance frequency Fs - 55 Hz

• Mechanical Q factor Qms - 8.31

• Electrical Q factor Qes - 0.88

• Total Q factor Qts - 0.80

• Compliance Cms - 256 µm/N

• Equivalent air volume Vas - 13.5 L

• Force factor B*I - 6.7 Tm

• Sensitivity SPL - 90 dB @ 2.83 V / 1m

• Cone area Sd - 194 cm²

• Moving mass Mms - 32 g

• Cone material - Injected polypropylene

• Mechanical resistance Rms - 1.39 kg/s

• Voice coil diameter ø - 38 mm

• Voice coil winding height - 20 mm

• Max. linear excursion Xmax - +/- 7.5 mm

• Outer diameter ø - 195 mm / 7.68"

• Installation diameter ø - 173.5 mm / 6.83"

• Installation depth - 47.0 mm / 1.85"

• Features - FlexMount200

Compatibility

• FlexMount200

Scope of delivery

• 2 x Ci5 S200FM-D2

• 2 x Mounting material
