Features

• 3.15” / 80 mm advanced midrange speaker with exceptional sound performance and versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Silicon coated paper cone for excellent impulse response and unmatched frequency response

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Special rubber surround and optimized magnet system for large linear cone excursion

• Dedicated surround manufacturing allows for a smaller installation diameter and a maximized effective cone area compared to typical 80 mm speakers

• Aluminium dust cap for optimized frequency response in the upper midrange area

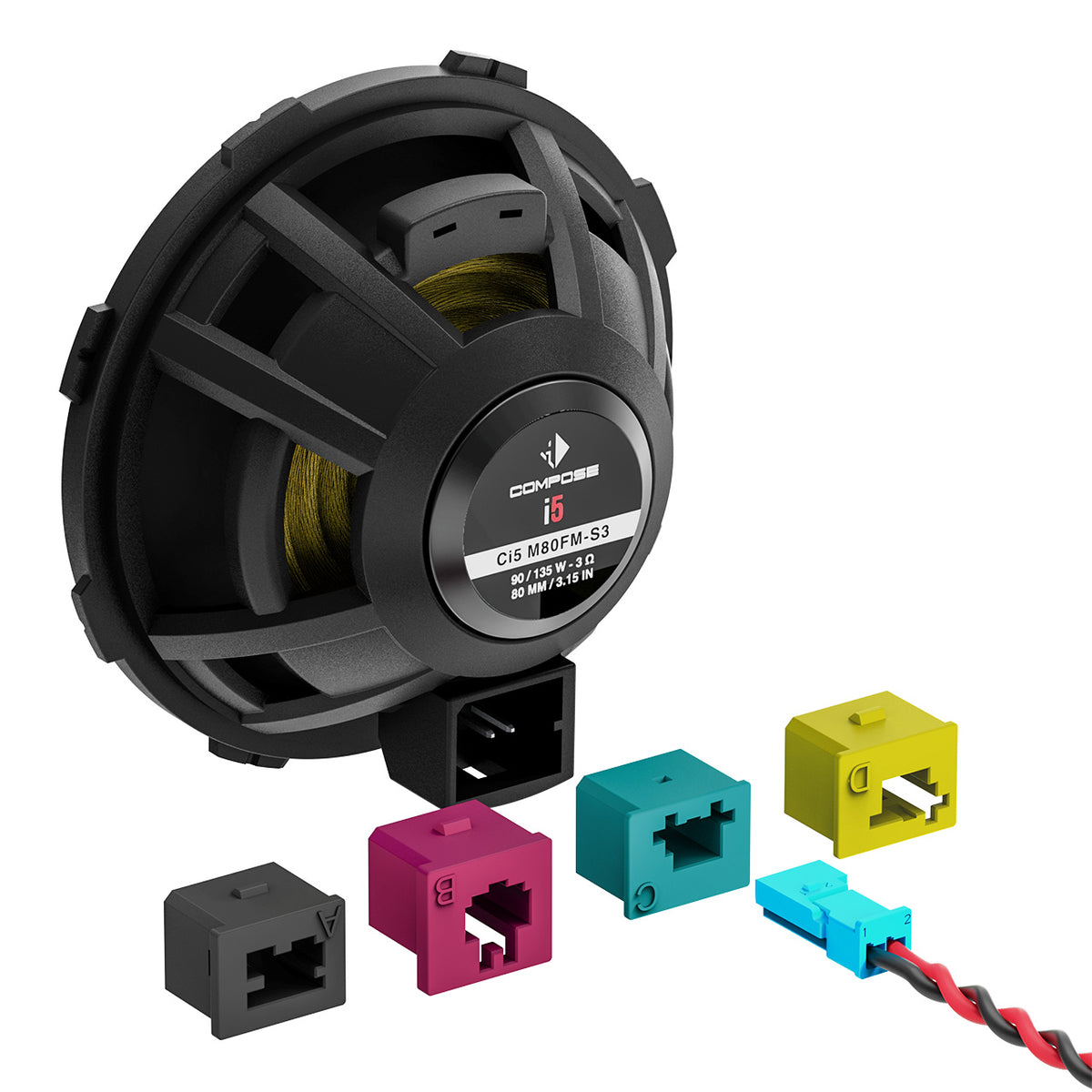

• Automotive grade FlexConnect terminal for fast, secure and fail-safe connection

• Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion

• Two universal FlexMount80 mounting rings for car-specific adaption (e.g. Mercedes, Porsche, Tesla etc.) or universal use included in delivery

• Optionally available: CFM80-100 adaptor ring that enables the use of optionally available car-specific FlexMount100 adaptors for an acoustically optimized and professional integration into the vehicle’s original mounting location

• Universal mounting ring with grille included in delivery

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Power handling RMS / Max.  P - 90 / 135 Watts

• Impedance Z - 3 Ω

• DC resistance Re - 3.1 Ω

• Frequency response - 200 Hz - 6,000 Hz

• Resonance frequency Fs - 156 Hz

• Mechanical Q factor Qms - 3.68

• Electrical Q factor Qes - 0.75

• Total Q factor Qts - 0.63

• Compliance Cms - 407 µm/N

• Equivalent air volume Vas - 0.7 L

• Force factor B*I - 3.2 Tm

• Sensitivity SPL - 92 dB @ 2.83 V / 1m

• Cone area Sd - 36 cm²

• Moving mass Mms - 2.6 g

• Cone material - Silicon coated paper cone

• Mechanical resistance Rms - 0.68 kg/s

• Voice coil diameter ø - 20 mm

• Voice coil winding height - 7 mm

• Max. linear excursion Xlin - +/- 2.5 mm

• Max. mechanical excursion Xmax - +/- 4.5 mm

• Outer diameter ø - 78.5 mm / 3.09"

• Outer diameter with universal mounting ring ø - 88.9 mm / 3.50"

• Installation diameter ø - 69.5 mm / 2.74"

• Installation depth - 30.2 mm / 1.19"

• Features - FlexConnect terminal, powerful push-pull neodymium magnet system,

Compatibility

• FlexMount80

• FlexMount100 (in combination with the optional CFMK80-100)

• FlexConnect inlays

• WireKits

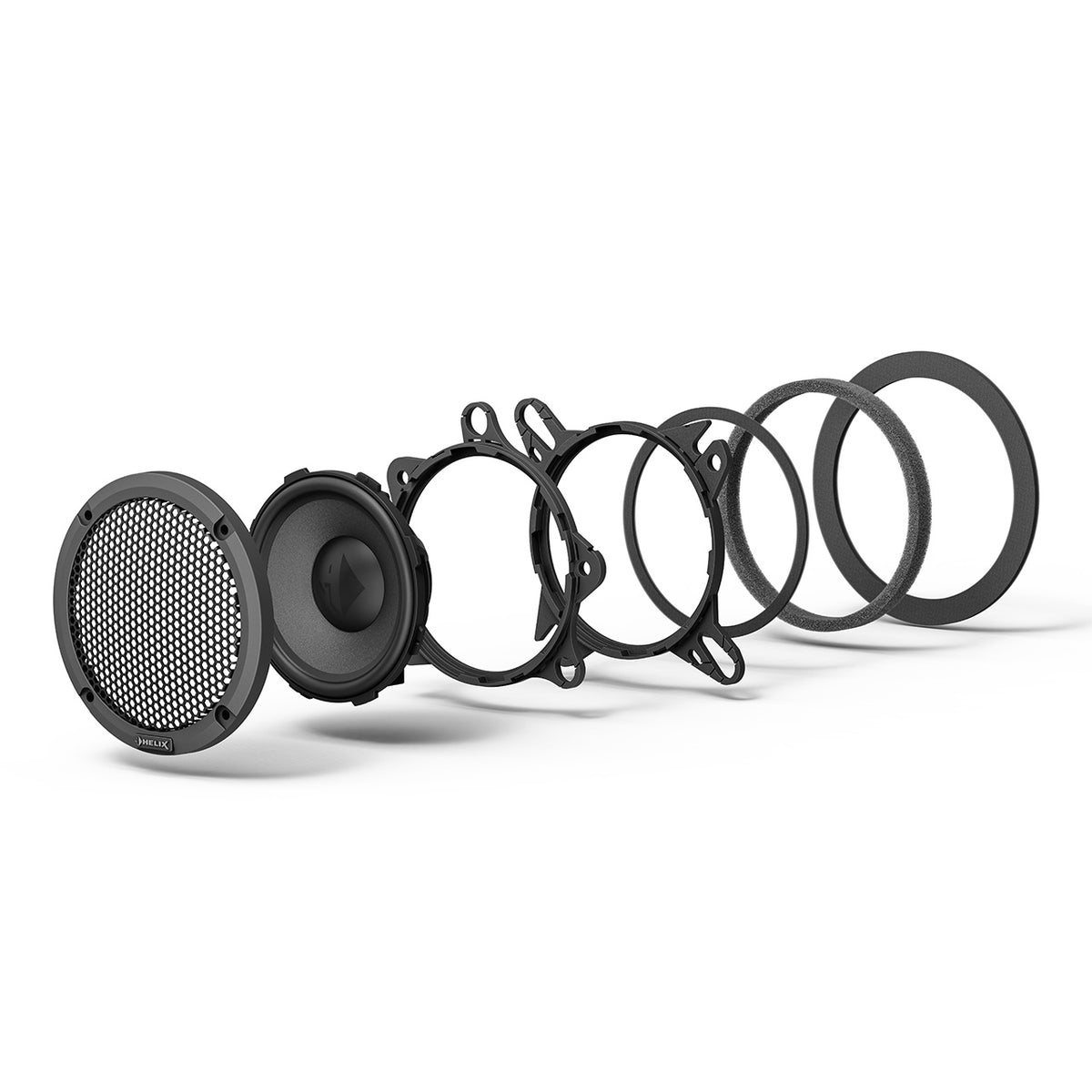

Scope of delivery

• 2 x Ci5 M80FM-S3

• 2 x Universal FlexMount CFM80 MULTI.1 & MULTI.2

• 2 x Universal connection cable

• 2 x FlexConnect inlay set (A, B, C, D)

• 2 x Speaker gasket

• 2 x Mounting ring with grille

• 1 x Mounting material
