SPECIAL ORDER ITEM

Features

• 2” / 50 mm advanced wideband speaker with exceptional sound performance and versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Silicon coated paper cone for excellent impulse response and unmatched frequency response

• Maximized cone area and an aluminium dust-cap directly coupled to the voice coil, achieving a wide frequency response of 300 – 20,000 Hz

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Special rubber surround and optimized magnet system for large linear cone excursion

• Dedicated surround manufacturing allows for a smaller installation diameter and a maximized effective cone area compared to typical 50 mm speakers

• Powerful push-pull neodymium magnet system for highest efficiency and extremely low distortion

• Universal FlexMount50 mounting ring for car-specific adaption (e.g. Audi, Ford, Mercedes etc.) or universal use included in delivery

• Universal mounting ring with grille included in delivery

Technical data

• Power handling RMS / Max.  P - 70 / 100 Watts

• Impedance Z - 3 Ω

• DC resistance Re - 3.1 Ω

• Frequency response - 300 Hz - 20,000 Hz

• Resonance frequency Fs - 240 Hz

• Mechanical Q factor Qms - 3.09

• Electrical Q factor Qes - 0.80

• Total Q factor Qts - 0.68

• Compliance Cms - 300 µm/N

• Equivalent air volume Vas - 0.16 L

• Force factor B*I - 2.8 Tm

• Sensitivity SPL - 89 dB @ 2.83 V / 1m

• Cone area Sd - 19.6 cm²

• Moving mass Mms - 1.43 g

• Cone material - Silicon coated paper cone

• Mechanical resistance Rms - 0.71 kg/s

• Voice coil diameter ø - 20 mm

• Voice coil winding height - 7 mm

• Max. linear excursion Xlin - +/- 2.5 mm

• Max. mechanical excursion Xmax - +/- 3.5 mm

• Outer diameter ø - 59.8 mm / 2.34"

• Outer diameter with universal mounting ring ø - 70.0 mm / 2.75"

• Installation diameter ø - 50.9 mm / 2.00"

• Installation depth - 25.2 mm / 0.99"

• Features - Powerful push-pull neodymium magnet system,

Compatibility

• FlexMount50

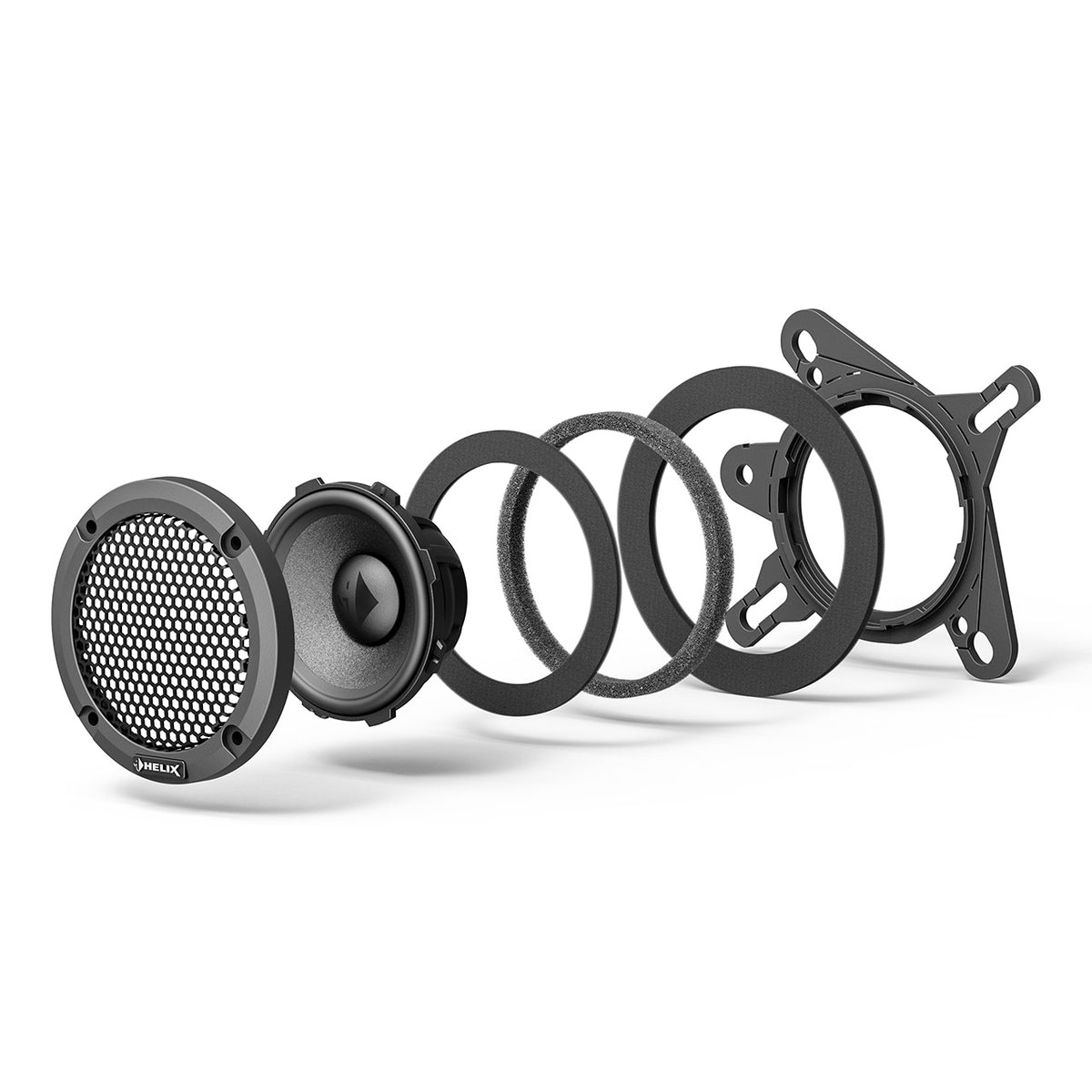

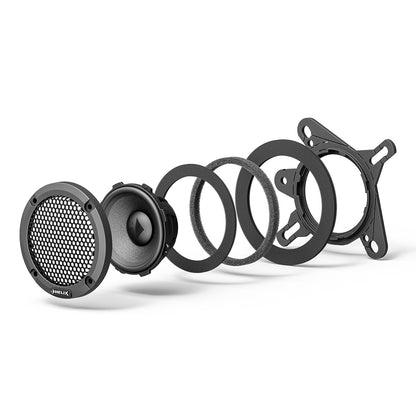

Scope of delivery

• 2 x Ci5 M50FM-S3

• 2 x Universal FlexMount CFM50 MULTI.1

• 2 x Speaker gasket

• 2 x Mounting ring with grille

• 1 x Mounting material
