Special Order Only

Features

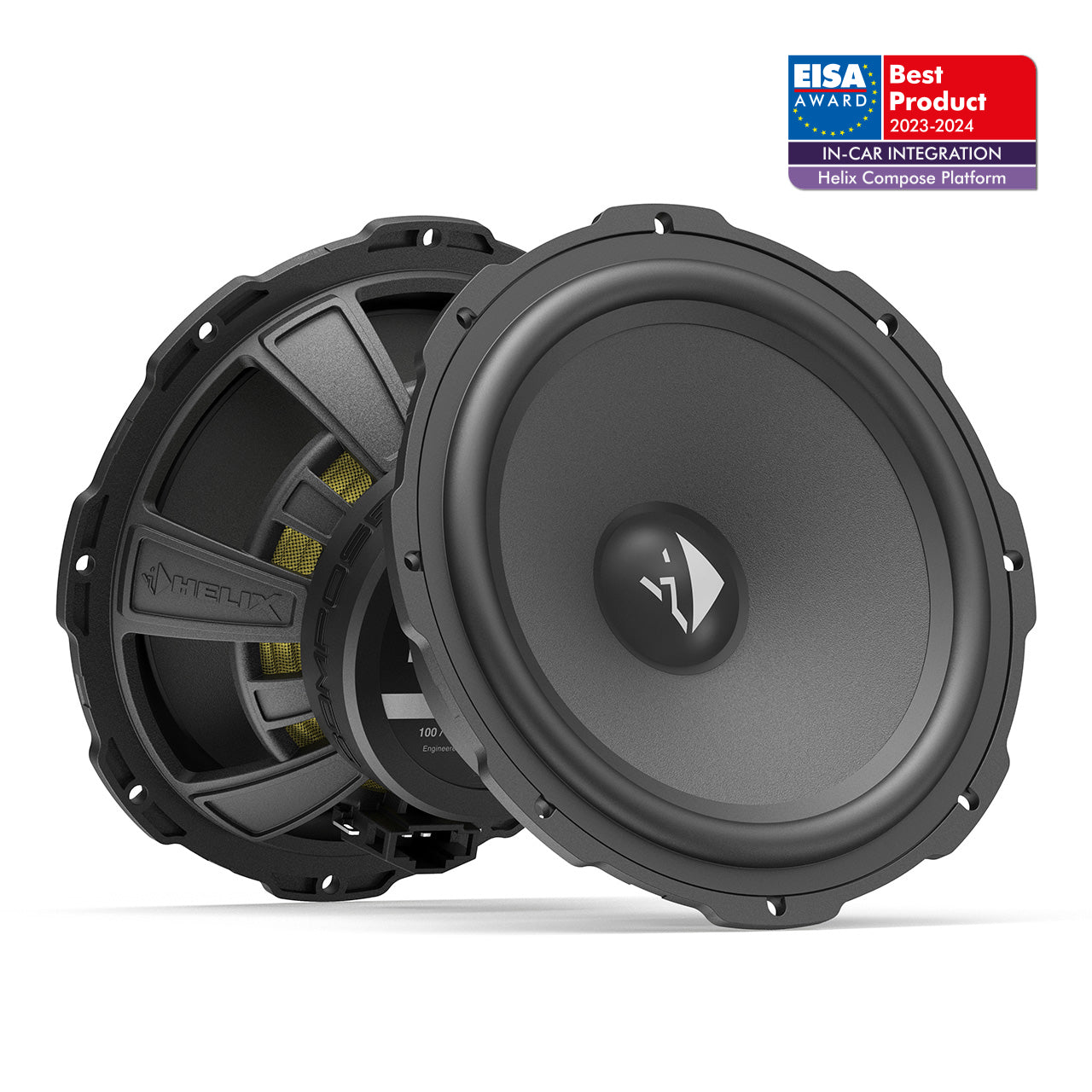

• 6.5” / 165 mm performance midbass which combines outstanding sound quality with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Polyurethane dustcap for optimized frequency response in the upper midrange area

• 1” / 25 mm voice coil ensures high power handling

• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits

• Powerful magnet system for high efficiency and optimum impulse response

• Designed for the optionally available car-specific FlexMount165 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Power handling - 100w RMS

• Power Handling - 150w Peak

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Frequency response - 60 Hz - 3,500 Hz

• Resonance frequency - Fs - 70 Hz

• Mechanical Q factor - Qms - 4.17

• Electrical Q factor - Qes - 1.05

• Total Q factor - Qts - 0.84

• Compliance - Cms - 454 µm/N

• Equivalent air volume - Vas - 11.2 L

• Force factor - B*I - 4.0 Tm

• Sensitivity - SPL - 92 dB @ 2.83 V / 1m - 88 dB @ 1W / 1m

• Cone area - Sd - 133 cm²

• Moving mass - Mms - 11.3 g

• Cone material - Paper with Cenosphere coating

• Mechanical resistance - Rms - 1.18 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 10.5 mm

• Max. linear excursion - Xmax - +/- 3.2 mm

• Outer diameter - ø - 165 mm / 6.5"

• Installation diameter - ø - 142 mm / 5.59"

• Installation depth - 60.7 mm / 2.39"

• Features - ProConnect terminal,

• FlexMount165

Compatibility

• FlexMount165

• WireKits

Scope of delivery

• 2 x Ci3 W165FM-S3

• 2 x Mounting material
