Features

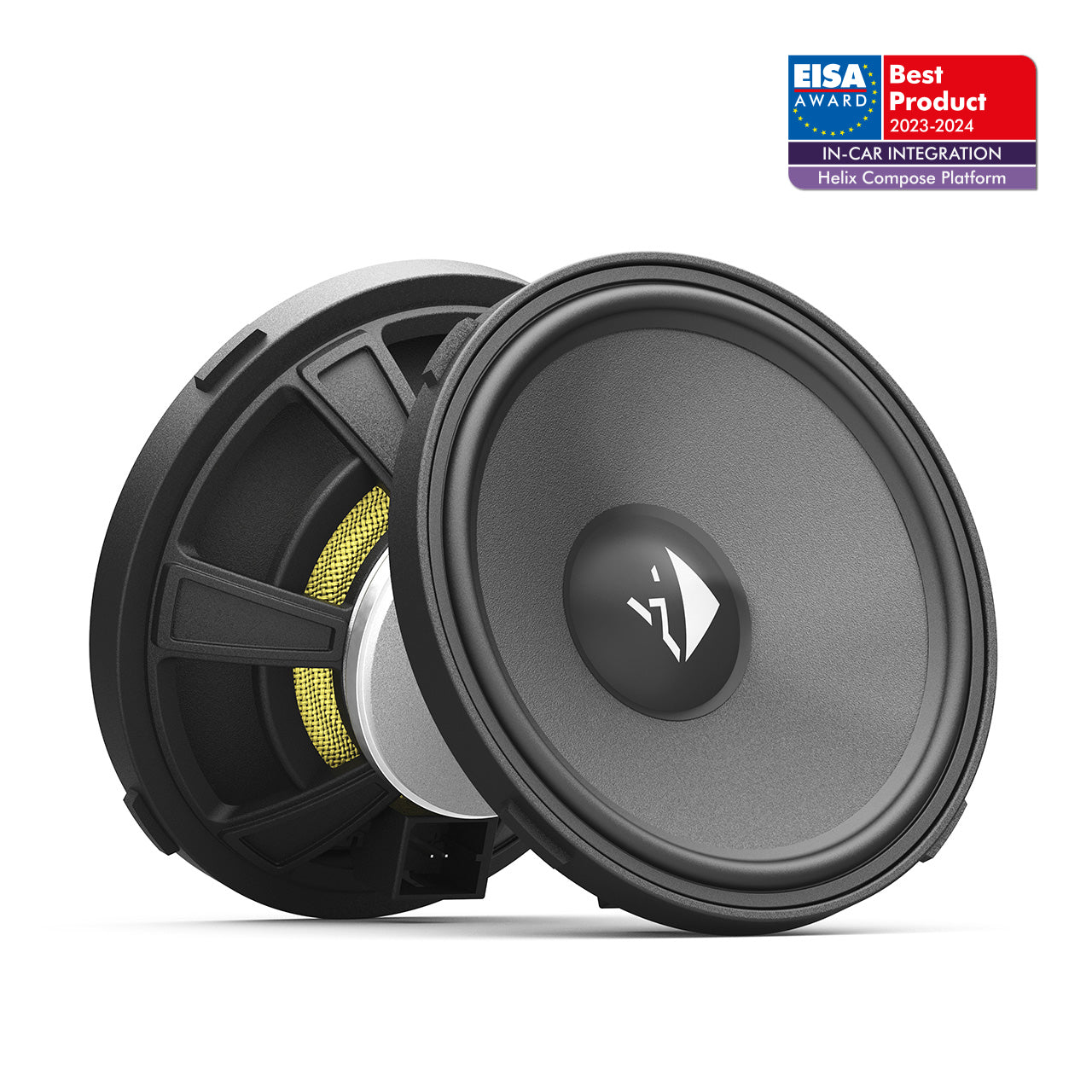

• 4” / 100 mm performance midrange speaker which combines outstanding sound quality with versatile physical integration options

• High efficiency and 3 Ohms technology for maximized power output of the amplifier

• Unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Specially shaped rubber surround for high linear cone excursion

• Polyurethane dustcap for optimized frequency response in the upper midrange area

• 1” / 25 mm voice coil ensures high power handling

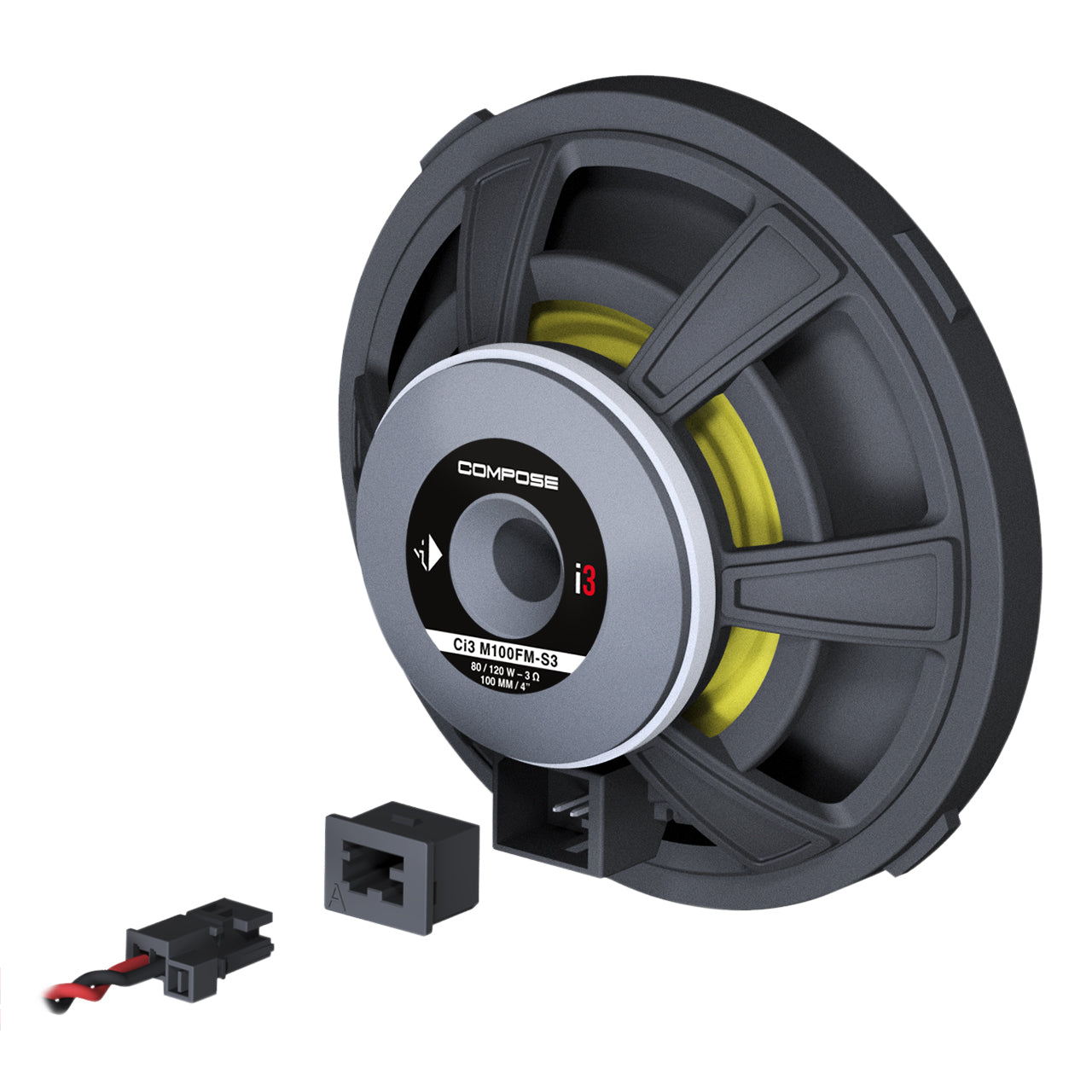

• Automotive grade FlexConnect terminal for fast, secure and fail-safe connection

• Shallow neodymium magnet system for low installation depth and high efficiency

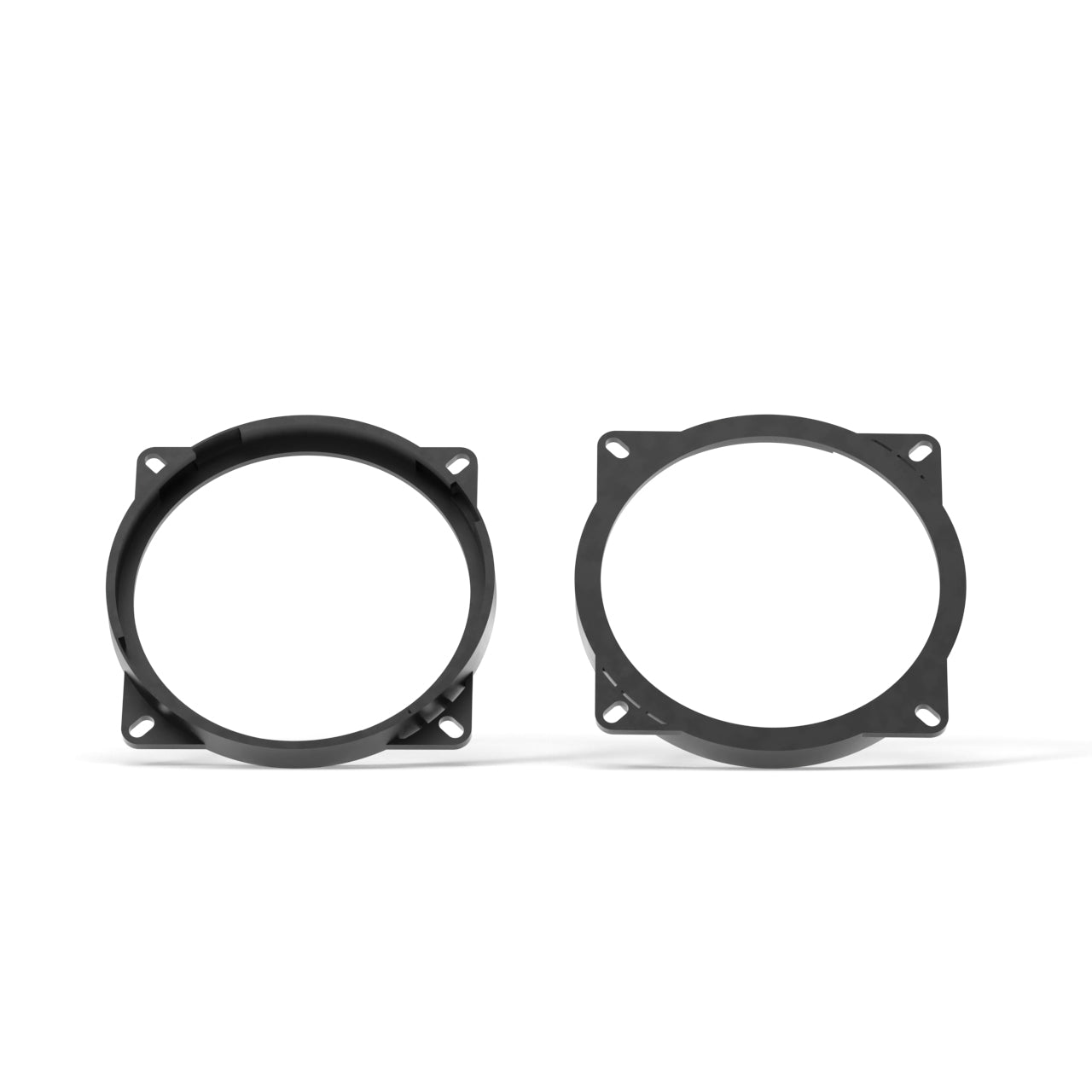

• Universal FlexMount100 mounting ring included in delivery

• Designed for the optionally available car-specific FlexMount100 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle

Technical data

• Power handling - 80w RMS

• Power Handling - 120w Peak

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.0 Ω

• Frequency response - 120 Hz - 6,000 Hz

• Resonance frequency - Fs - 146 Hz

• Mechanical Q factor - Qms - 4.49

• Electrical Q factor - Qes - 1.02

• Total Q factor - Qts - 0.83

• Compliance - Cms - 280 µm/N

• Equivalent air volume - Vas - 1.1 L

• Force factor - B*I - 3.4 Tm

• Sensitivity - SPL - 91 dB @ 2.83 V / 1m - 87 dB @ 1W / 1m

• Cone area - Sd - 53 cm²

• Moving mass - Mms - 4.3 g

• Cone material - Paper with Cenosphere coating

• Mechanical resistance - Rms - 0.87 kg/s

• Voice coil diameter - ø - 25 mm

• Voice coil winding height - 4.8 mm

• Max. linear excursion - Xmax - +/- 2.0 mm

• Outer diameter - ø - 98 mm / 3.86"

• Outer diameter with universal mounting ring - ø - 104,5 mm / 4.11"

• Installation diameter - ø - 89 mm / 3.50"

• Installation depth - 30 mm / 1.18"

• Features - FlexConnect terminal,

• powerful push-pull neodymium magnet system,

• FlexMount100

Compatibility

• FlexMount100

• FlexConnect Inlays

Scope of delivery

• 2 x Ci3 M100FM-S3

• 2 x Universal FlexMount100 (with standard 4-point mounting)

• 2 x FlexConnect inlay A

• 2 x Universal connection cable

• 2 x Mounting material
