Features

• 2-way performance speaker kit which combines high efficiency with outstanding sound quality

• 3 Ohms technology for maximized power output of the amplifier

• Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect

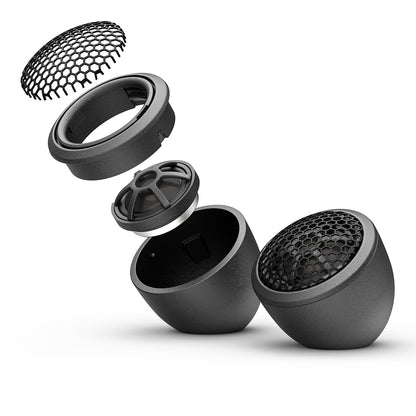

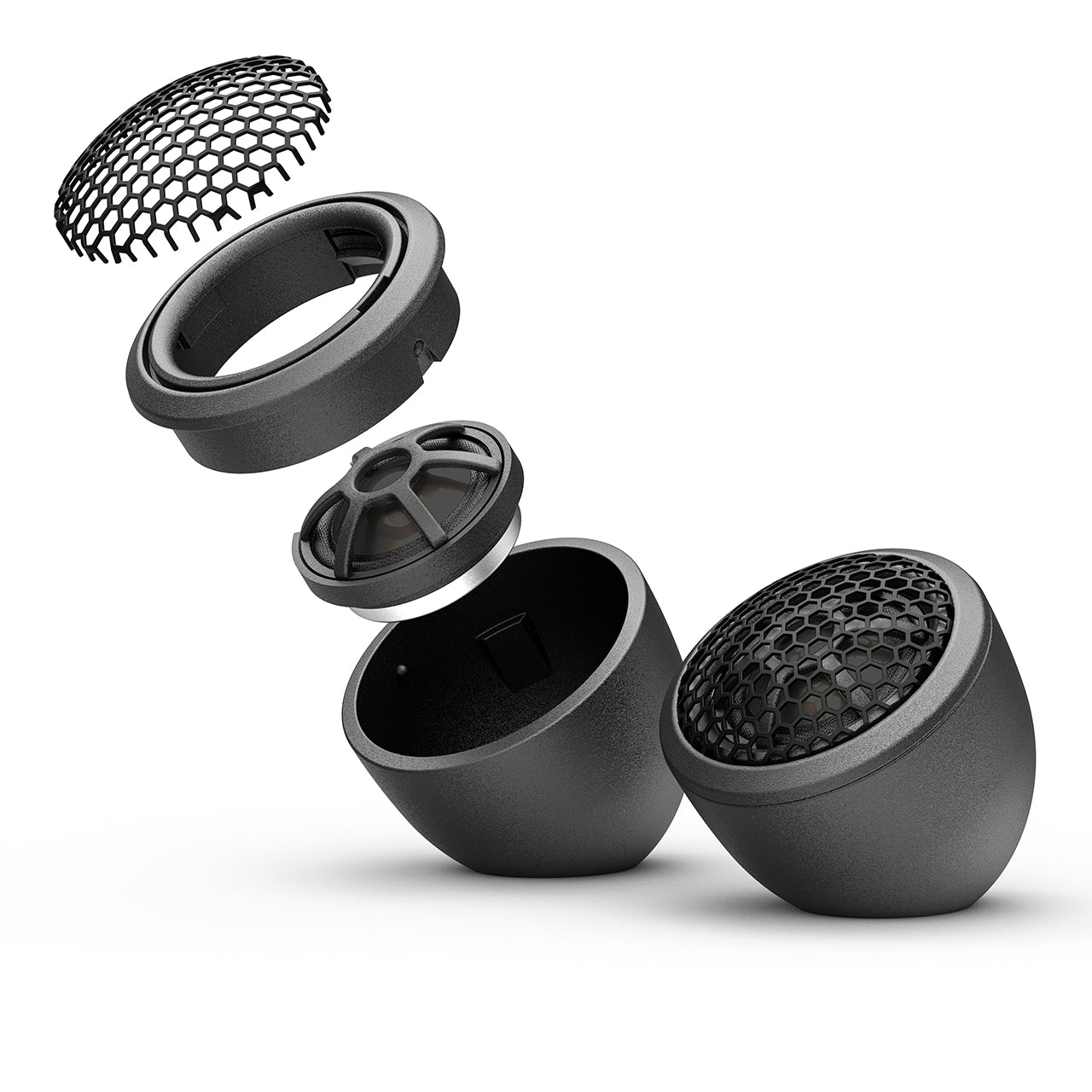

Tweeter

• 0.75” / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response

• High-quality aluminum dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction

• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance

• Compact design and various mounting options for numerous installation demands

• Mounting pods for flush mount and angle mount included in delivery

• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle

Midbass

• 5.25" / 130 mm midbass with unique Cenosphere coated paper cone for precise and detailed sound reproduction

• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing

• Powerful magnet system for high efficiency and optimum impulse response

• Polyurethane dustcap for optimized frequency response in the upper midrange area

Crossover

• Separate, high-grade crossover with compact dimensions for easy integration

• 6-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position

• Extensively fine-tuned – with 12 dB slope for tweeter

• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Technical data

• Power Handling - 90w RMS

• Power Handling - 135w Peak

• Frequency response - 80 Hz - 25,000 Hz

• Impedance - Z - 3 Ω

• Sensitivity -  SPL - 91 dB @ 2.83V / 1m - 87 dB @ 1W / 1m

• Tweeter Outer Diameter - 32.0 mm / 1.26”

• Midbass Outer Diameter 130.0 mm / 5.12”

• Tweeter Installation Diameter - 32.0 mm / 1.26”

• Midbass Installation Depth - 116.5 mm / 4.59”

• Tweeter Installation Depth - 9.8 mm / 0.39”

• Midbass Installation Depth - 55.4 mm / 2.18”

• Dimensions crossover - 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98”



Midbass

• Impedance - Z - 3 Ω

• DC resistance - Re - 3.1 Ω

• Resonance frequency - Fs - 89 Hz

• Mechanical Q factor - Qms - 3.11

• Electrical Q factor - Qes - 0.97

• Total Q factor - Qts  - 0.74

• Compliance - Cms - 350 μm/N

• Equivalent air volume - Vas - 4.6 L

• Force factor - B*l - 4.0 Tm

• Cone area - Sd - 98 cm2

• Moving mass - Mms - 9.1 g

• Mechanical resistance - Rms - 1.65 kg/s

• Voice coil diameter -  ø - 25 mm

• Voice coil winding height - 10.5 mm

• Max. linear excursion - Xmax - +/- 3.2 mm

Tweeter

• Impedance - Z - 4 Ω

• Resonance frequency - Fs - 1800 Hz

• Voice coil diameter - ø - 20 mm

Features

• Tweeter - Ultra compact, aluminum dome, neodymium magnet and FlexMount20

• Midbass - Paper with Cenosphere coating and ProConnect terminal

• Crossover Point Tweeter - 12 dB highpass, protection and level adjustment

• Crossover Point Midbass - 6 dB lowpass

Compatibility

• FlexMount20

• WireKits

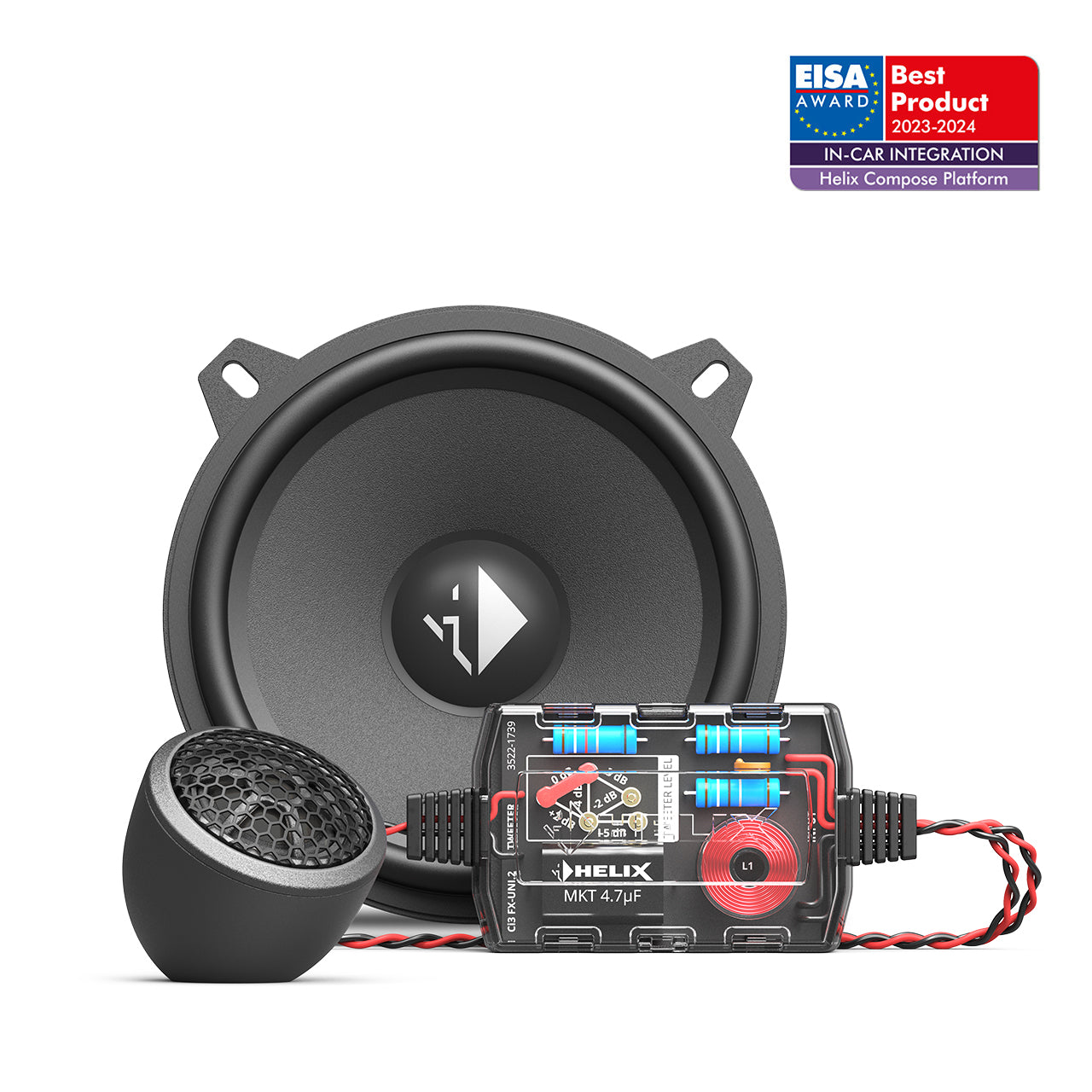

Scope of delivery

• 2 x Tweeter Ci3 T20FM-AL MK2

• 2 x Midbass Ci3 W130-S3

• 2 x Crossover Ci3 FX-UNI.2

• 2 x Lowpass cable crossover Ci3 FX-WLP.2

• 2 x Tweeter mounting accessories

• 2 x COMPOSE Connect Kit

• 1 x Mounting material
