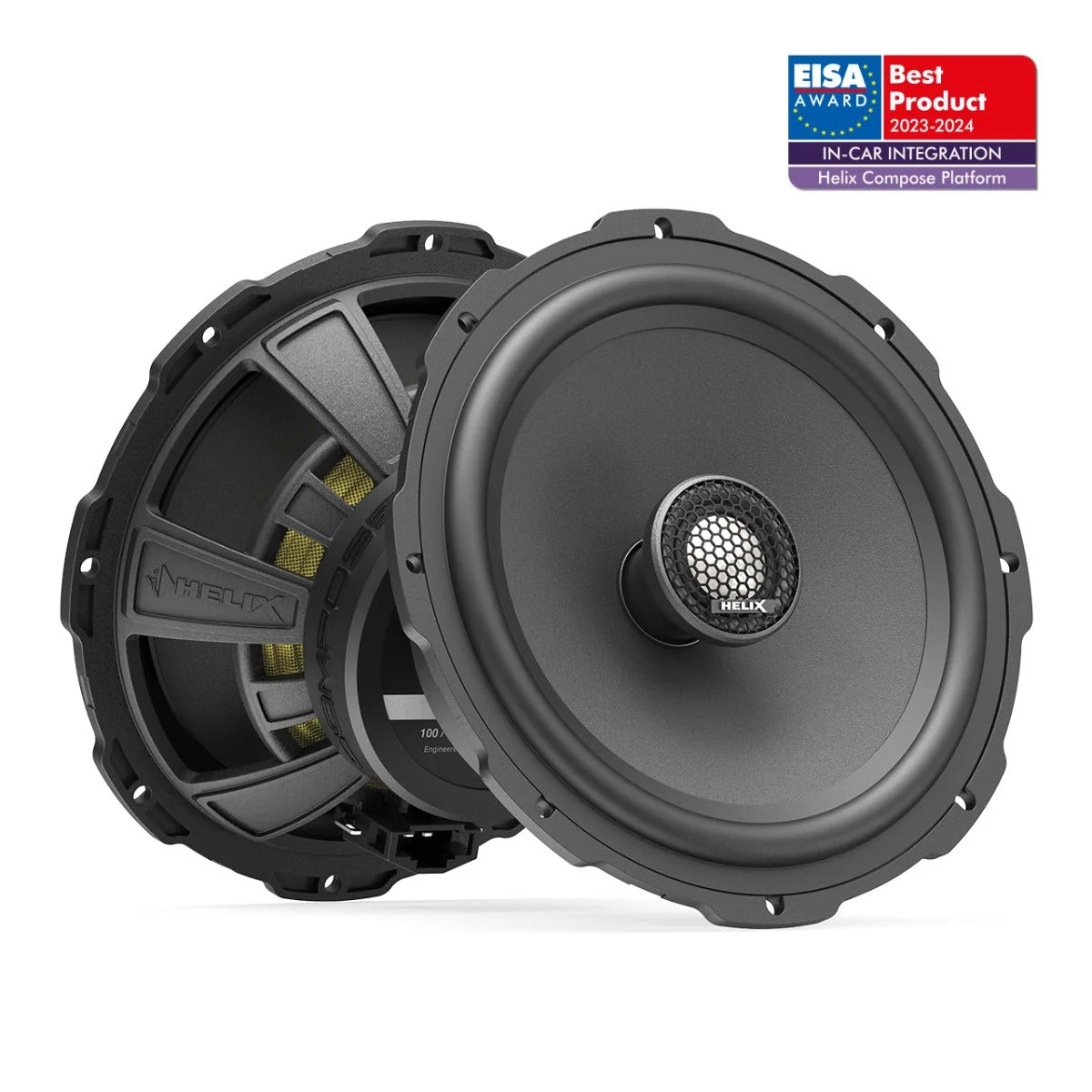

COMPOSE Connect
2-way performance coaxial which combines outstanding sound quality with versatile physical integration options. High efficiency and 3 Ohms technology for maximized power output of the amplifier. Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect

Tweeter

• 0.75” / 20 mm performance tweeter with black aluminium dome for accurate, pure and detailed treble response
• High-quality aluminium dome with perfect balance of low weight and high rigidity – for natural brilliance and fine detail reproduction
• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance
• Compact design and various mounting options for numerous installation demands
• Mounting pods for flush mount and angle mount included in deliver

Midbass

• 6.5" / 165 mm mid bass with unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Powerful magnet system for high efficiency and optimum impulse response
• Polyurethane dust cap for optimized frequency response in the upper midrange area

Crossover

• Intergrated with 6 dB, high-grade crossover with compact dimensions for easy integration


Designed for optionally available, car-specific WireKits which allow a non-destructive integration. Designed for the optionally available car-specific FlexMount165 & FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle

• Power handling RMS - 100 / Max - 150 Watts
• Frequency response: 60 Hz - 25,000 Hz
• Impedance: 3 Ω
• Sensitivity SPL 92 dB @ 2.83V / 1m
• 88 dB @ 1W / 1m

Installation diameter

• Midbass: 142.0 mm / 5.59”

Installation depth

• Midbass: 60.7 mm / 2.39”
