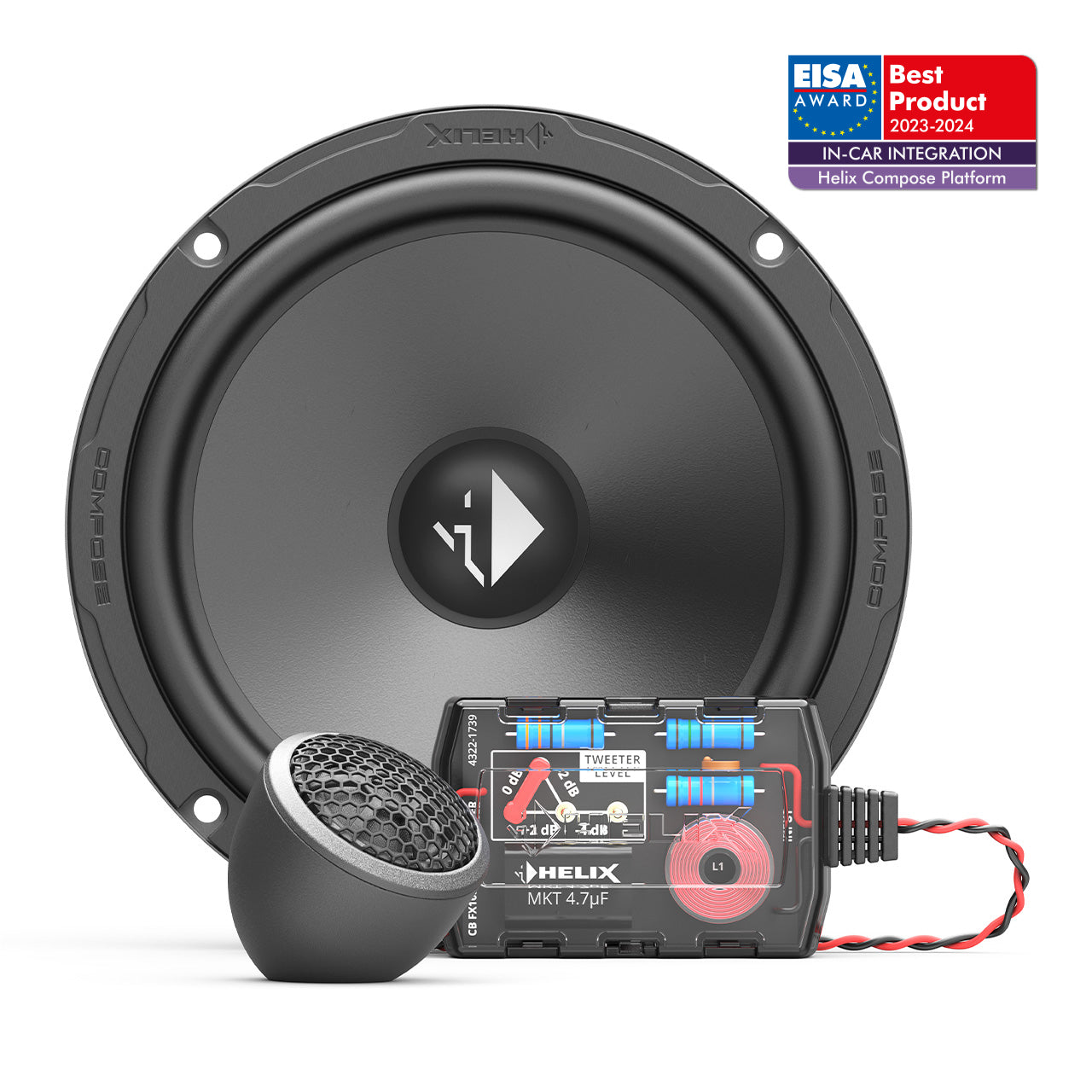

Features

• 2-way speaker kit which combines high efficiency with exceptional sound performance

• 3 Ohms technology for maximized power output of the amplifier

• Compact design for trouble-free installation even in cramped conditions

Tweeter

• 0.75” / 20 mm tweeter with silk dome for brilliant and clear treble response

• Very efficient neodymium magnet for high magnetic flux linearity

• Compact design and various mounting options for numerous installation demands

• Mounting pods for flush mount and angle mount included in delivery

• Designed for the optionally available car-specific FlexMount20 adaptors which allow an acoustically optimized and professional integration in the original mounting locations of the vehicle

Midbass

• 6.5” / 165 mm midbass with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance

• Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling

• Powerful magnet system for optimum impulse control

• Polyurethane dustcap for optimized frequency response in the upper midrange area

Crossover

• Separate, high quality crossover with compact dimensions for easy integration

• 4-stage tweeter level adjustment with integrated tweeter protection for optimized treble adaptation to mounting position

• Extensively fine-tuned – with 12 dB slope for tweeter

Technical data

• Power handling RMS / Max. P - 80 / 120 Watts

• Frequency response - 60 Hz - 22,000 Hz

• Impedance Z - 3 Ω

• Sensitivity SPL - 92 dB @ 2.83V / 1m - 88 dB @ 1W / 1m

Outer diameter ø

• Tweeter: 32.0 mm / 1.26”

• Midbass: 166.0 mm / 6.54”

Installation diameter ø

• Tweeter: 32.0 mm / 1.26”

• Midbass: 143.0 mm / 5.63”

Installation depth

• Tweeter: 9.8 mm / 0.39”

• Midbass: 61.4 mm / 2.42”

Dimensions crossover

• 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98”

Midbass

• Impedance Z - 3 Ω

• DC resistance Re - 3.0 Ω

• Resonance frequency Fs - 62 Hz

• Mechanical Q factor Qms - 4.50

• Electrical Q factor Qes - 0.90

• Total Q factor Qts - 0.75

• Compliance Cms - 520 μm/N

• Equivalent air volume Vas - 14.5 L

• Force factor B*l - 4.1 Tm

• Cone area Sd - 141 cm2

• Moving mass Mms - 13.2 g

• Mechanical resistance Rms - 1.10 kg/s

• Voice coil diameter ø - 25 mm

• Voice coil winding height - 8.9 mm

• Max. linear excursion Xmax - +/- 2.5 mm

Tweeter

• Impedance Z - 4 Ω

• Resonance frequency Fs - 2000 Hz

• Voice coil diameter ø - 20 mm

Features

• Tweeter - Ultra compact, silk dome, neodymium magnet and FlexMount20

• Midbass - Injected polypropylene cone

• Crossover - Tweeter: 12 dB highpass, protection and level adjustment

Compatibility

• FlexMount20

Scope of delivery

• 2 x Tweeter CB T20FM-S

• 2 x Midbass CB W165-S3

• 2 x Crossover CB FX165.2

• 2 x Tweeter mounting accessories

• 1 x Mounting material
