Technical Data:

Power RMS  ≤ 1% THD+N @ 14.4 V

• @ 4 Ohms: 6 x 100 Watts

• @ 2 Ohms: 6 x 190 Watts

• Bridged @ 4 Ohms  3 x 380 Watts

• Max. output power per channel: Up to 240 Watts RMS @ 2 Ohms

• Up to 480 Watts RMS @ 4 Ohms bridged

Technical Features:

• Amplifier technology Class D

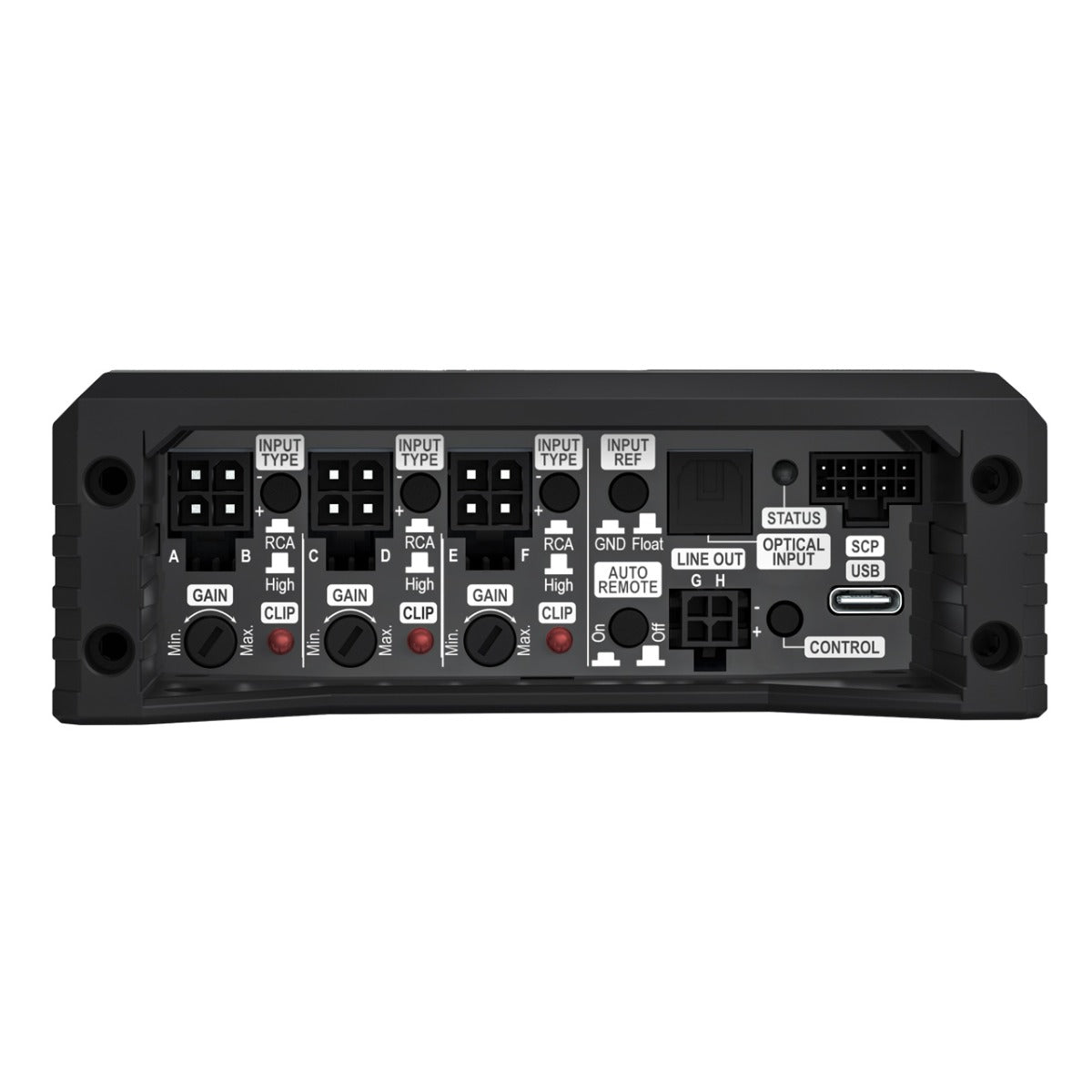

• Inputs 6 x RCA / Cinch

• 6 x Highlevel speaker input

• 1 x Optical SPDIF (12 - 96 kHz)

• 2 x Remote In

• Input sensitivity: RCA / Cinch:1 - 8 Volts

• Highlevel: 2 - 16 Volts

• Input impedance: RCA / Cinch 4,8 kOhms

• Highlevel: 9 - 33 Ohms or 20 kOhms with ADEP.3

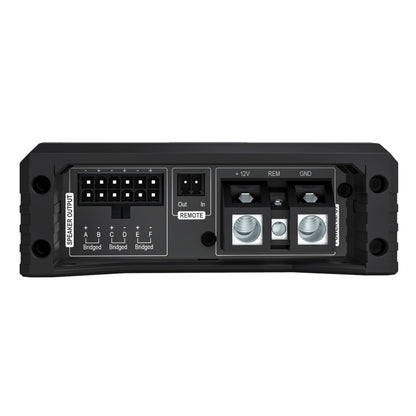

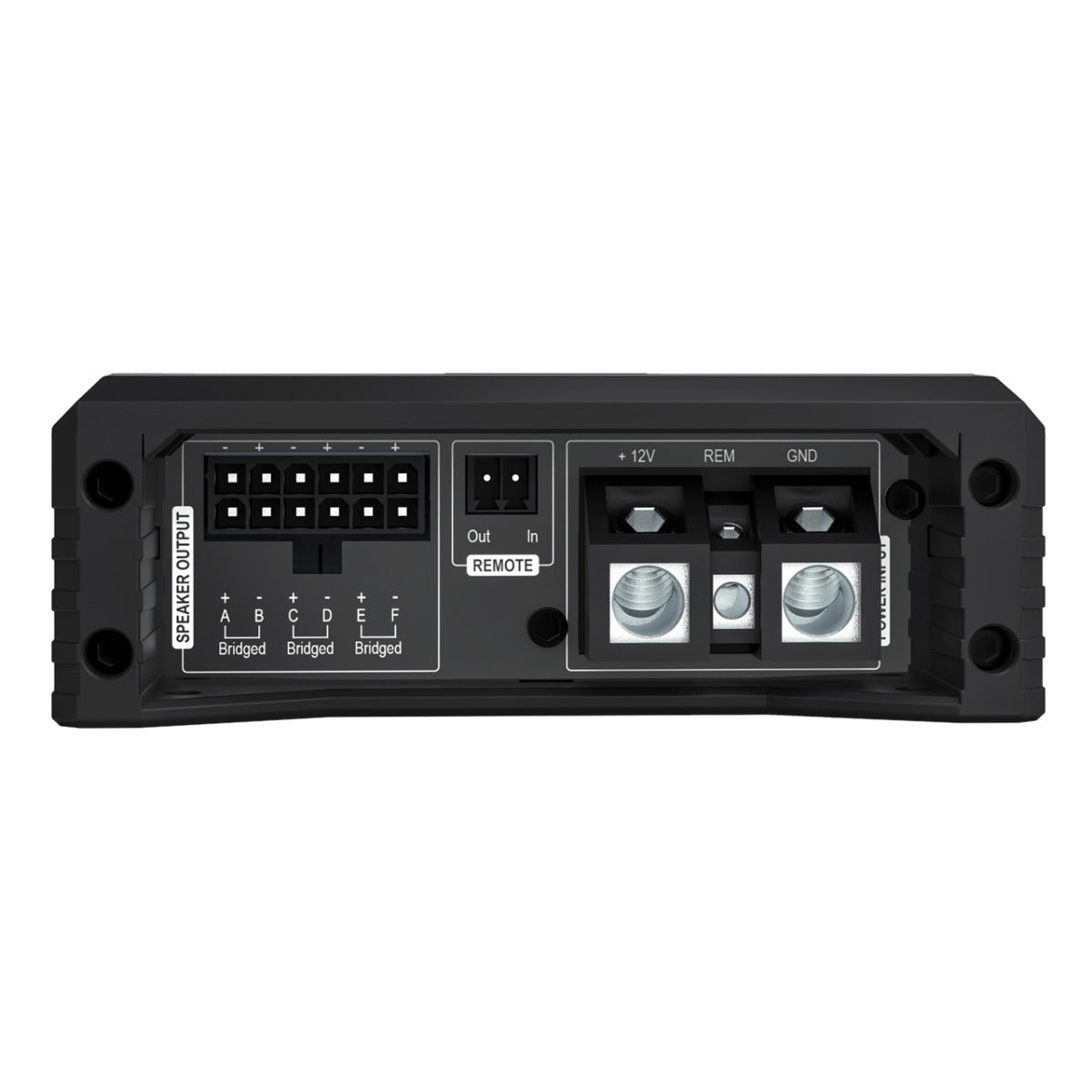

• Outputs: 6 x Speaker output

• 2 x RCA / Cinch

• 1 x Remote Out

• Output voltage RCA / Cinch 8 Volts

• Frequency response: 20 Hz - 22,000 Hz

• DSP resolution: 64 Bit

• DSP power: 1 x 295 MHz (1.2 billion MAC operations/second)

• Sampling rate : 48 kHz

• DSP type: 1 x Audio signal processor

• Signal converters: A/D: BurrBrown 24 Bit

• D/A: AKM 24 Bit

• Signal-to-noise ratio (A-weighted) Analog input: 99 dB @ full power

• Digital input: 102 dB @ full power

• Distortion (THD @ 1 kHz, 1 W into 4 Ohms)               < 0.005 %

• Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms)        < 0.02 %

• Damping factor: 70

• Operating voltage: 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

• Power rating: DC 12 V ⎓ 93 A max.

• Idle current: 1,100 mA

• Max. remote output current: 500 mA

• Operating temperature range: -40 °C to +70 °C

• Fuse: 3 x 25 A LP-Mini-fuse (APS)

• Additional features: ADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor

• Dimensions (H x W x D): 40 x 263 x 114 mm / 1.58 x 10.35 x 4.49”

*One channel driven (≤ 10 % THD+N @ 14.4 V)*

Box Contents:

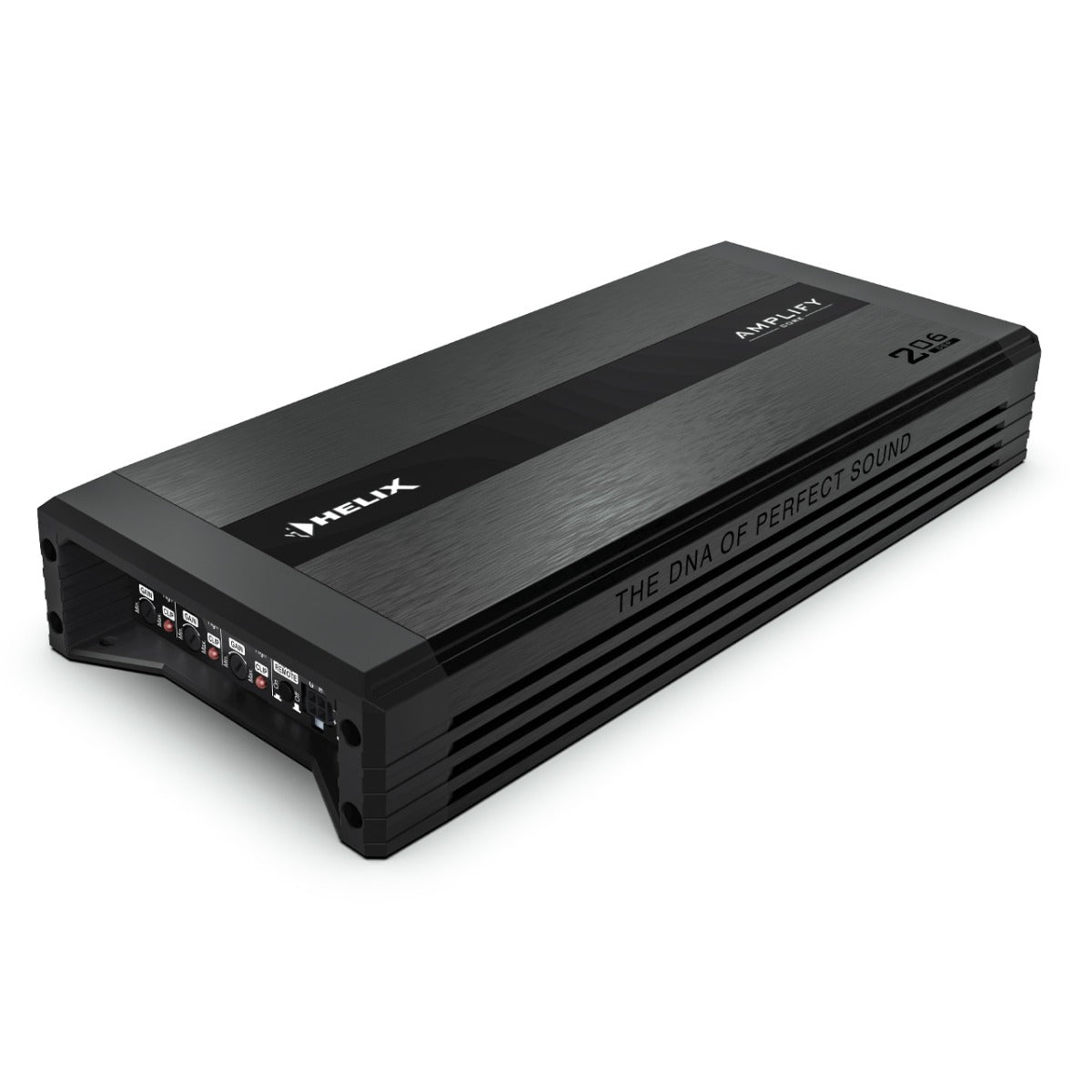

• 1 x Amplifier HELIX AMPLIFY 206 DSP

• 2 x Allen key

• 1 x Mounting material

• 5 x Connection cable

• 1 x USB cable

• 3 x Fuse

• 1 x Instruction manual
