Technical Data:

Power RMS  ≤ 1% THD+N @ 14.4 V

• @ 4 Ohms     6 x 100 Watts

• @ 2 Ohms     6 x 190 Watts

• Bridged @ 4 Ohms  3 x 380 Watts

• Max. output power per channel: Up to 240 Watts RMS @ 2 Ohms

• Up to 480 Watts RMS @ 4 Ohms bridged

Technical Features:

• Amplifier technology Class D

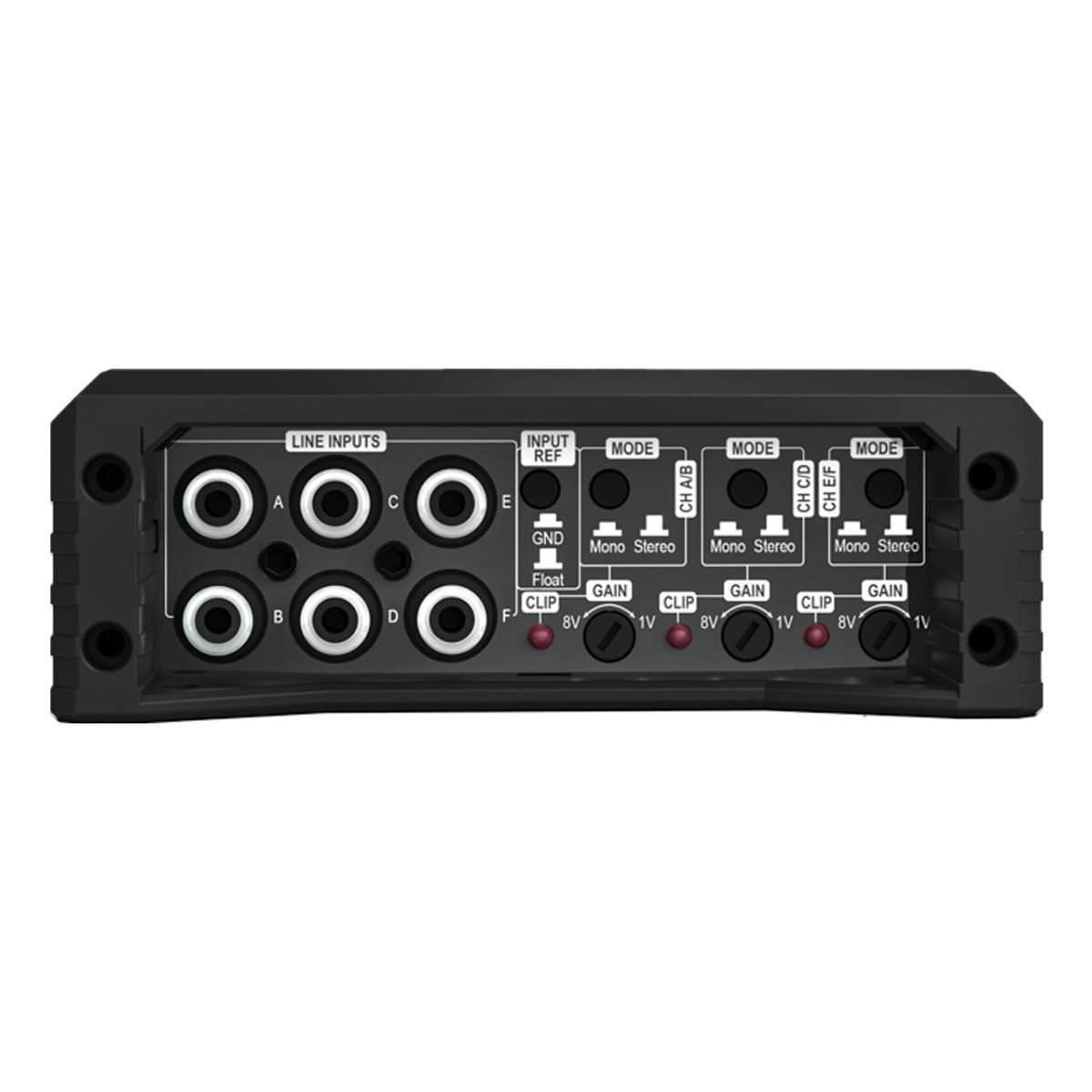

• Inputs 6 x RCA / Cinch

• 1 x Remote In

• Input sensitivity: 1 - 8 Volts

• Input impedance: 6 kOhms

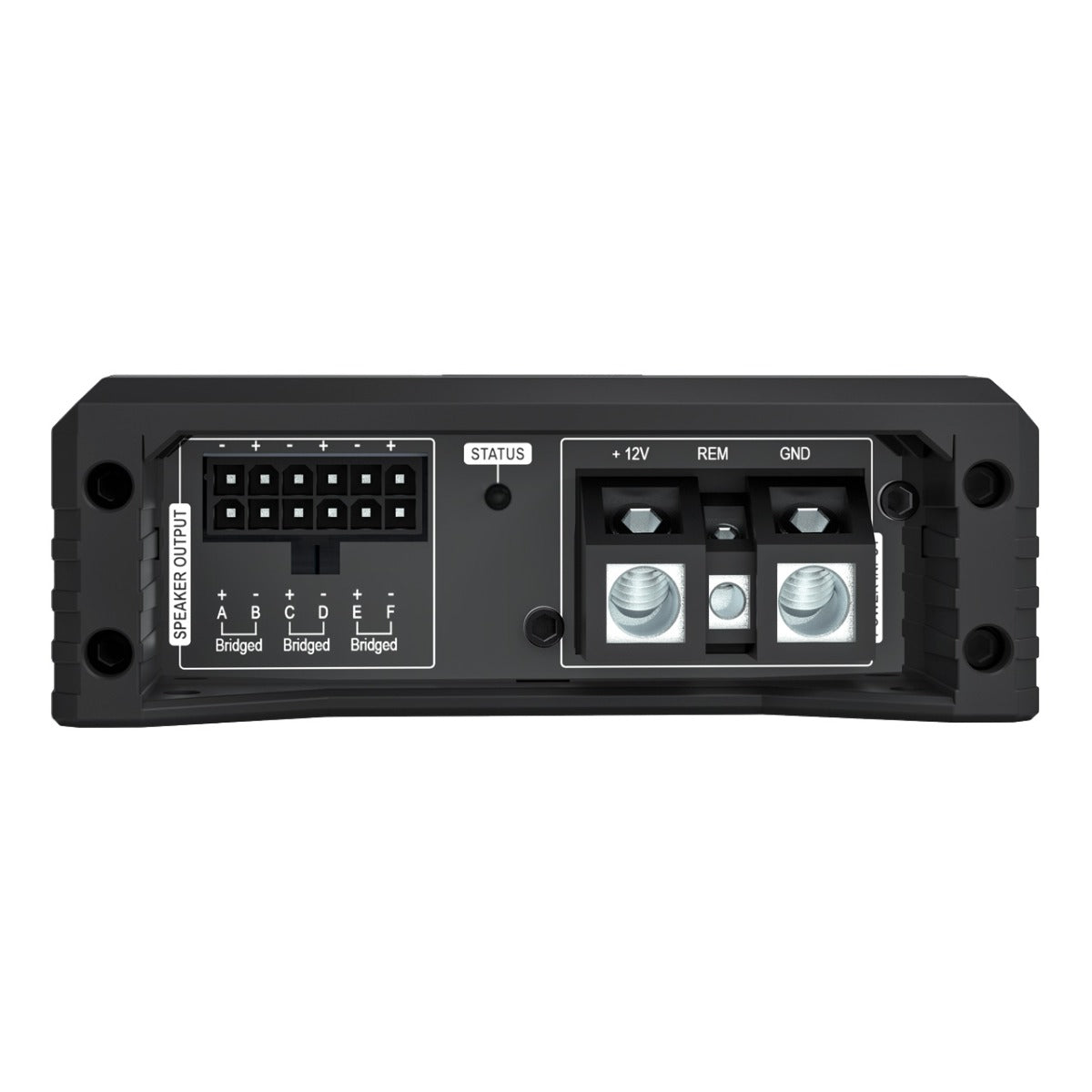

• Outputs: 6 x Speaker output

• Output voltage RCA / Cinch

• Signal converter for digital input

• Frequency response: 10 Hz - 22,000 Hz

• Signal-to-noise ratio (A-weighted): 103 dB @ full power

• Distortion (THD @ 1 kHz, 1 W into 4 Ohms) < 0.003%

• Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) < 0.015 %

• Damping factor: 70

• Operating voltage: 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

• Idle current: 1,100 mA

• Fuse: 3 x 25 A LP-Mini-fuse (APS)

• Power rating: DC 12 V ⎓ 93 A max.

• Operating temperature range: -40 °C to +70 °C

• Additional features: Start-Stop capability, Clipping LED, DirectDSP inputs

• Dimensions (H x W x D): 40 x 263 x 114 mm / 1.58 x 10.35 x 4.49”

 * One channel driven (≤ 10 % THD+N @ 14.4 V)*

Box Contents:

• 1 x Amplifier HELIX AMPLIFY 206 DIRECT
• 2 x Allen key
• 1 x Mounting material
• 1 x Connection cable
• 3 x Fuse
• 1 x Instruction manual
