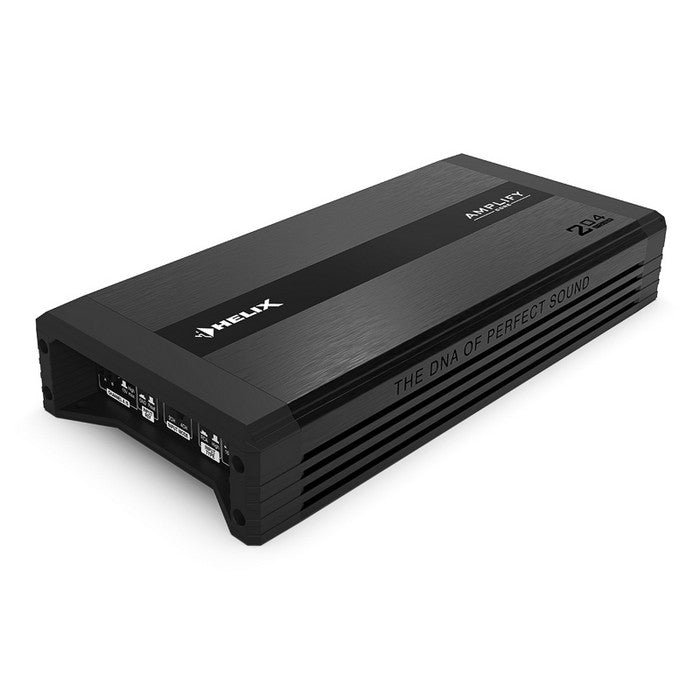

Whether as a classic 4-channel system, a 3-channel configuration with subwoofer, or a bridged 2-channel layout: the 204 adapts flexibly to a wide range of vehicles and system requirements. With an output of 4 x 100 watts RMS at 4 Ω, 4 x 190 watts RMS at 2 Ω, or 2 x 380 watts RMS bridged at 4 Ω, it delivers more than enough power for ambitious setups. Available as an X-OVER version with integrated active crossover or a DIRECT model optimized for pure signal transmission via external DSPs – always with a focus on superior sound performance.

Technical data:

Power RMS  ≤ 1% THD+N @ 14.4 V

• @ 4 Ohms     4 x 100 Watts

• @ 2 Ohms     4 x 190 Watts

• bridged @ 4 Ohms   2 x 380 Watts

• Max. output power per channel*     Up to 240 Watts RMS @ 2 Ohms

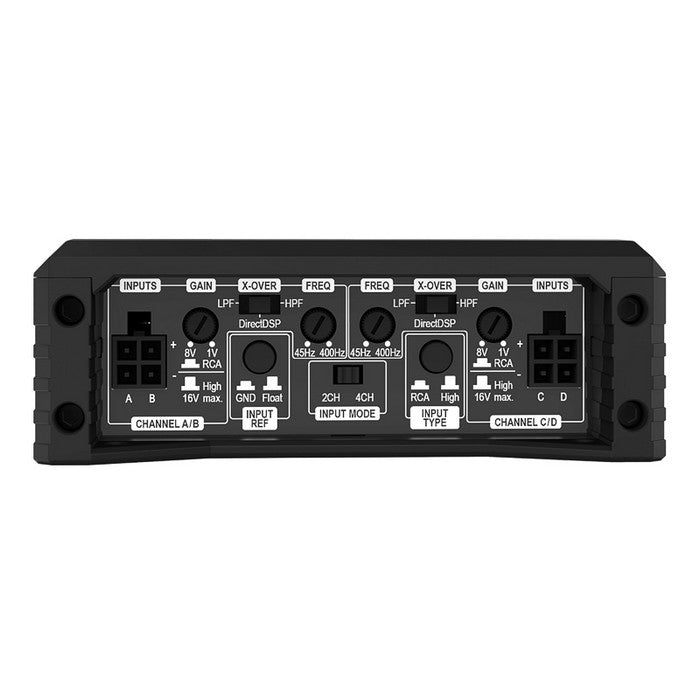

Technical Features:

• Amplifier technology Class D

• Inputs 4 x RCA / Cinch

• 4 x Highlevel speaker input

• 1 x Remote In

• Input sensitivity: RCA / Cinch: 1 - 8 Volts

• Highlevel: 2 - 16 Volts

• Input impedance: RCA / Cinch: 8 kOhms

• Highlevel: 9 - 33 Ohms

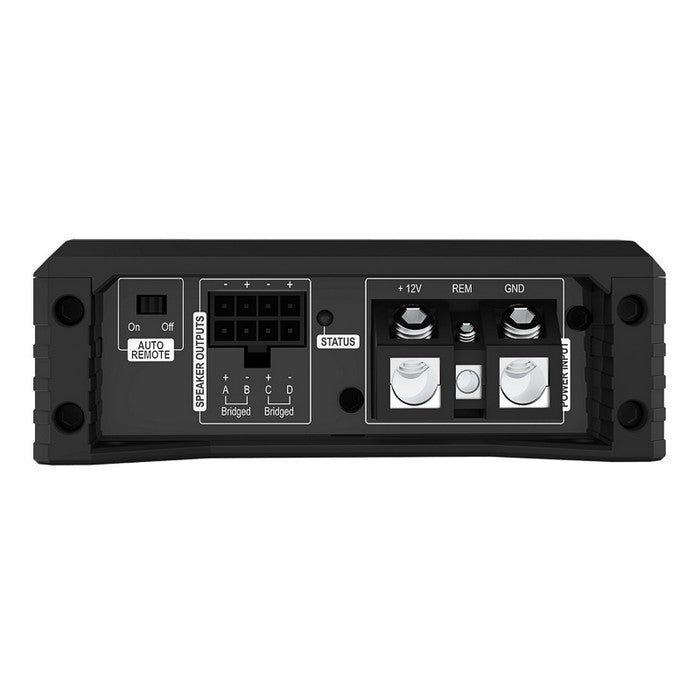

• Outputs: 4 x Speaker output

• Frequency response: 10 Hz - 20.000 Hz

• Highpass: 45 Hz - 400 Hz adjustable (can be turned off)

• Lowpass: 45 Hz - 400 Hz adjustable (can be turned off)

• Slope high- / lowpass Highpass: 12 dB/Oct.

• Lowpass: 12 dB/Oct.

• Signal-to-noise ratio (A-weighted): 99 dB @ full power

• Distortion (THD @ 1 kHz, 1 W into 4 Ohms) < 0.012%

• Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) < 0.02 %

• Distortion (THD @ 100 Hz, 1 W into 4 Ohms)

• Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms)

• Damping factor: 70

• Operating voltage: 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

• Idle current: 1,100 mA

• Fuse: 2 x 30 A LP-Mini-fuse (APS)

• Power rating: DC 12 V ⎓ 70 A max.

• Operating temperature range: -40 °C to +70 °C

• Additional features: Active, adjustable crossover, input mode switch, Start-Stop capability, highlevel input with automatic turn-on function, ADEP.3, DirectDSP function

• Dimensions (H x W x D): 40 x 248 x 114 mm / 1.58 x 9.76 x 4.49”

 * One channel driven (≤ 10 % THD+N @ 14.4 V)*

Box Contents:

• 1 x Amplifier HELIX AMPLIFY 204 X-OVER

• 2 x Allen key

• 3 x Connection cable

• 2 x Fuse

• 1 x Mounting material

• 1 x Instruction manual
