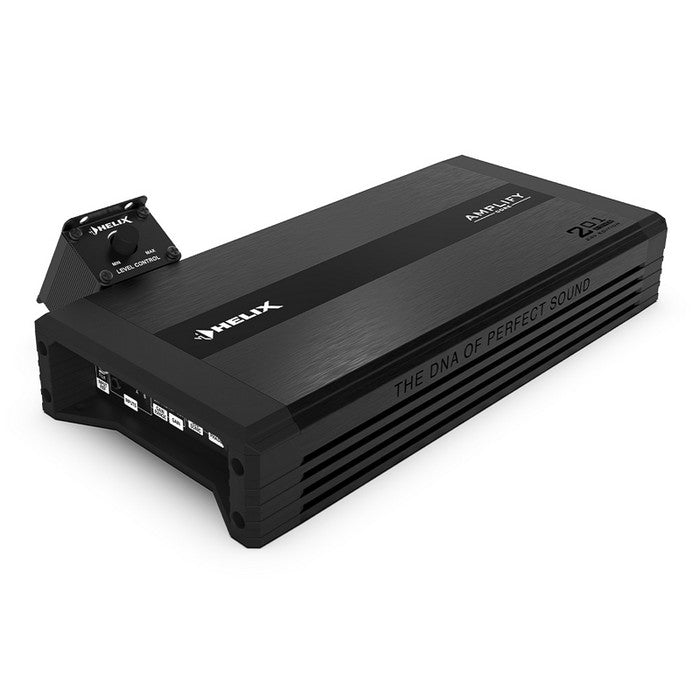

With up to 750 W RMS at 1 Ohm, adjustable subsonic and lowpass filters, and phase control in the X-OVER version – or an uncompromised signal path in the DIRECT model – along with their compact footprint, the AMPLIFY 201 amplifiers are the perfect choice for targeted subwoofer upgrades in modern sound systems.

Technical data:

Power RMS  ≤ 1% THD+N @ 14.4 V

• @ 4 Ohms     1 x 250 Watts

• @ 2 Ohms     1 x 450 Watts

• @ 1 Ohm      1 x 750 Watts

• Max. output power  Up to 850 Watts RMS @ 1 Ohm

Technicaly Features:

• Amplifier technology Class D

• Inputs 1 x RCA / Cinch

• 2 x Highlevel speaker input

• 1 x Remote In

• 1 x Remote control input

• Input sensitivity: RCA / Cinch: 0.5 - 6 Volts

• Highlevel: 3 - 32 Volts

• Input impedance: RCA / Cinch: 8 kOhms

• Highlevel: 9 - 33 Ohms

• Outputs: 1 x Speaker output

• Frequency response: 10 Hz - 250 Hz

• Lowpass: 50 Hz - 250 Hz adjustable

• Subsonic: 10 Hz - 50 Hz adjustable

• Phase: 0° - 180° adjustable

• Slope high- / lowpass Lowpass: 12 dB/Oct.

• Slope subsonic: 12 dB/Oct.

• Signal-to-noise ratio (A-weighted): 114 dB @ full power

• Distortion (THD @ 100 Hz, 1 W into 4 Ohms) < 0.003%

• Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) < 0.02 %

• Damping factor: 200

• Operating voltage: 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

• Idle current: 1,100 mA

• Fuse: 2 x 30 A LP-Mini-fuse (APS)

• Power rating: DC 12 V ⎓ 80 A max.

• Operating temperature range: -40 °C to +70 °C

• Additional features: Active, adjustable crossover, Start-Stop capability, highlevel input with automatic turn-on function, ADEP.3

• Dimensions (H x W x D): 40 x 248 x 114 mm / 1.58 x 9.76 x 4.49”

*Continuous 1 Ohm power achieved only with music signal*

Box Contents:

• 1 x Cable remote control
• 2 x Allen key
• 1 x Connection cable
• 2 x Fuse
• 1 x Mounting material
• 1 x Instruction manual
