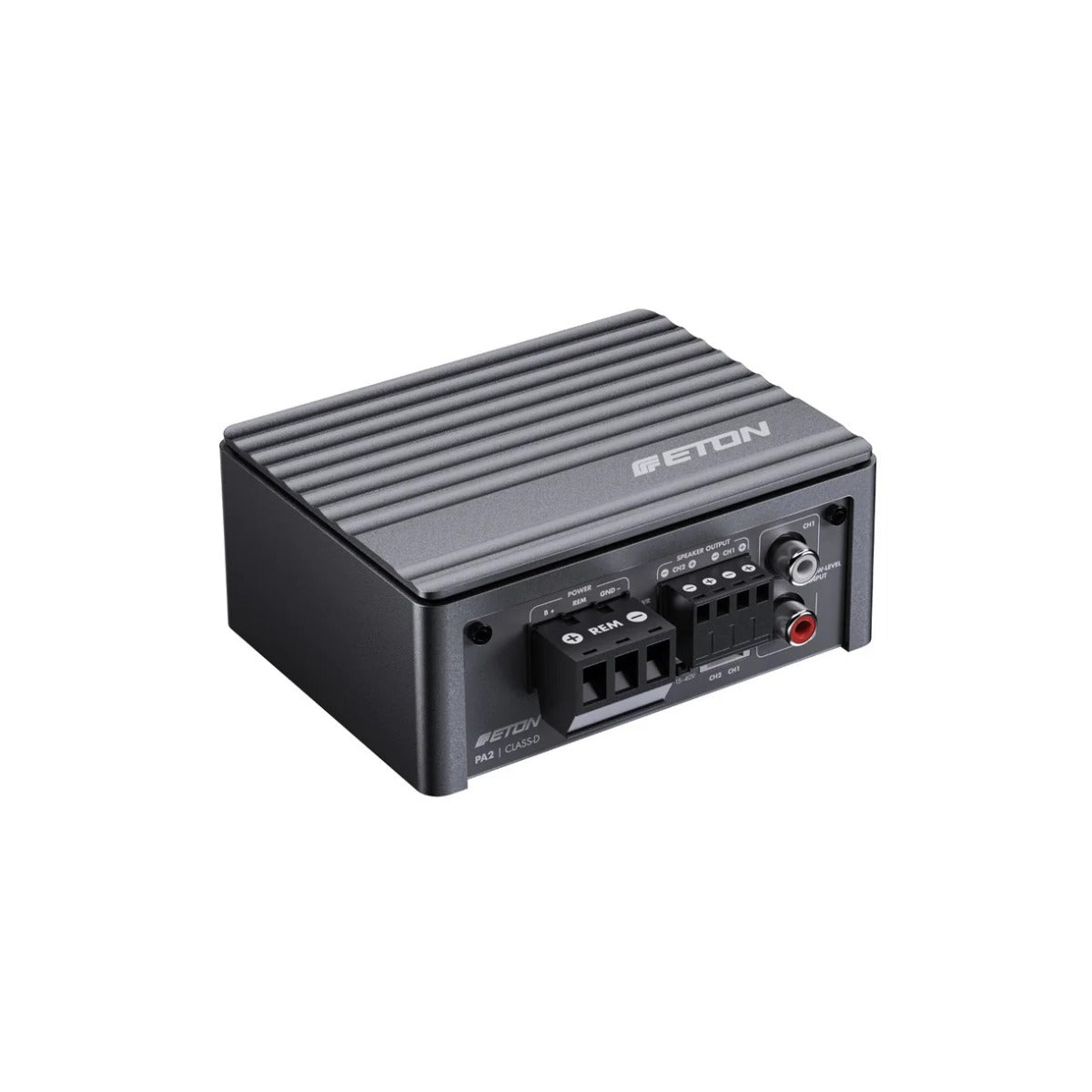

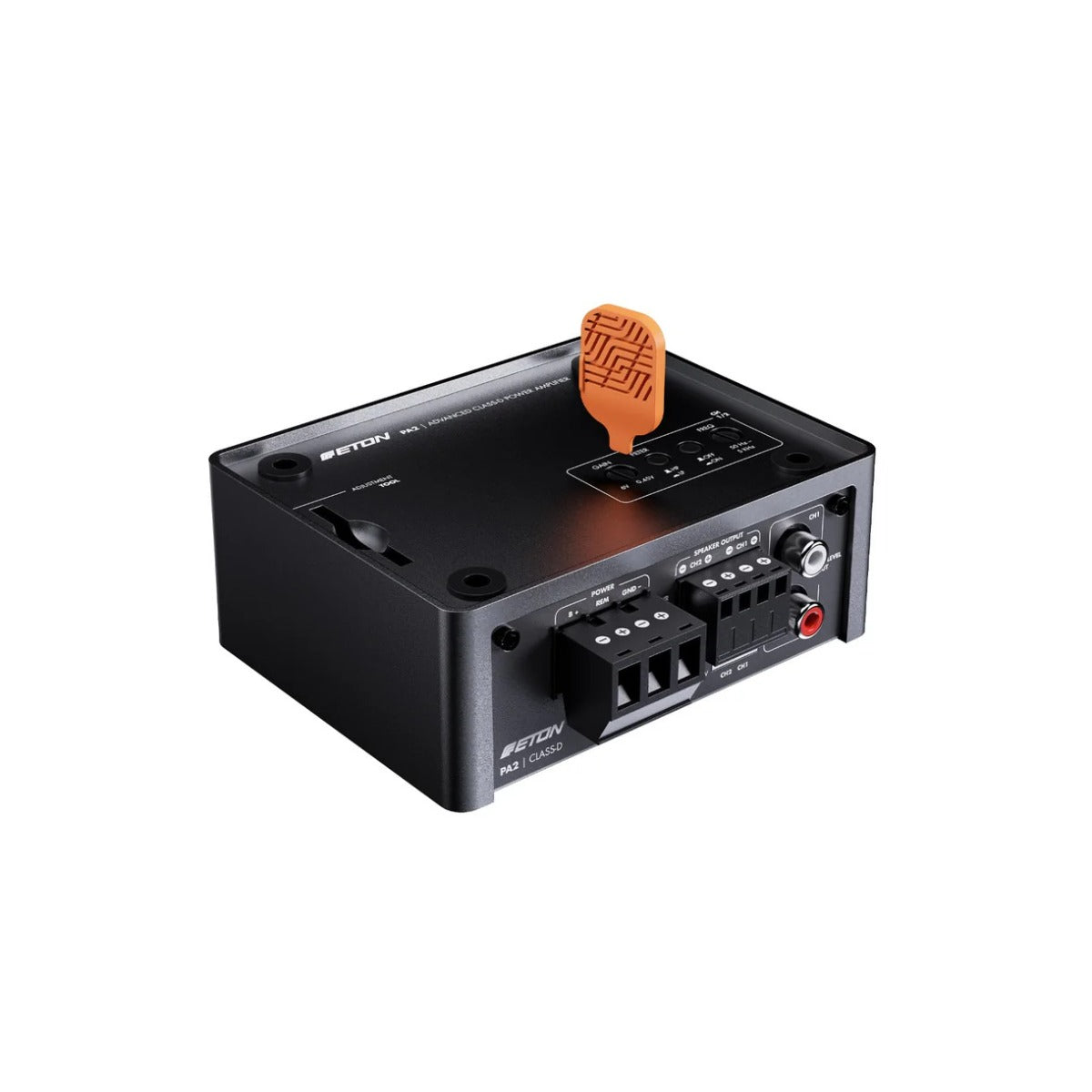

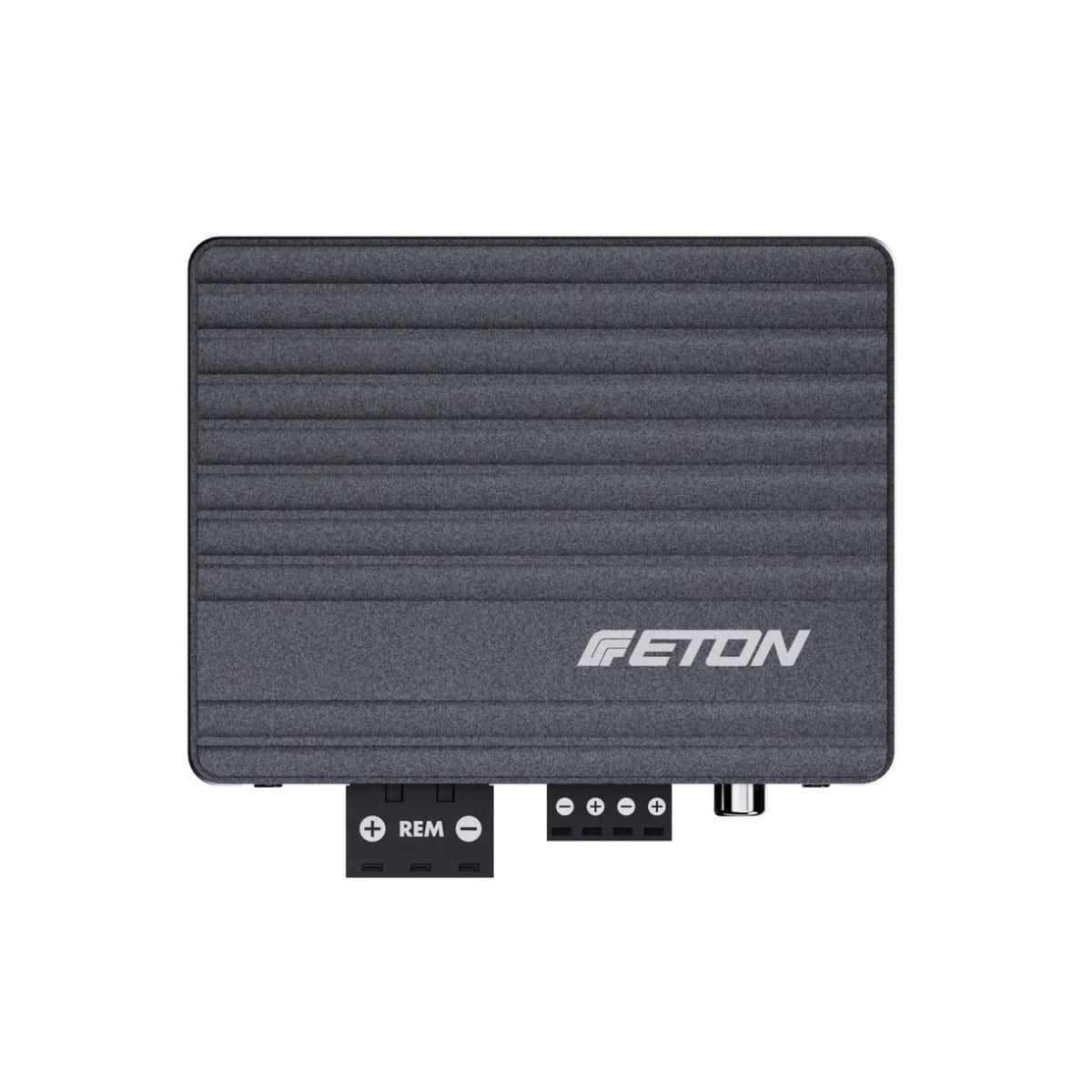

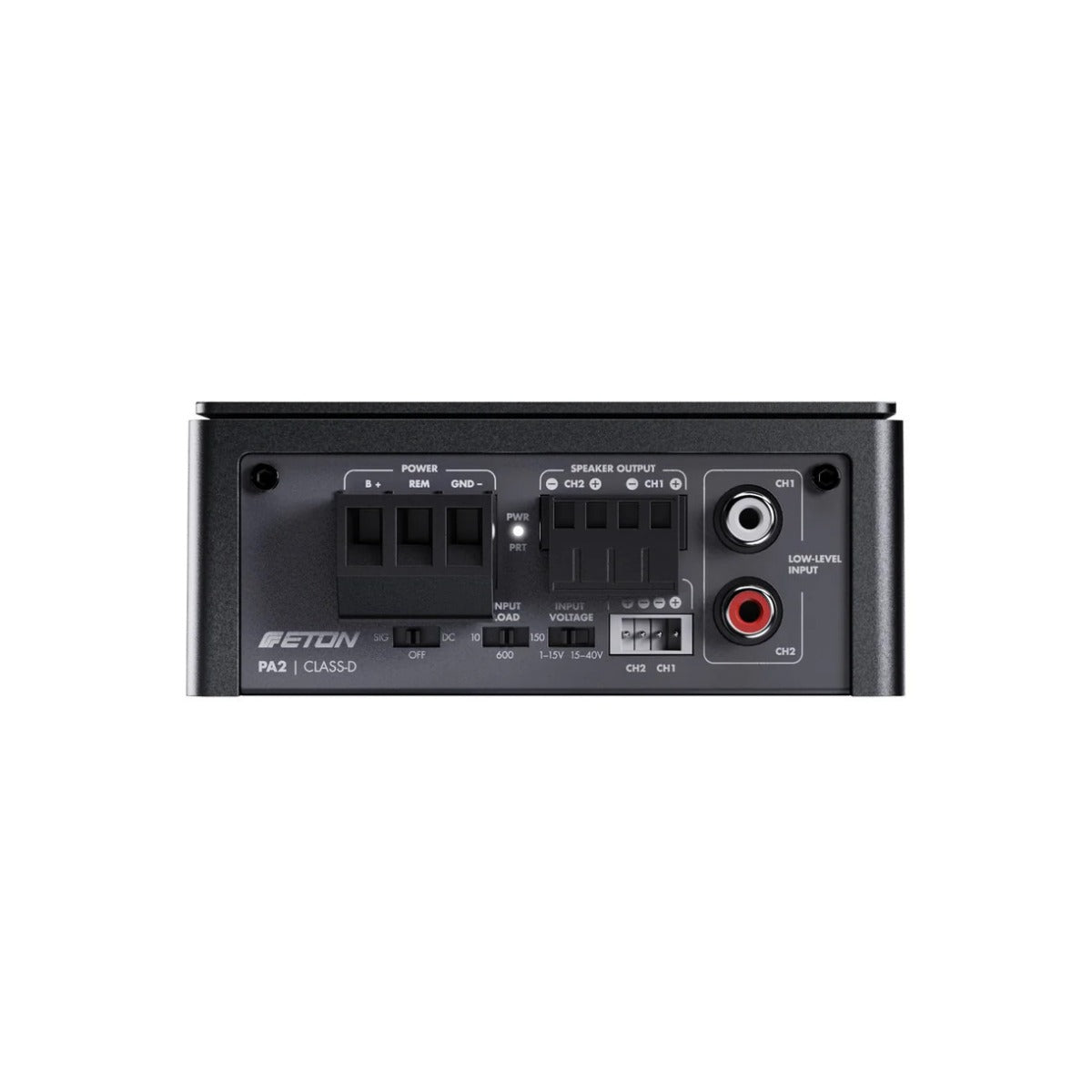

The ETON PA 2 is a 2 channel Advanced Class-D power amplifier with state-of-the-art amplifier technology and high-quality die-cast aluminum housing with removable cover. The integrated adjustment tool makes it easy to adjust the amplifier, even overhead or in confined spaces.

Specifications

• Advanced Class-D Amplifier 2-channel

• Power at 4 ohms 2 x 85 W (RMS)

• Power at 2 ohms 2 x 140 W (RMS)

• Power at 4 ohms bridged 1 x 285 W (RMS)

• HPF / Highpass-filter 25 Hz – 250 Hz / 12 dB

• LPF / Lowpass-filter 25 Hz – 250 Hz / 12 dB

• High-Level input 2-channel with 10 / 150 / 600 Ω

• 1 – 15 V / 15 – 40 V

• Low-Level input RCA 2-channel

• Gain / Level adjustment 6 V - 0.45 V

• Signal noise ratio 88 dB

• Damping factor @ 4 ohms >40

• THD+N 0.01% @ 10 W 1 kHz

• Auto-Turn On function SIG / DC

• Suitable for vehicles with start/stop function yes / 8.5 – 15.5 V

• Recommended fuse 40 A

• Recommended power cable min. 9 AWG

• fine stranded copper wire

• Weight 0,65 kgs

• Dimensions (L x W x H) in mm 110 x 85 x 45 mm

What's Included

• Eton PA 2 Amp

• Hi Level Input
