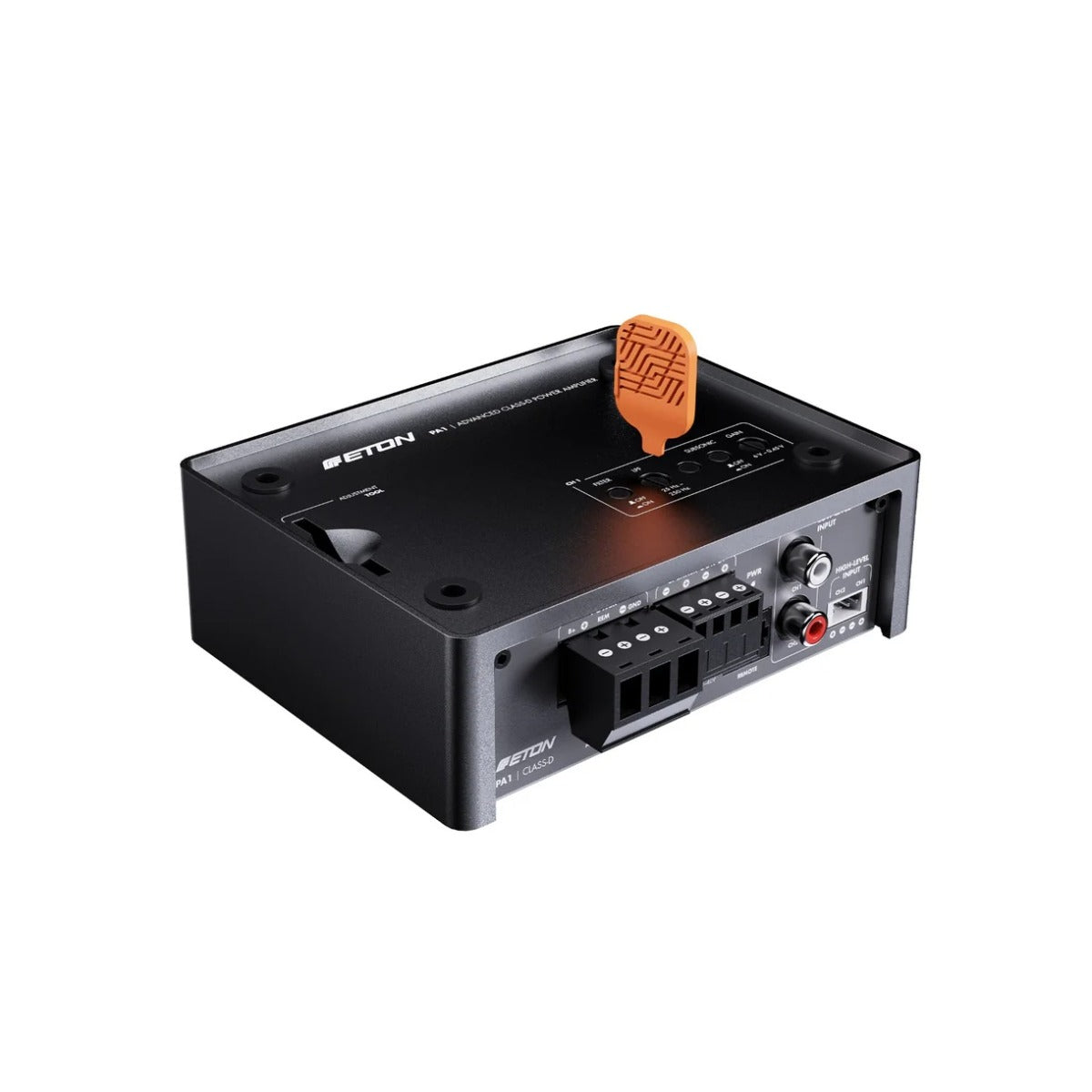

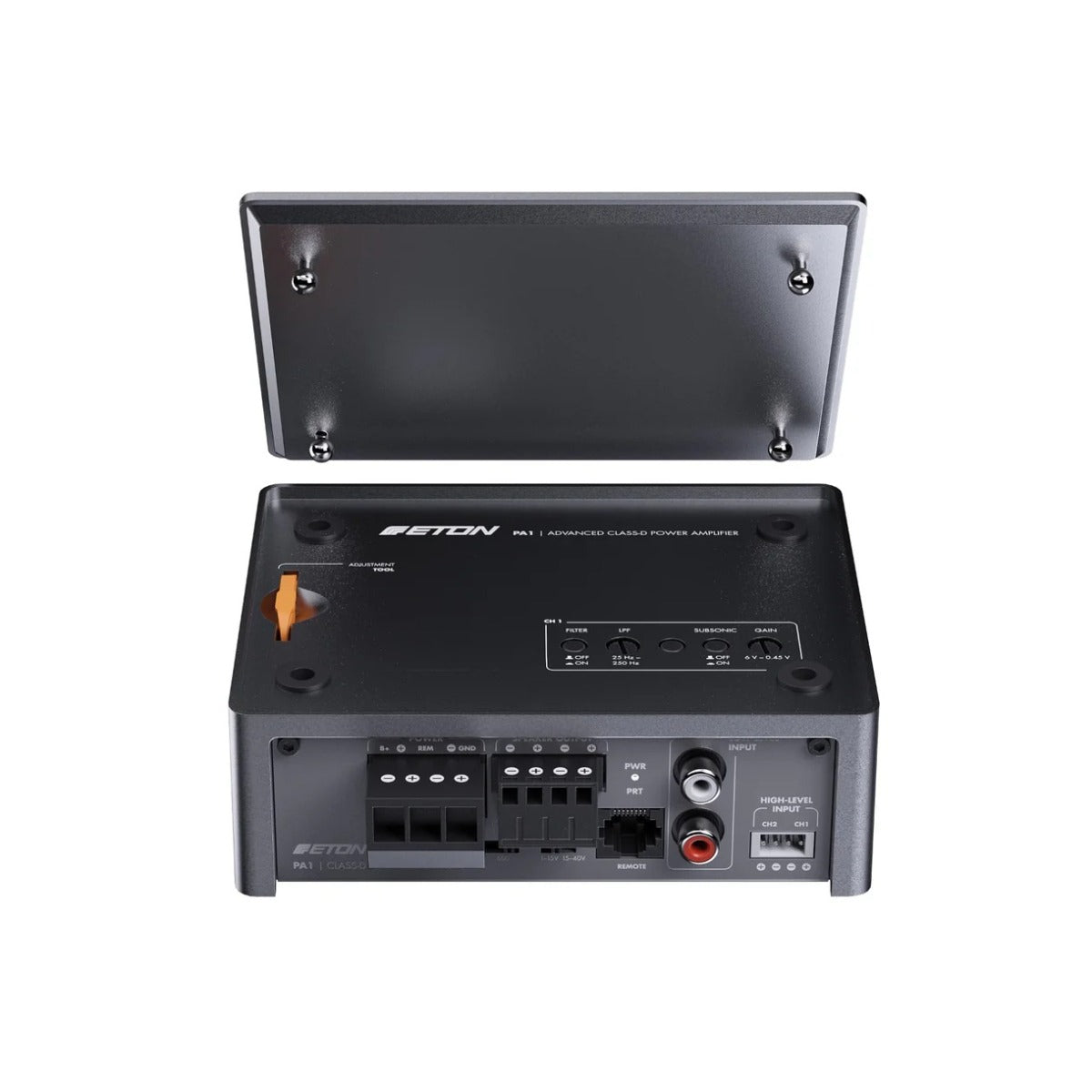

The ETON PA 1 is a 1-channel monoblock Advanced Class-D power amplifier with state-of-the-art amplifier technology and high-quality die-cast aluminum housing with removable cover. The integrated adjustment tool makes it easy to adjust the amplifier, even overhead or in confined spaces.

Technical Specification

• 1 x 200 W RMS at 4 Ω ,

• 1 x 340 W RMS at 2 Ω,

• 1 x 480 W RMS at 1 Ω.

• Signal-to-noise ratio 83.5 dB,

• damping factor @ 4 Ω >88,

• ultra low THD+N <0.02% @ 50 W 60 Hz,

• subsonic active filter 30 Hz,

• low-pass active filter: 25 - 250 Hz with adjustable slope 12 dB / 24 dB Oct,

• Auto-Sense On function (SIG / DC),

• gain 0.45 V - 6 V,

• adjustable high-level input voltage 1 - 15 V | 15 - 40 V,

• adjustable high-level input resistance 10| 150 | 600 Ω,

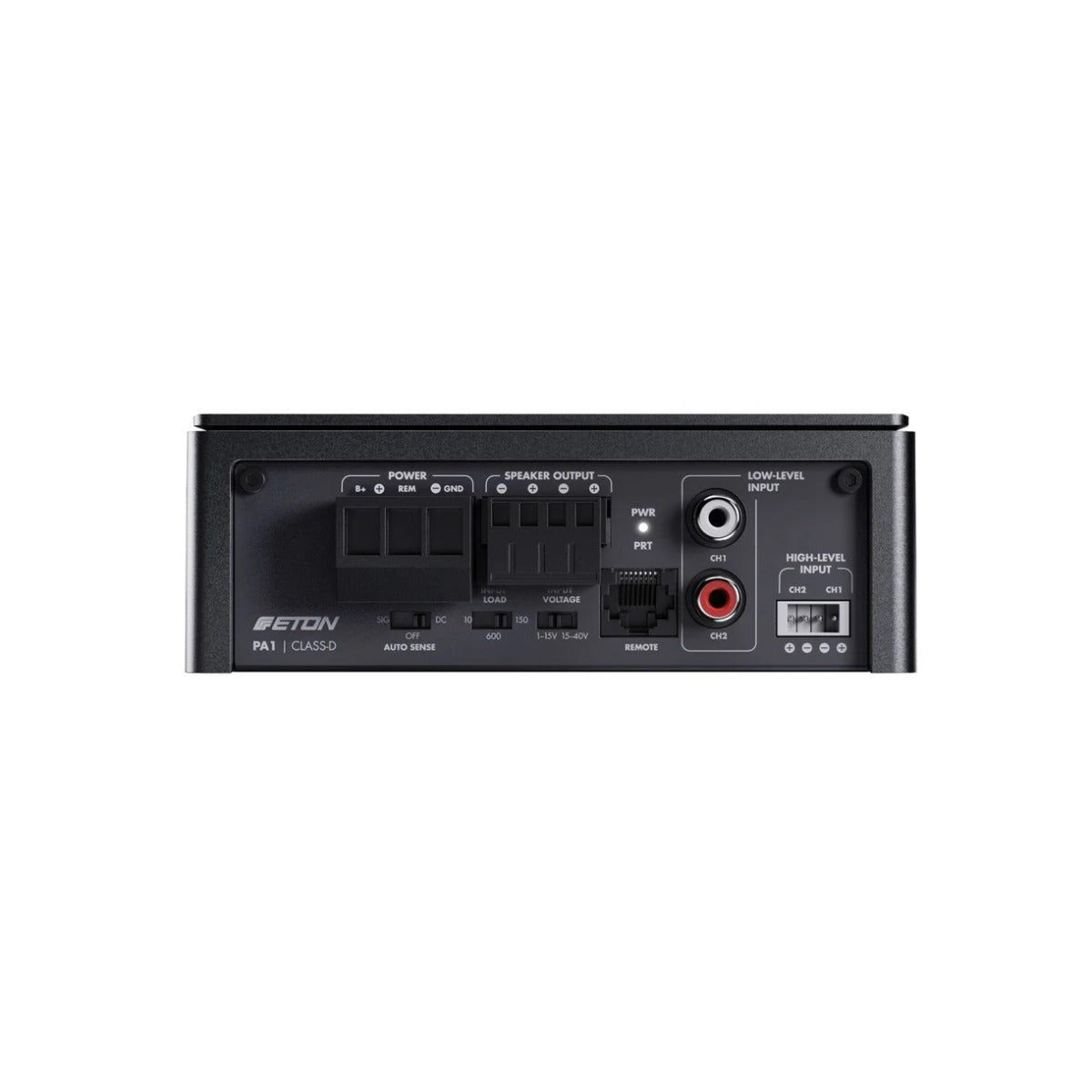

• 4 x audio input (high & low level),

• variable mounting feet, detachable connection plugs for power and audio signal cables, incl. level remote control,

• smart dimensions (LxWxH) 128 x 100 x 45 mm.

What's Included

• Eton PA 1 Amp

• Hi Level Input

• Bass remote
