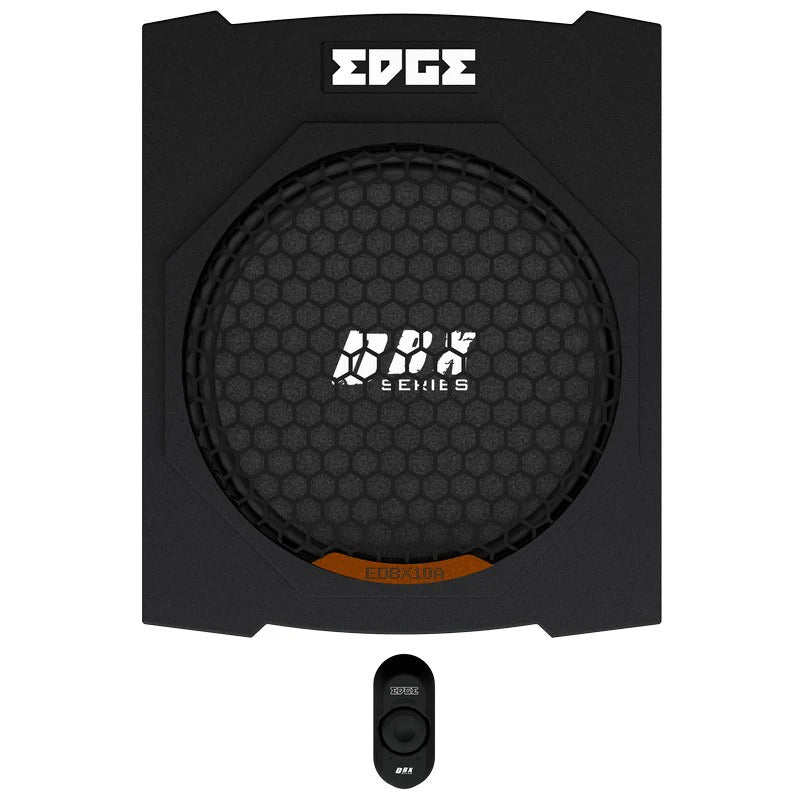

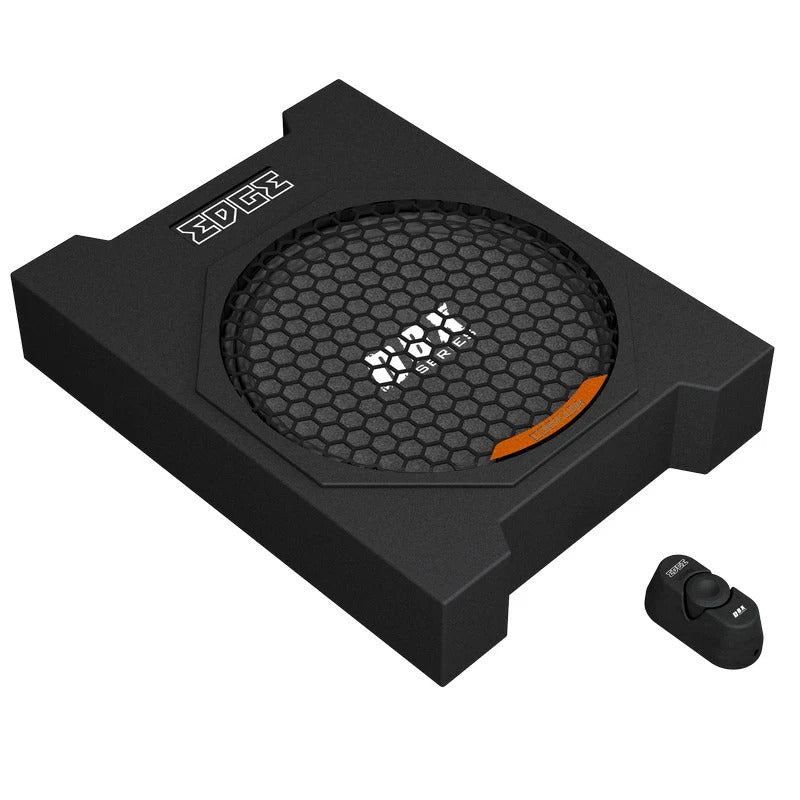

This compact shallow active bass enclosure is an efficient hide away bass product, it features a cast aluminium chassis this improves efficiency and adds protection to the product.

A great feature is the auto turn on circuit which means that the amplifier can work and turn on by connecting your vehicle speaker wire, perfect for installation to a factory fitted stereo. The enclosure also has a traditional remote turn on wire suitable for aftermarket head unit connection. The amplifier also has 0/180 phase shift control with remote bass control this gives you a dash mount bass level control and allows you to focus the sound position. The mesh grille offers protection for the subwoofer when installing in tight spaces.

Features included -

• Cast aluminium chassis

• Auto turn on circuit

• 0/180 Phase shift control

• Remote bass control

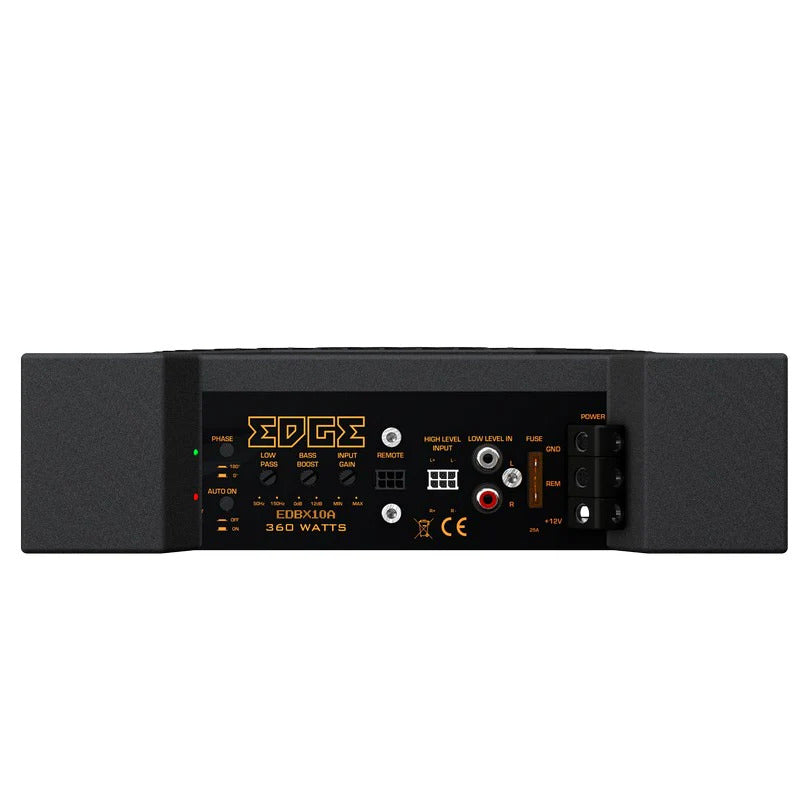

• Low level input

• High level input

• Protective mesh grille

Specification

• Model - EDBX10A-E0

• Driver - EDBX10S

• Type - Shallow active bass enclosure

• RMS Power - 180 watts

• Peak Power - 360 watts

• Impedance - 4 Ohms

• Dimensions (H x W x D) - 73mm (2.9") x 260mm (10.2") x 345mm (13.6")

• Frequency response - 30Hz - 250Hz

• Configuration - 2nd order acoustic suspension
