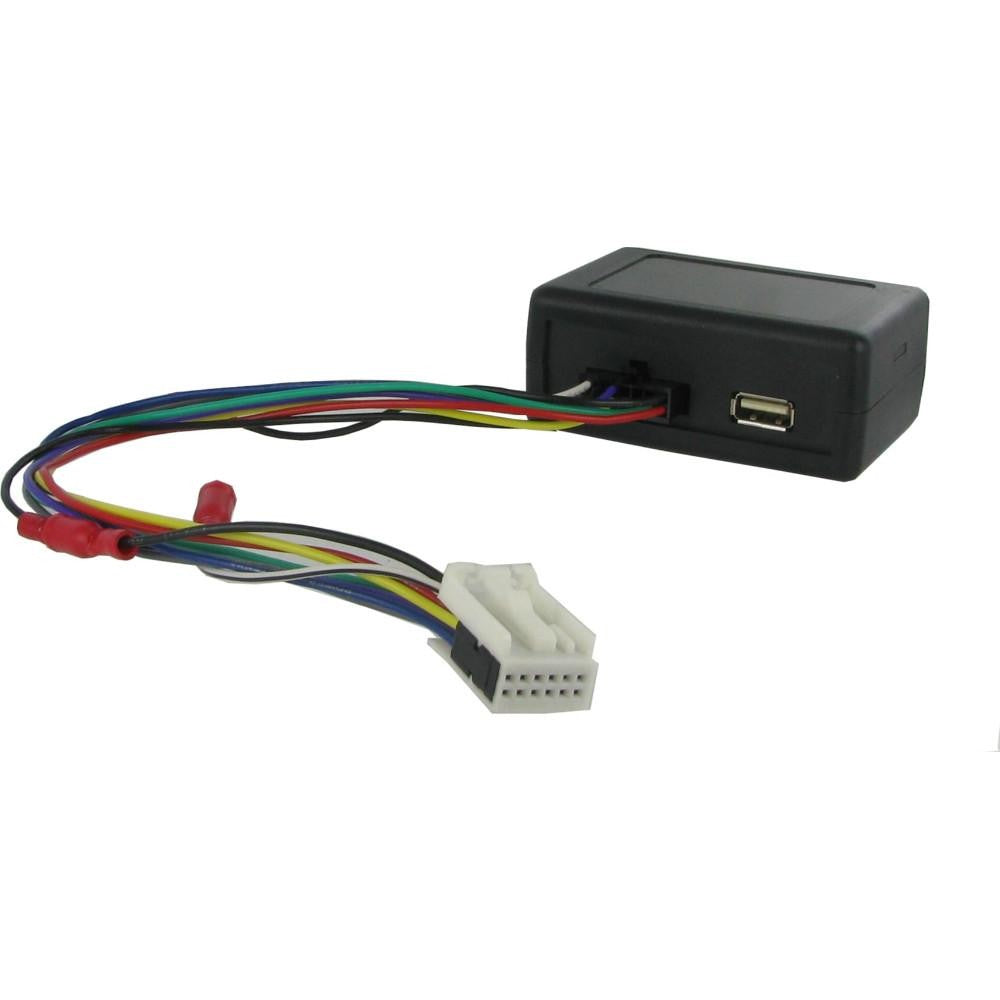

This USB interface will allow you to interface, display and control a USB flash memory device through the factory fitted car radio. Enjoy the increased capacity and convenience of MP3 storage and playback without changing your original Audi/Seat/Skoda/VW car stereo.

For Audi, Seat, Skoda, VW Vehicles with Quadlock Connector. Allows USB input through OEM head unit

Compatible with the following vehicles:

• Audi A2 2006>
• Audi A3 2006>
• Audi A4 2005>
• Audi TT 2005>
• Seat Altea 2005>
• Seat Toledo 2005>
• Seat Leon 2005>
• Seat Ibiza 2005>
• Skoda Fabia 2005>
• Skoda Octavia 2005>
• Skoda Roomster 2005>
• Skoda Superb 2005>
• VW Golf 2003>
• VW Passat 2003>
• VW Touareg 2003>
• VW Touran 2003>
• VW Transporter 2003>
• VW EOS 2006>

Contents

• USB Interface with wiring harness
• USB Extension Cable

Operation Notes

In order for the USB interface to read the music files on your USB memory stick, the files must be setup as follows:

1. The USB stick must be formatted as FAT32 and with a maximum capacity of 16GB
2. All files must be in MP3 format
3. Six folders must be created on the USB memory stick. Each folder named CD01,CD02,CD03,CD04,CD05 and CD06. A maximum of 90 tracks can be saved into each folder. The USB interface is selected on the original stereo by pushing the source or CD changer button on the stereo. Refer to cars original stereo manual for more information.

Whilst USB stick is selected track up/down and disc up/down can be selected from the stereo and steering wheel controls (if fitted).
