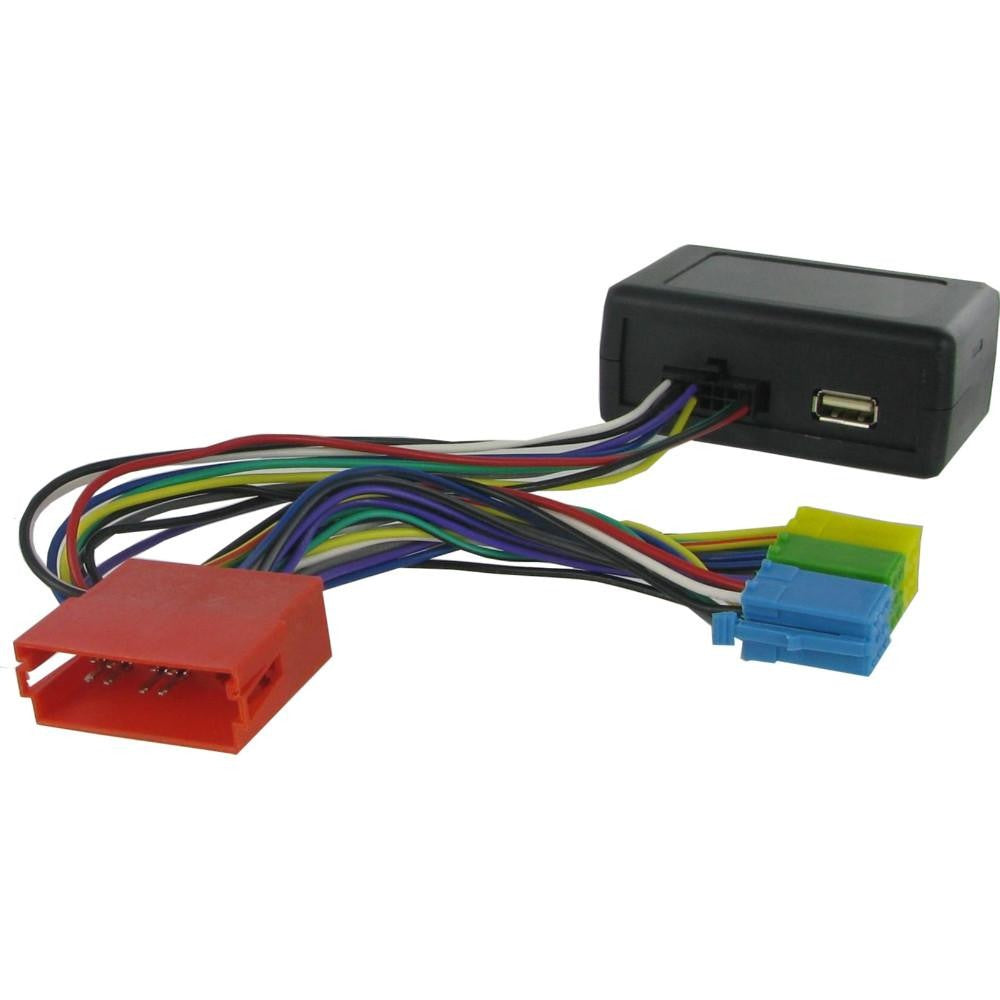

This USB interface will allow you to interface, display and control a USB flash memory device through the factory fitted car radio. Enjoy the increased capacity and convenience of MP3 storage and playback without changing your original Audi car stereo.

For Audi Vehicles with Mini-ISO Connector Concert, Chorus, Symphony Head Units

Compatible with the following vehicles:

• Audi A2 2000>
• Audi A3 1998>
• Audi A4 1997>
• Audi A6 1998>
• Audi TT 1999>

Contents

• USB Interface with wiring harness
• USB Extension Cable

Operation Notes

In order for the USB interface to read the music files on your USB memory stick, the files must be setup as follows:

1. The USB stick must be formatted as FAT32 and with a maximum capacity of 16GB
2. All files must be in MP3 format
3. Six folders must be created on the USB memory stick. Each folder named CD01,CD02,CD03,CD04,CD05 and CD06. A maximum of 90 tracks can be saved into each folder. The USB interface is selected on the original stereo by pushing the source or CD changer button on the stereo. Refer to cars original stereo manual for more information.

Whilst USB stick is selected track up/down and disc up/down can be selected from the stereo and steering wheel controls (if fitted).
