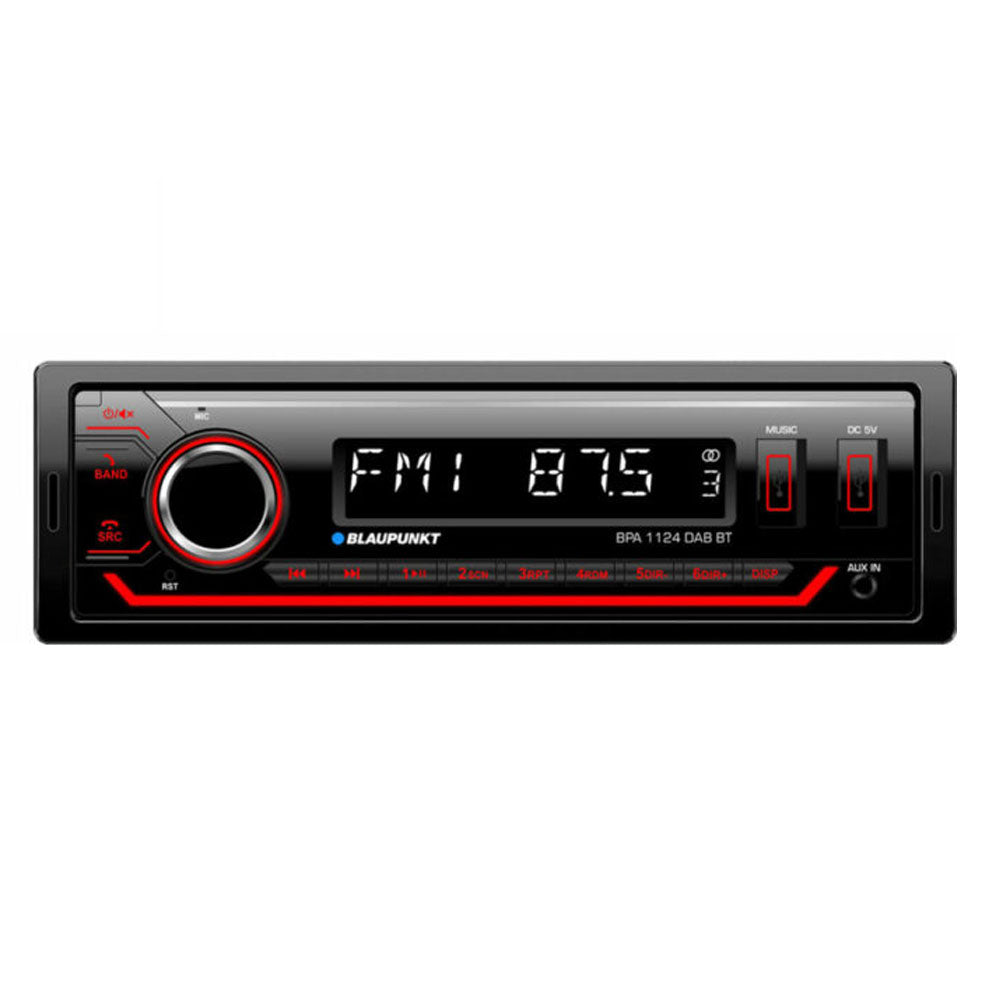

The Blaupunkt DAB car radio “1124 DAB BT” in 1-DIN format offers digital radio reception in a new and modern design with Multicolour lighting. With 2x USB (1x for charging your smartphone), Aux-In and Bluetooth streaming, playing digital media is easy. And the radio reception? Digital, of course.

Specifications

Radio

• RDS Tuner
• FM, AM Tuner
• DAB, DAB+ Tuner
• Traffic function (FM)

Mediaplayer

• USB (front)
• MP3, WMA playback

Bluetooth

• Phone calls with internal or external Microphone
• Audio streaming with track display

Sound

• Sound Presets
• Loudness
• 4-channel pre-amp output + Sub-Out
• 4 x 50 Watts

General

• Multicolour (7 colours)
• Permanent memory
• Short installation depth
• Second USB Port for charging mobile devices with max. 2A
• RADIO ANALOG / DIGITAL

GENERAL

• Display: LCD, negative, anti-reflective, wide angle, Alphanumeric/ Symbols
• Illumination colour display/ keys: Multicolour (auto, red, green, blue, yellow, cyan, violet, white)
• Day/ Night mode: No
• Brightness: Fixed
• Time display: Yes
• HMI languages: English
• Low standby current: Yes (< 3.5 mA )

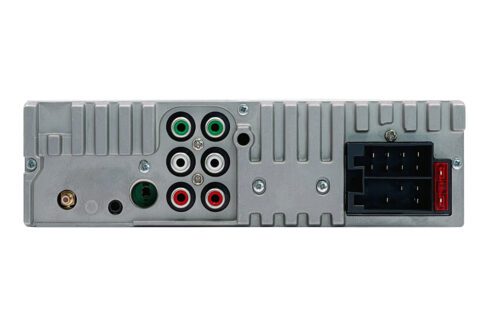

• Antenna inputs: FM DIN/ ISO, DAB SMB (with 12 V phantom power)
• Telephone mute: No
• Ext. handsfree microphone connector: Yes
• Remote control: No
• Steering wheel remote control (SWC): No
• Variable scan time: No
• Confirmation beep: Yes (can be deactivated)
• Control panel type: Fixed panel
• Colour panel/ decor ring: Black matte
• Software Update: via USB
• Permanent Memory: Yes (Settings & Presets)
• Demo mode: No
• Weight: approx. 0.44 kg
• Dimensions: 50mm x 178mm x 102mm (H x W x D, housing only),   58mm x 187m x 113mm (H x B x T , incl. front with keys)
• Operating voltage/ Power consumption: 10.5 – 14.4 V/ in operation: < 10A, 10 sec. after ACC off: < 3.5 mA
