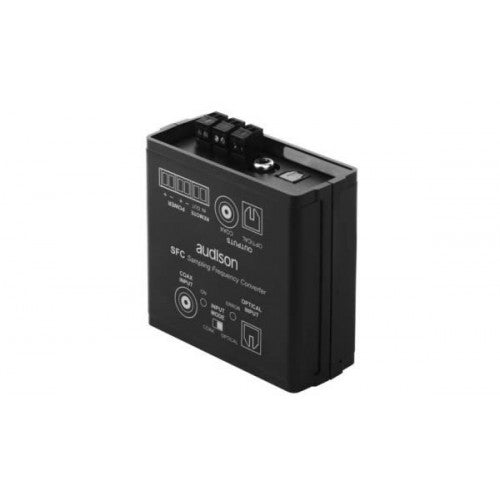

Audison SFC
Audison SFC
Audison Sampling Frequency Converter
Specification:
- Voltage 11 ÷ 15 VDC
- Current consumption 0.1 A
- Remote IN voltage 7 ÷ 15 VDC
- Remote OUT voltage 7 ÷ 15 VDC (pass through)
Product Description
Features:
Selectable Inputs Coaxial or Optical (S/PDIF)
Input Sampling Frequency/resolution
32 kHz/16 bit ÷ 192 kHz/24 bit
Outputs Coaxial and Optical (S/PDIF)
Output Sampling Frequency 48 kHz
W (Width) x H (Height) x D (Depth) mm/inch 86 x 37 x 80 / 3”3/8 x 1”1/2 x 3”1/8
Weight kg/lb: 0,14 / 0.31
