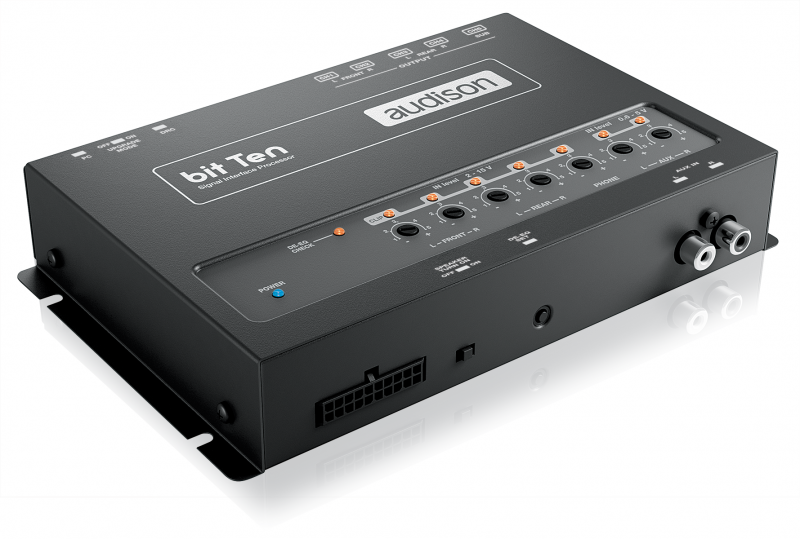

The Audison Bit Ten is a versatile and high-performance digital signal processor designed to enhance and optimize your vehicle's audio system, transforming any setup into a high-quality sound system. Thanks to its ability to manage and process audio signals with precision and detail, the Bit Ten allows you to achieve a balanced and faithful sound, perfectly adapted to the acoustic characteristics of the cabin.

DSP Tech Data

• Nominal power supply voltage / Fuse - 11 ÷ 15 VDC
• Channels - 5
• Sample Rate - 24 bit / 48 kHz
• Hi Level Inputs - 4
• Low Level Inputs - 4
• Digital Inputs - 0
• Processing Method - Fixed point
• Idling current - 0.4 A
• Switched off without DRC MP - 2.5 mA
• Switched off with DRC MP - 4 mA
• Remote IN - 7 ÷ 15 VDC (1.3 mA)
• Remote OUT - 12 VDC (130 mA)

Signal Stage

• Distortion - THD @ 1 kHz, 1 VRMS Output - 0.005 %
• Bandwidth @ -3 dB - 10 ÷ 22k Hz
• S/N ratio @ A weighted, 4 V Output, 2 V MASTER input - 96 dBA
• S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input - 95 dBA
• Channel Separation @ 1 kHz - 85 dB
• Input sensitivity AUX - 0.6 ÷ 5 V RMS
• Input impedance Pre In - 15 kΩ
• Input impedance Speaker In / AUX - 2,2 kΩ
• Max Output Level 0.1% THD - 4 V RMS

Input Stage

• Low level (Pre) - AUX IN
• High Level (Speaker In) - FL - FR - RL - RR - PHONE IN

Output Stage

• Low level (Pre) - FRONT L/R, REAR L/R, SUB

Connection

• From / To Personal Computer - 1 x USB / B (1.1/2.0)

Crossover

• Filter type - Full / High Pass/ Low Pass/ Band Pass
• Filter mode and slope - Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dB
• Crossover Frequency  - 68 steps @ 20 ÷20k Hz
• Phase control - 0° ÷ 180°

Time Alignment

• Distance - 0 ÷ 510 cm / 0 ÷ 200.8 in.
• Delay - 0 ÷ 15 ms
• Step - 0,08 ms; 2,8 cm / 1.1 in.
