Product Description

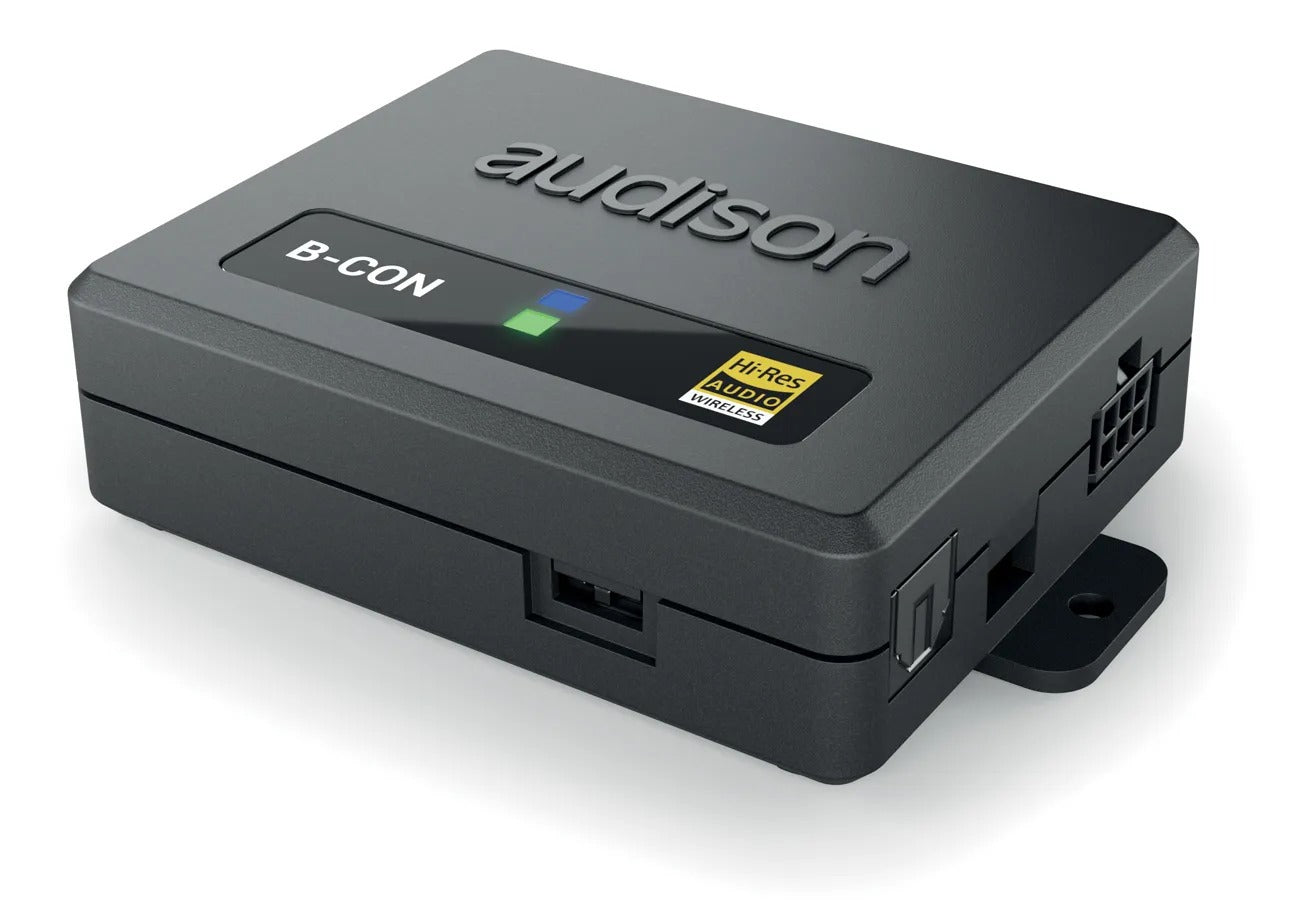

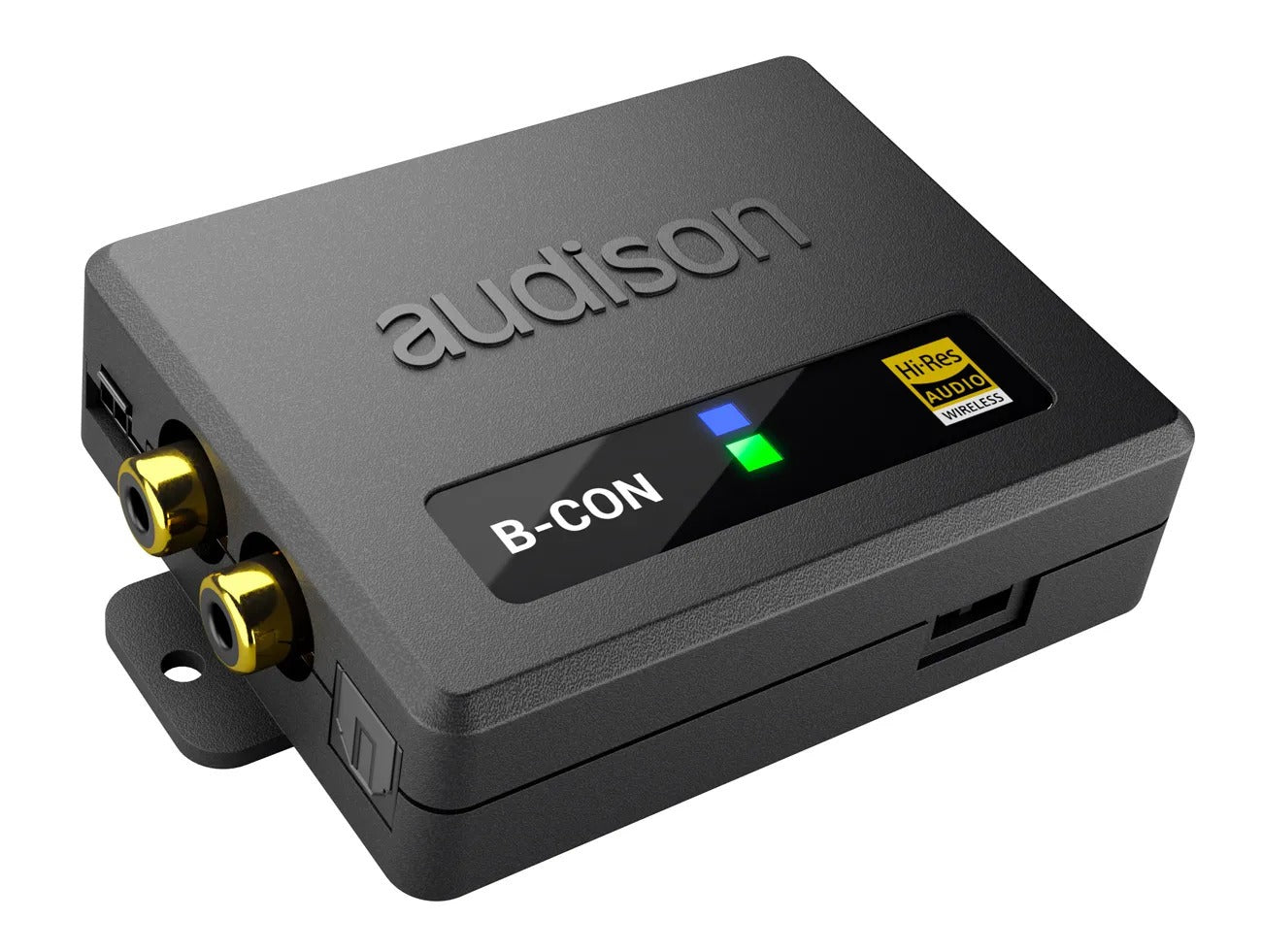

Experience true high-resolution wireless audio with B-CON II, the next-generation Audison Bluetooth® receiver featuring LDAC streaming up to 24-bit/96 kHz. Its refined design, modern USB-C connectivity, and fully wireless updates via the B-CON Go App ensure effortless control without needing to connect to a DSP processor. Engineered for seamless system integration, B-CON II delivers outstanding sound quality and reliable performance in any car audio environment.
Features
-
Hi-Res Audio Wireless Certification: certified by the Japan Audio Society (JAS) for high-resolution wireless audio.
-
LDAC Codec Support: streams audio up to 24-bit/96 kHz for superior sound quality compared to standard Bluetooth.
-
AAC and SBC Compatibility: supports AAC for iOS devices and SBC for broad device compatibility.
-
Analog and Digital Outputs: offers RCA analog outputs and Toslink optical digital output for flexible system integration.
-
Digital Optical Input with Pass-Through: allows connection of other digital sources with up to 192 kHz / 24-bit resolution.
-
USB-C Port: modern USB-C connection for supply in home applications and firmware updates via laptop.
-
Absolute Volume Control: enables the DSP volume control from a smartphone to keep the best audio quality.
-
Hands-Free Call Management: automatically switches to the car’s factory Bluetooth during calls and resumes music playback afterward.
-
Direct Firmware and Bluetooth Updates: update directly via the B-CON Go app without requireing a connection to Audison dsp processors.
-
Flexible Power Supply: operates on 6–24 VDC (automotive) or 5V via USB-C (home use).
-
Compact Design: small size and low weight make installation easy in a wide range of setups.
Receiver Tech Data
-
Power Supply Voltage - 5 ÷ 24 VDC
-
Idling Current - 40 mA
-
Remote IN - 5 ÷ 24 VDC (3.5 mA)
-
Bluetooth Data - Type: Bluetooth 5.0 + EDR - Codec: LDAC, AAC, SBC - Profile: Bluetooth A2DP 1.3, AVRCP 1.6
-
Digital Input - Optical: S/PDIF Optical (Max 24 bit/192 kHz)
-
Digital Output - Optical: S/PDIF Optical (Max 24 bit/192 kHz)
-
Analog Output Performance - Bandwidth (Max) 5 ÷ 48k Hz - Output Level 2 VRMS - Distortion – THD @1 kHz, 1 VRMS 0.003% - S/N RATIO (A weighted) 107 dBA
Bluetooth Specifications
-
Bluetooth Type - Bluetooth 5.0 + EDR
-
Bluetooth Connection - A2DP 1.3, AVRCP 1.6
-
Codec - LDAC, AAC, SBC
-
Certifications - CE-RED; FCC; ISED; SRRC; RCM; MIC; WPC; ROHS; REACH2.0;
-
Max Paired Devices - 1
-
Max Distance - 10
Inputs / Outputs / Controls
-
Aux Sel Wire - (active +12V with streaming ON)
-
Digital Input - Optical S/PDIF
-
Master En Wire - (active +12V with streaming OFF)
-
ADC Port
-
Absolute Volume Upgrade Switch - user selectable
-
Status Leds
-
Digital Output - Optical S/PDIF
-
Digital Output Sample Rate - 24 bit/96 kHz Max
-
Analog Output - Yes (RCA stereo)
-
Analog Output Bandwith - 5 ÷ 48k Hz
-
Analog Output Level - 2 Vrms
-
Analog Output THD - 0.003%
-
Analog Output SNR - 107 dB(A)
General Requirements
-
Operating Temp Range - -20°C ÷ +85°C
