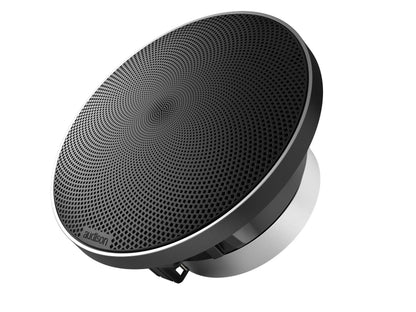

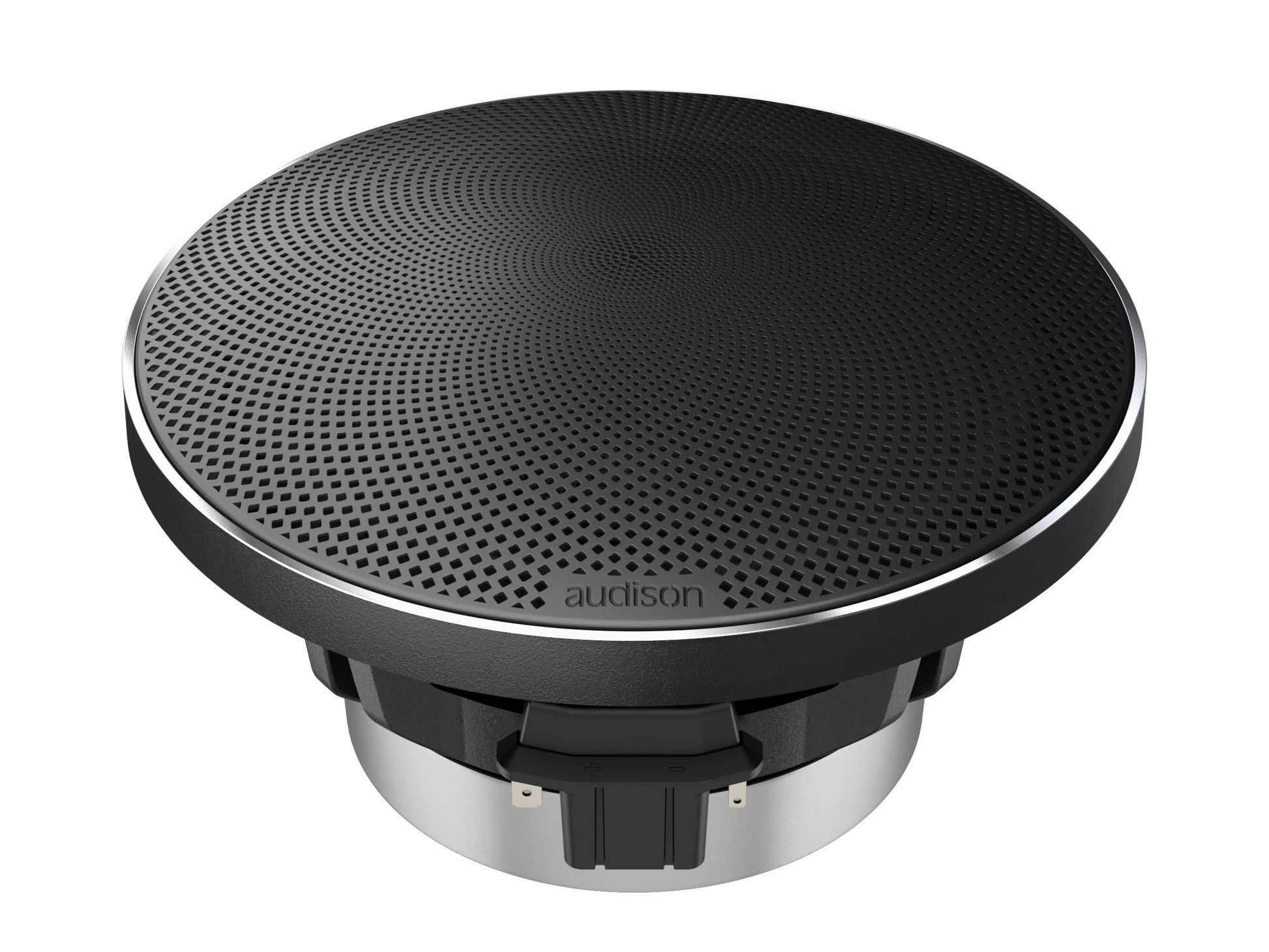

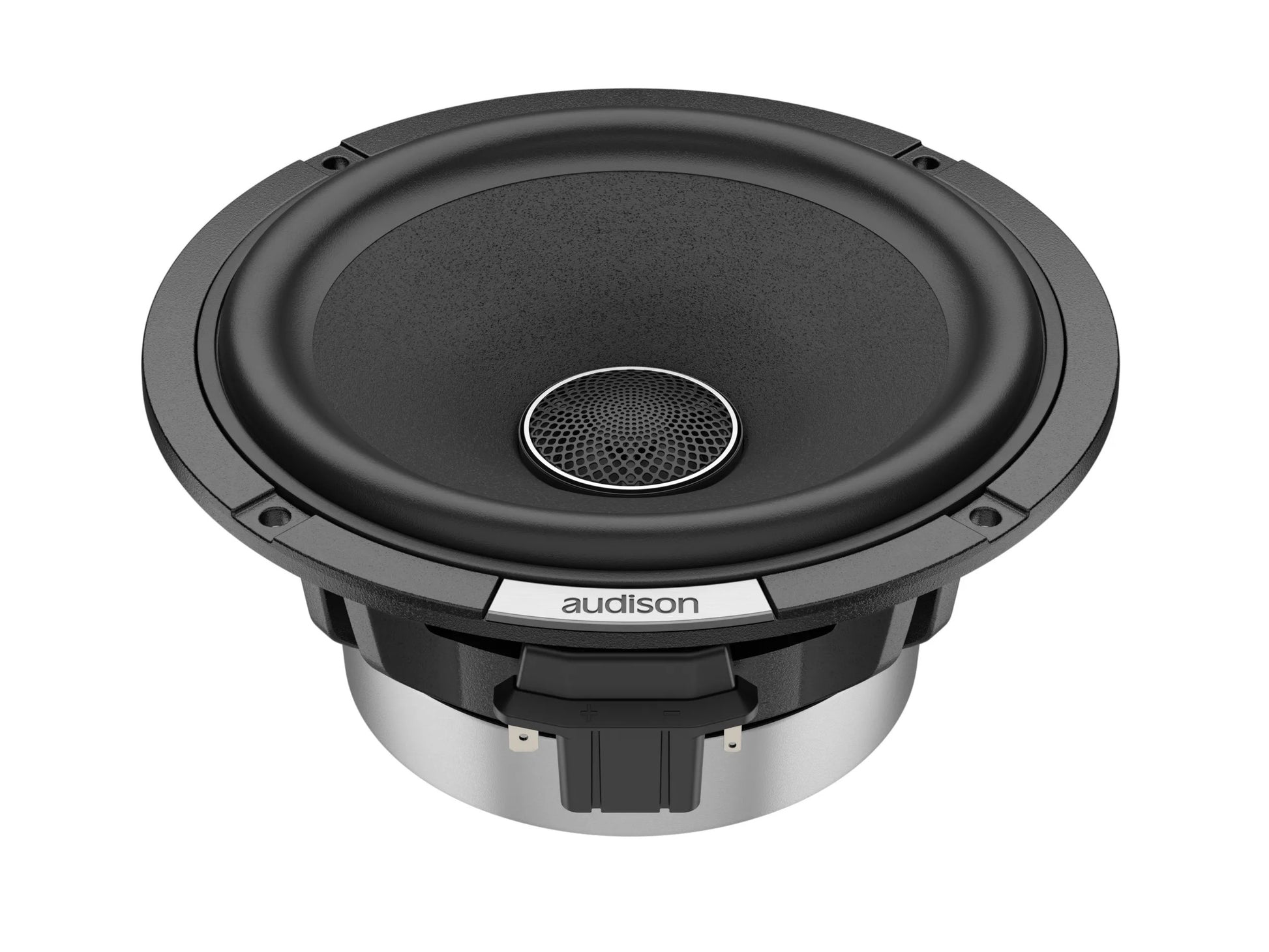

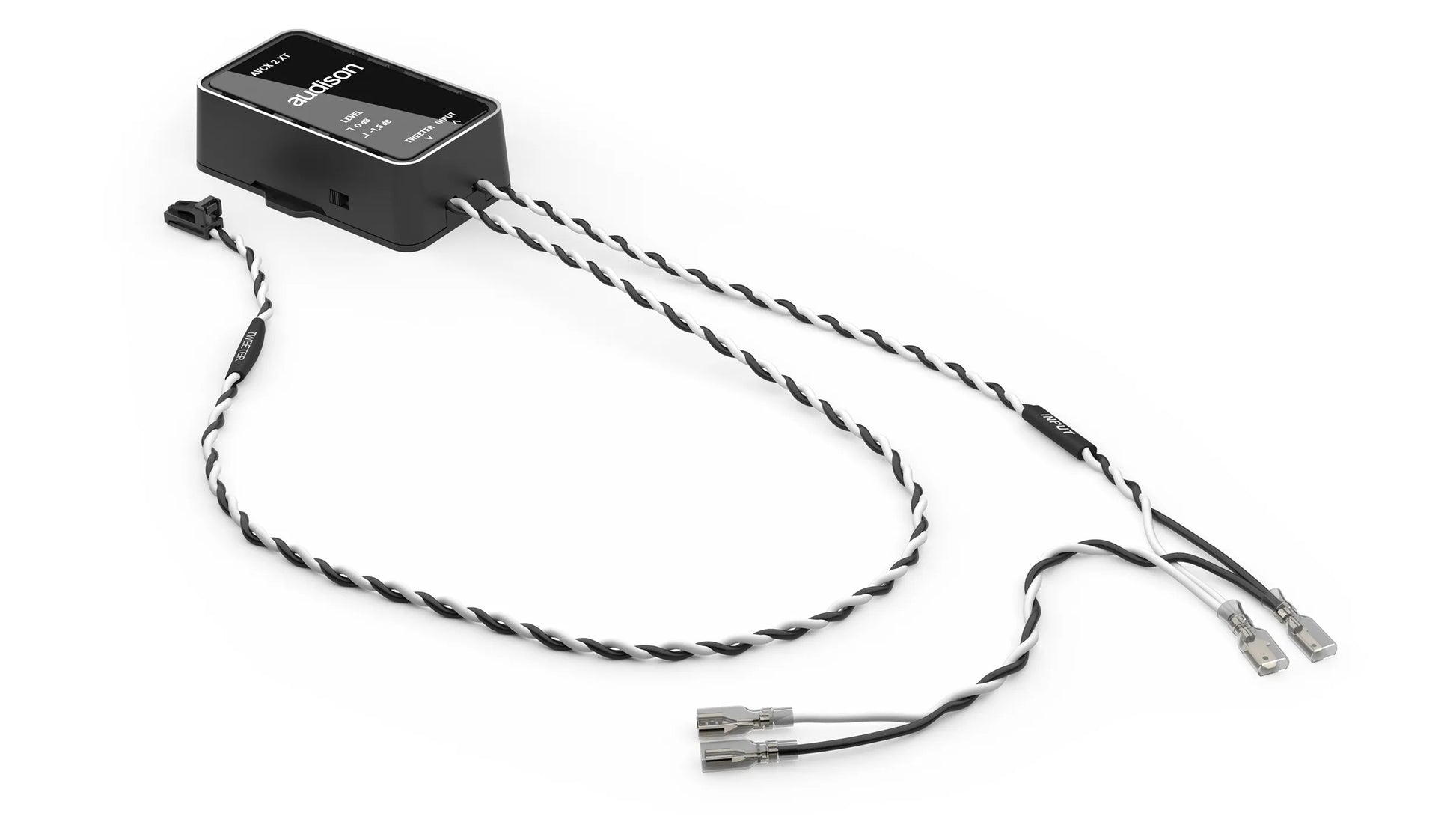

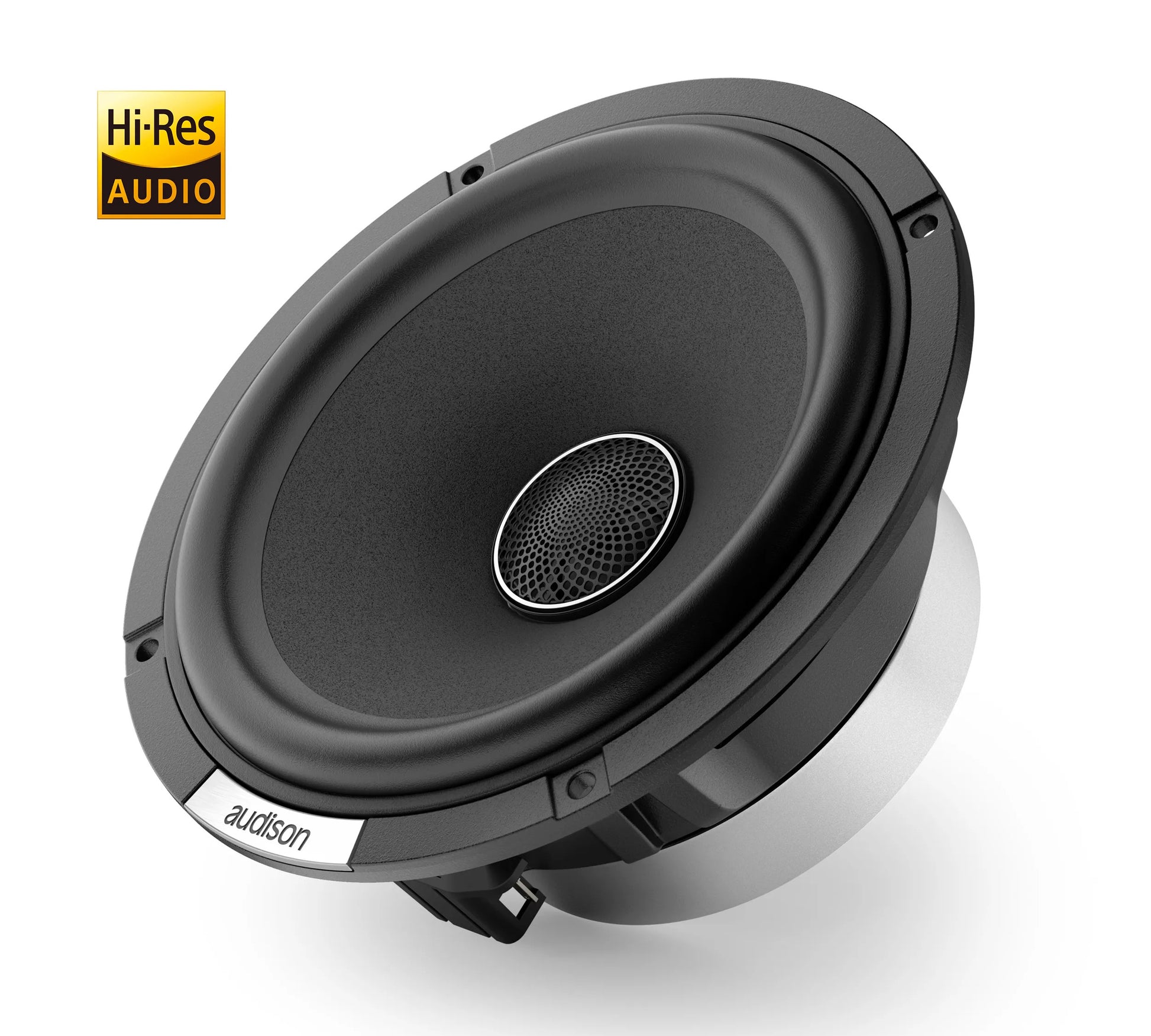

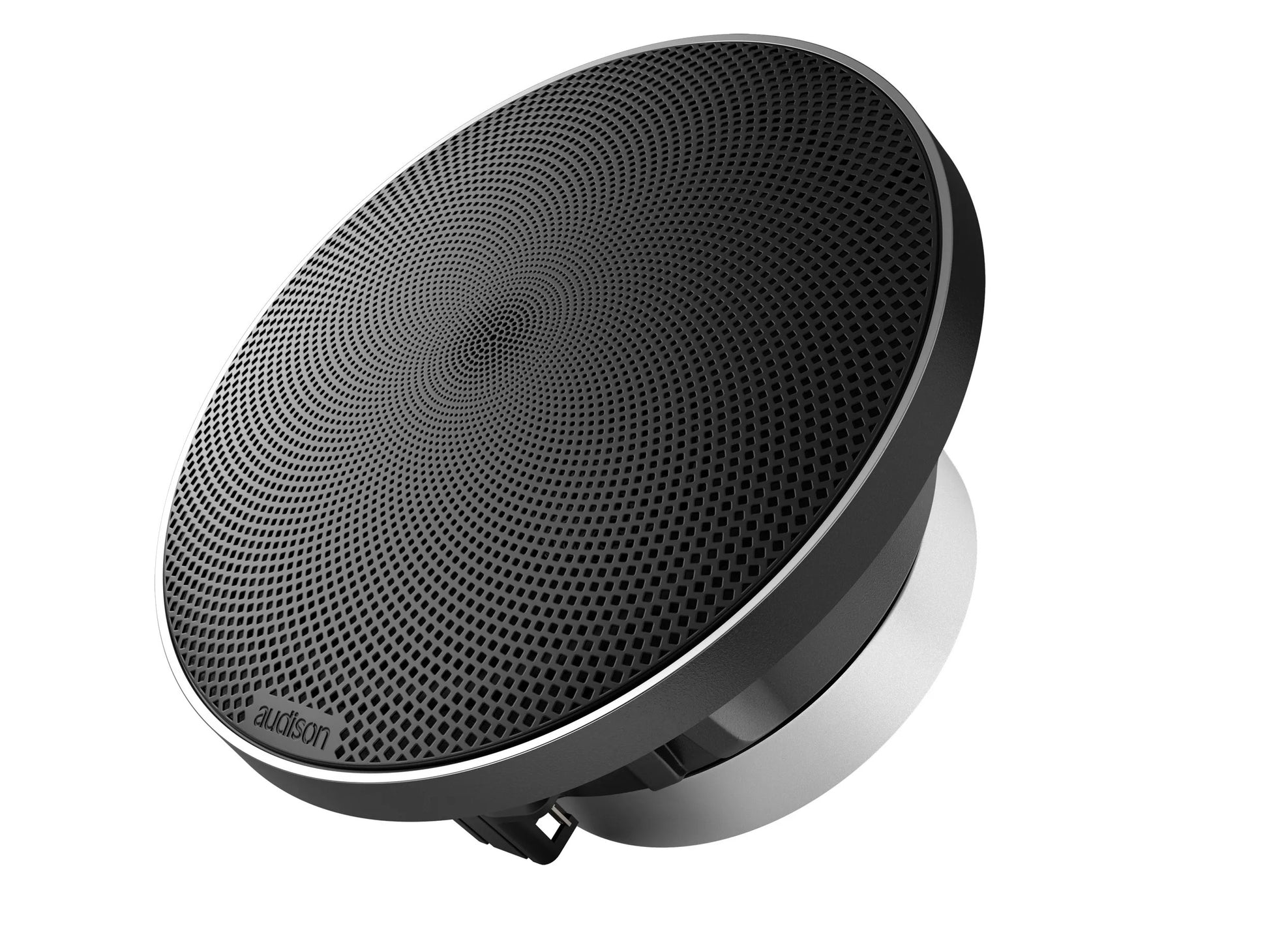

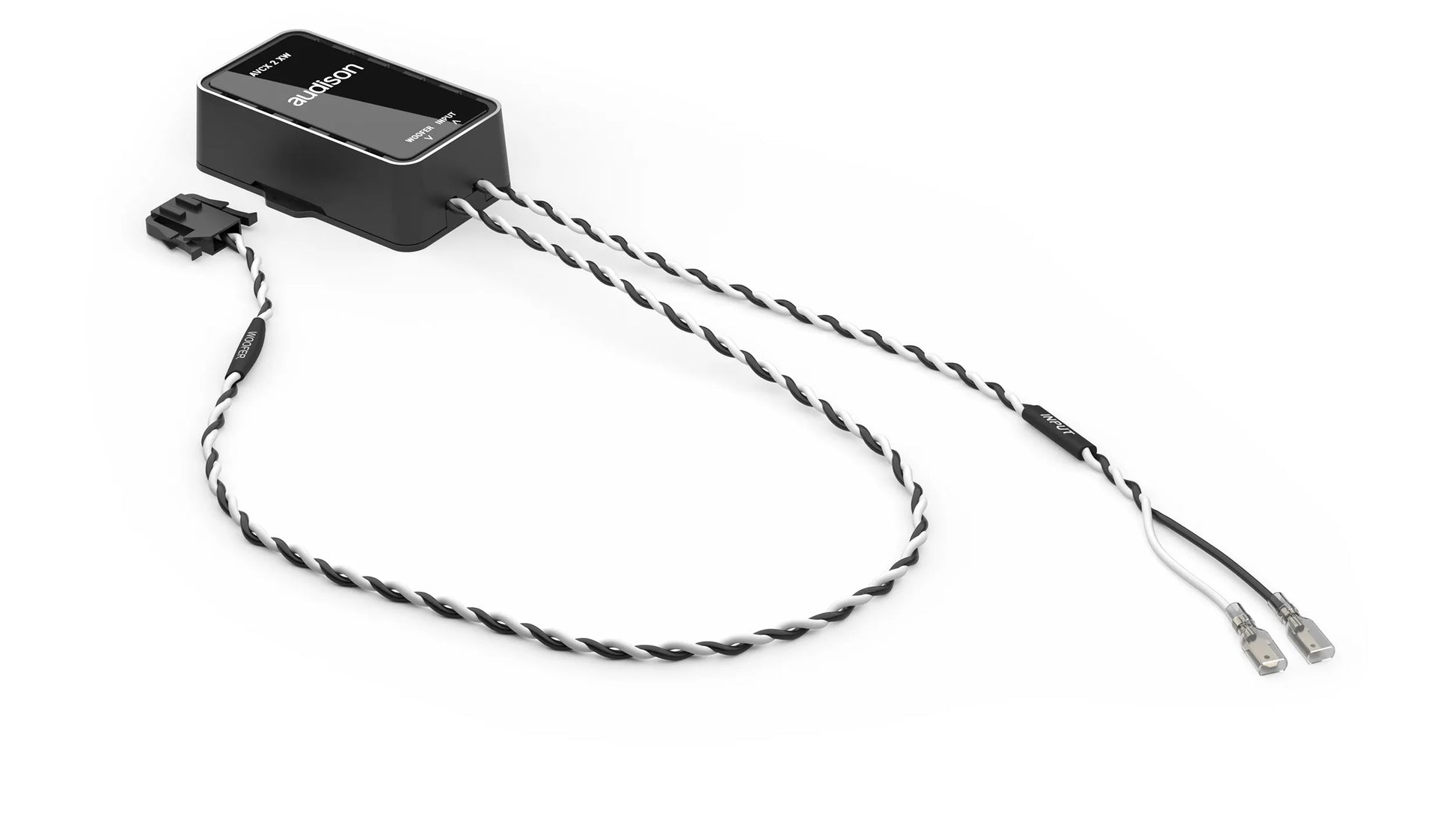

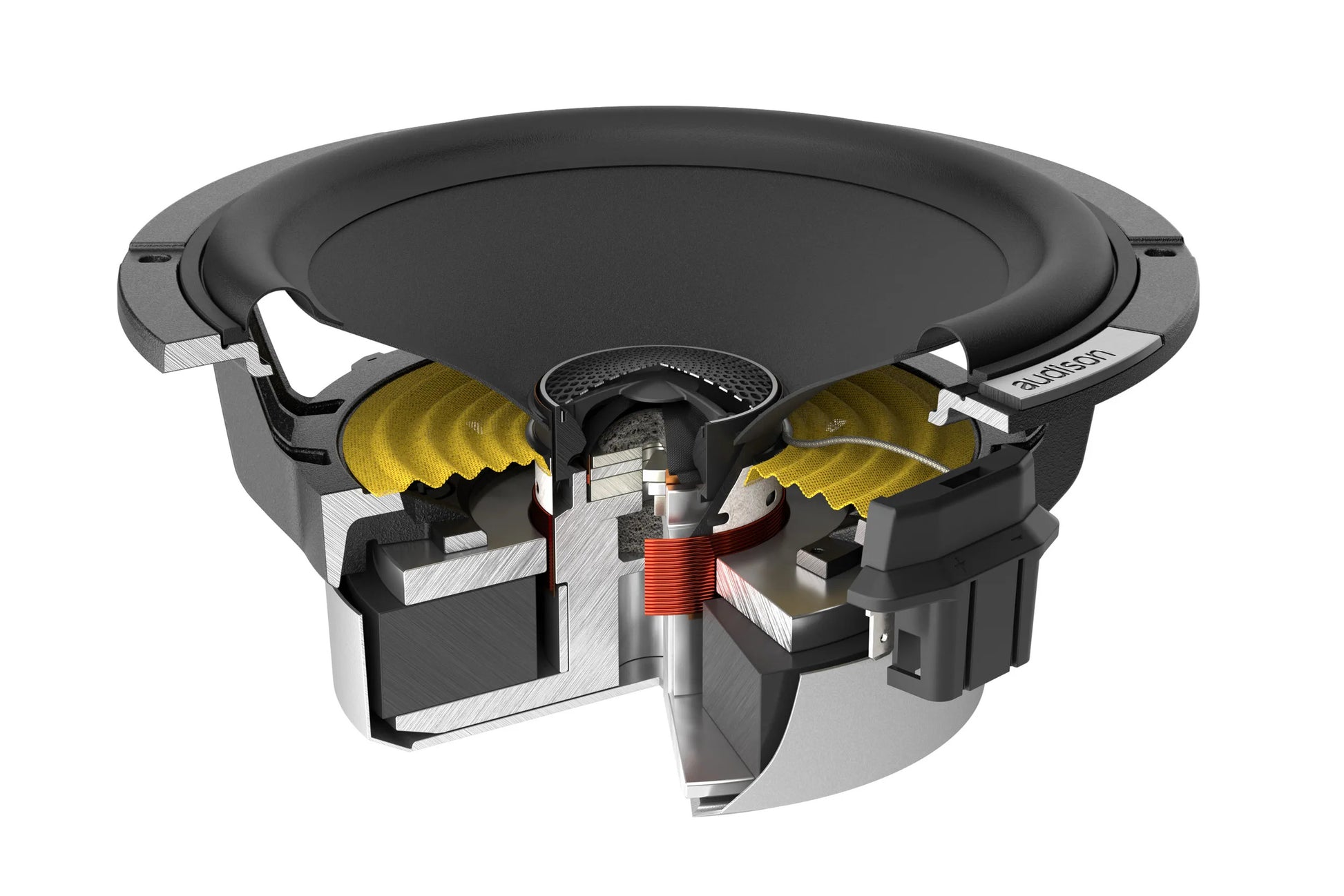

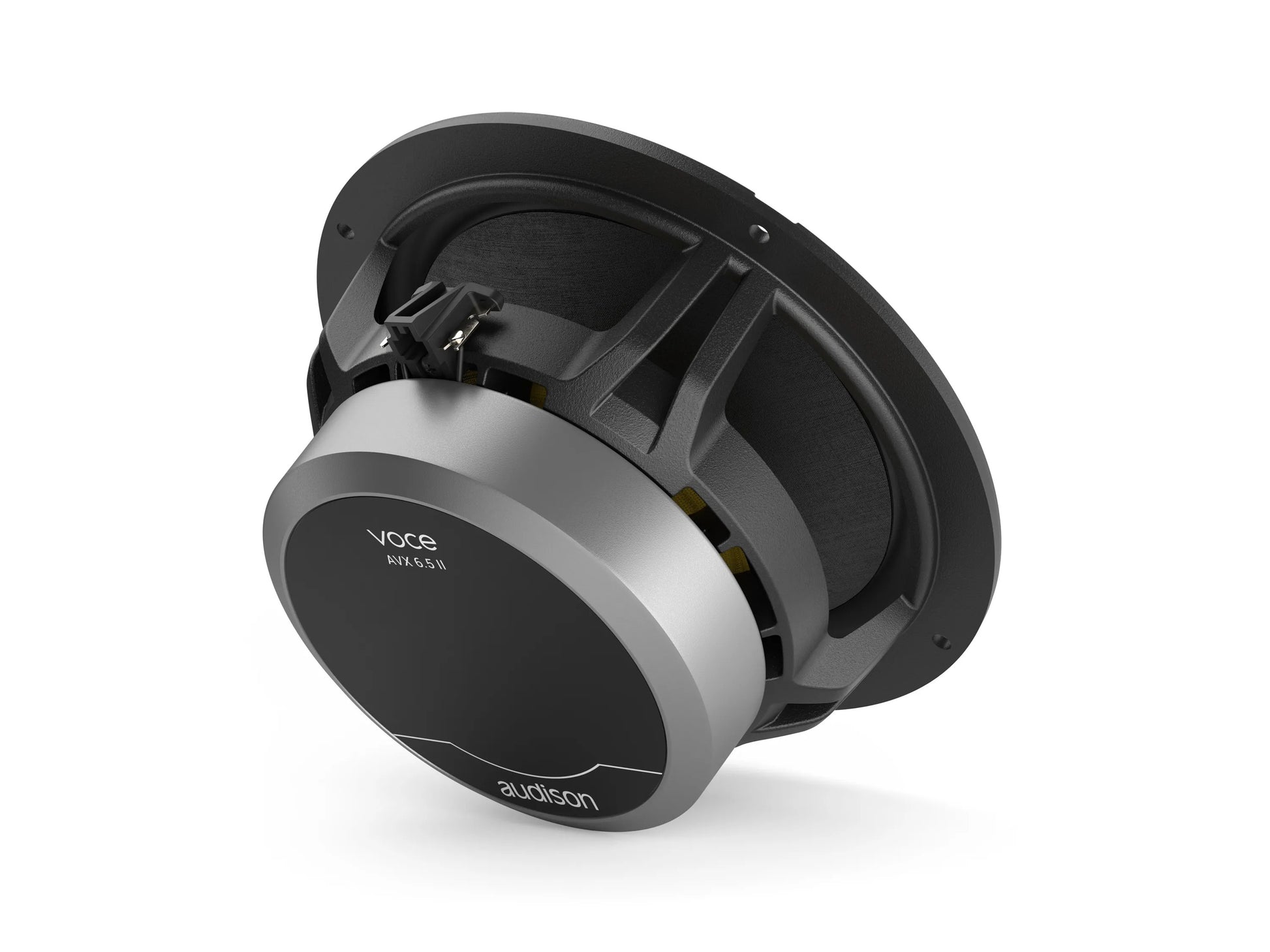

The Audison VOCE II AVX 6.5 coaxial speaker is a standout component in the VOCE II line, offering a unique combination of a 6.5-inch woofer and a 1-inch Hi-Res certified dome tweeter. Achieving Hi-Res Audio certification for a coaxial setup is particularly significant, reflecting the meticulous design of every element from the grille to the basket. Designed for bi-amplification, this speaker can be actively optimized with a DSP while maintaining the flexibility of separate passive crossovers for each driver.

Woofer Specification

• Woofer Size - 165 mm
• Impedance - 4 Ohm
• Minimum Impedance - 3.1 Ohm
• Power Handling - Peak 240 W
• Power Handling - Continuous - 120 W
• Sensitivity - 91.5 dB
• Frequency Response - 45 ÷ 40000
• Voice Coil Diameter - 40 mm
• Chassis Material - ALUMINIUM
• Magnet Material - HIGH DENSITY FLUX FERRITE
• Magnet Size - 100x45x18mm
• Voice Coil Material - CCAW
• Former Material - GLASS FIBER
• Cone Material - SEMI-PRESSED PAPER
• Surround Material - RUBBER
• Flux Density - 0.84
• Xmax - 4.95 mm
• Xmech - 7.5 mm
• Gap Height - 6 mm
• Voice Coil Winding Height - 13 mm

Tweeter Specification

• Tweeter Size - 25mm
• Impedance - 4 Ohm
• Minimum Impedance - 3.7 Ohm
• Program Power - 20 W
• Aes Power Rating - 10 W
• Sensitivity - 98 dB
• Frequency Response - 1500 - 40000
• Voice Coil Diameter - 25 mm
• Voice Coil Material - CCAW
• Former Material - ALUMINIUM
• Dome Material - TELOTON FIBRE
• Surround Material - TETOLON FIBRE
• Magnet Material - NEODYMIUM
