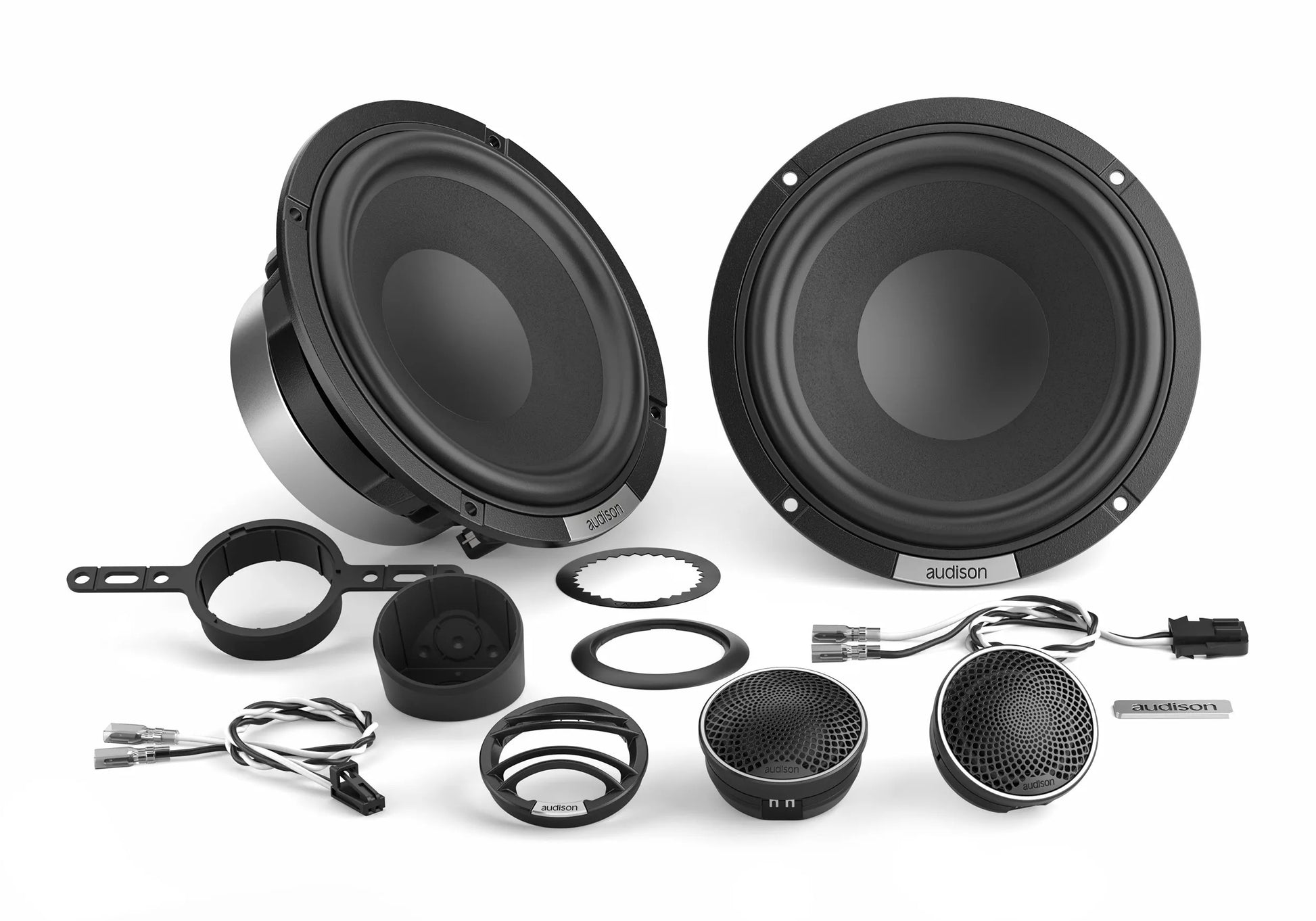

The Audison VOCE II AVK 6A P II system, engineered for dynamic performance, integrates the AV 1.1 II Hi-Res Tweeter and AV 6.5 P II Mid-Bass component. This combination achieves extraordinary power handling up to 150W RMS, attributed to the 1.6 in. (40 mm) CCAW voice coil that ensures exceptional durability and dynamic response. The system excels in delivering powerful mid-bass performance, capturing the full essence of music with clarity and precision. Enhanced installation flexibility is provided by OEM-style and Faston connectors, ensuring seamless integration into any vehicle setup.

Technical Specs LF

• Woofer Size - 165 mm
• Impedance - 4 Ohm
• Power Handling - 300 W Peak
• Power Handling - 150 W continuous
• Frequency Response - 45 - 7500 Hz (-6dB)
• Voice Coil Diameter - 40 mm
• Magnet Material - HIGH DENSITY FLUX FERRITE
• Magnet Size - 100 X 45 X 18
• Cone Material - PRESSED PAPER CONE

Technical Specs HF

• Tweeter Size - 28 mm
• Frequency Response - 1000 - 40000 Hz
• Comply with HiRes Audio JAS, testing condition IEC 60268-5
• Power Handling - 180 W Peak
• Voice Coil Diameter - 28 mm
• Dome Material - TETOLON FIBER

Electric-acoustic Specs LF

• Re - 2.9 Ohm
• Fs - 66 Hz
• Mms - 15.3 g
• Cms - 0.28
• BL - 5.5
• Qms - 9
• Qes - 0,61
• Qts - 0.57
• Vas - 9.09 l
• Le - 0.3 mH
• Spl - 91 dB
• Xmax - 4.95 mm

General

• Woofer Weight - 1.6 kg
• Tweeter Weight - 0.1 kg
