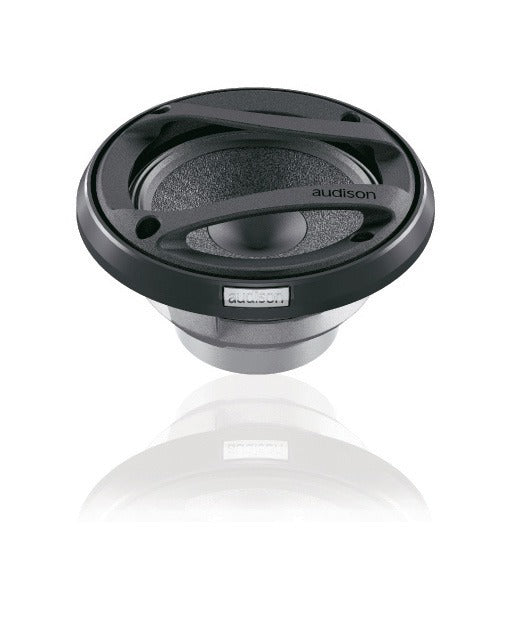

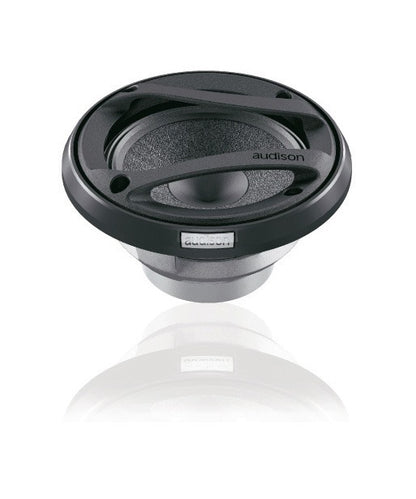

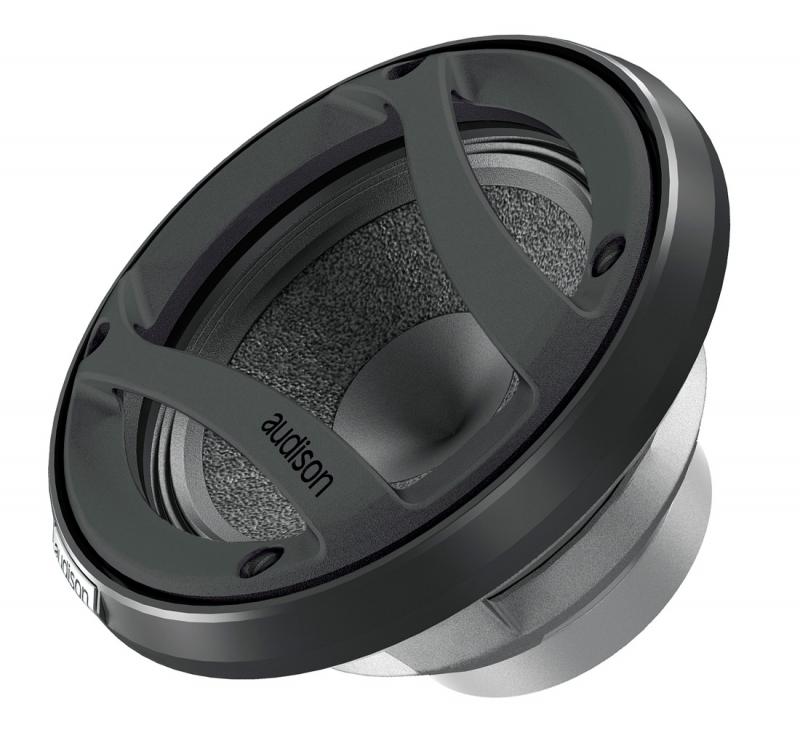

The core of the AV 3.0 midrange is a powerful Neodymium magnetic group: efficiency and linearity make it an irreplaceable component to achieve a fine yet dynamic mid range, while its compact size allows versatile and high-performance installations. Grille included.

Technical Specs

• Nominal diameter - 70 mm (3 in)
• Impedance - 4 Ohm
• Power Handling - 100W Peak
• Power Handling - 50W Continuous
• Sensitivity - 93 dB
• Frequency Response - 200 ÷ 14k Hz
• Voice Coil Ø - 20 mm (0.75 in)
• Magnet Material - NEODYMIUM
• Magnet size D x d x h - 45 x 25 x 4 mm (in.)
• Voice Coil Material - CCAP - COPPER CLAD ALUMINIUM RIBBON
• Xmax - 2 mm (0.08 in)

Electric-acoustic Specs

• Re - 3 Ohm
• Fs - 160 Hz
• Le - 0.12 mH
• Vas - 0.4 l (0.014 ft)
• Mms - 4.4 g (0.155 oz)
• Cms - 0.24 mm/N
• BL - 4.1 T•m
• Qts - 0.64
• Qes - 0,74
• Qms - 4.7

General

• Weight - 0.3 kg
