Product Description

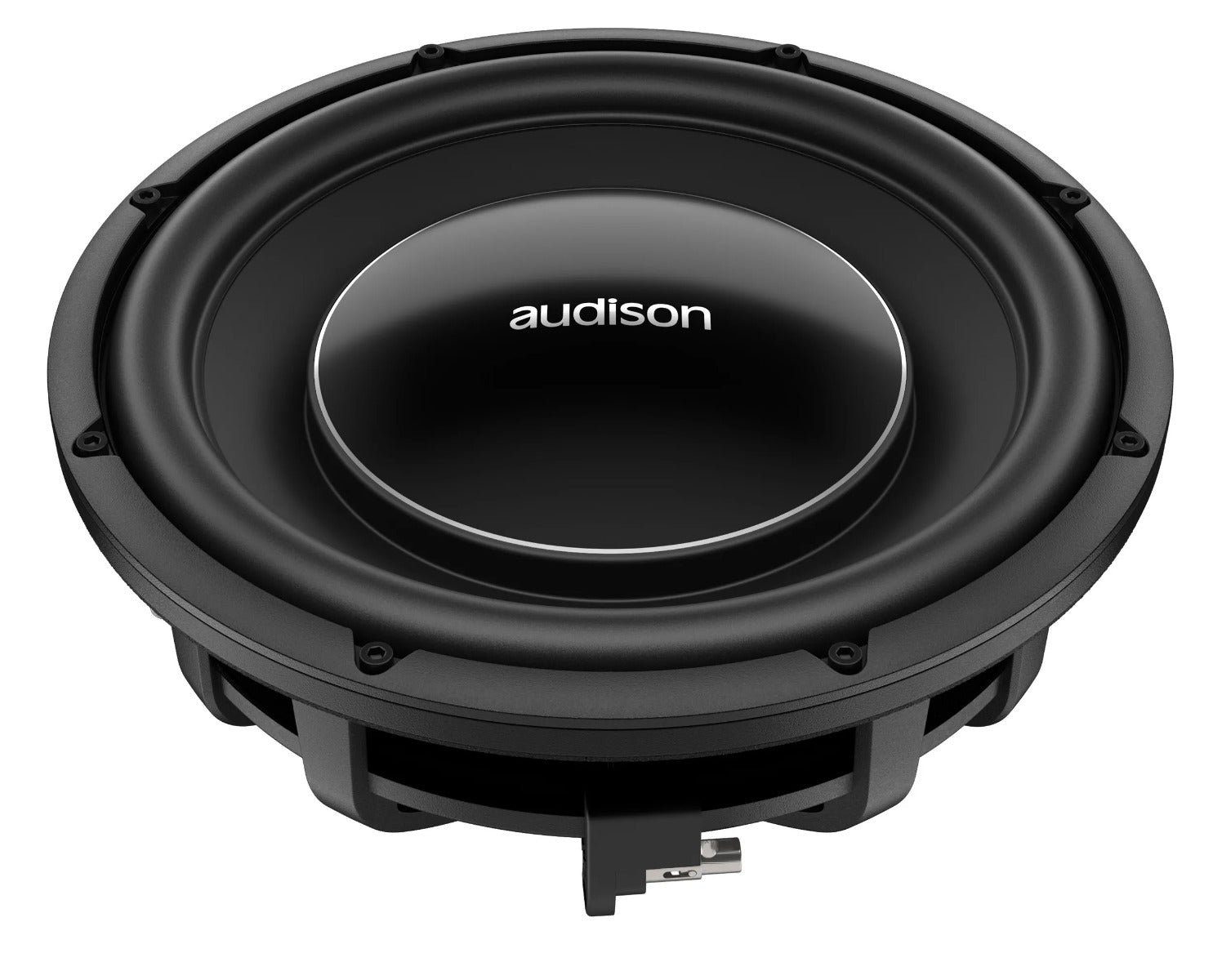

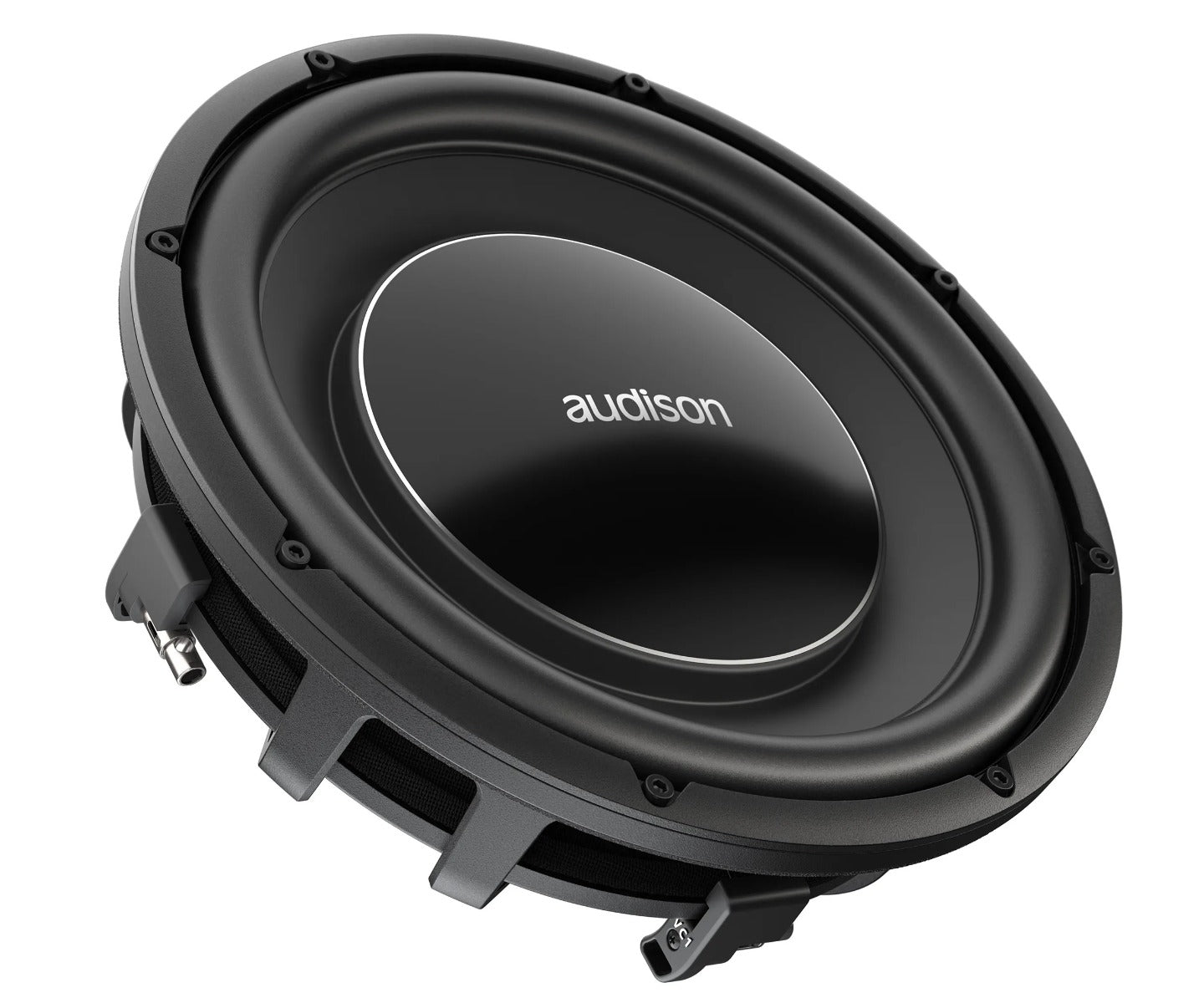

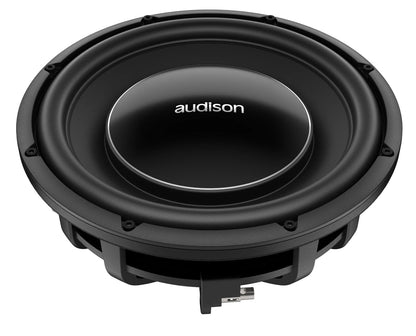

Born from the same engineering philosophy that defines the VOCE II line, the AV 12 D2 II subwoofer delivers deep, powerful and highly controlled bass in a compact sealed enclosure.

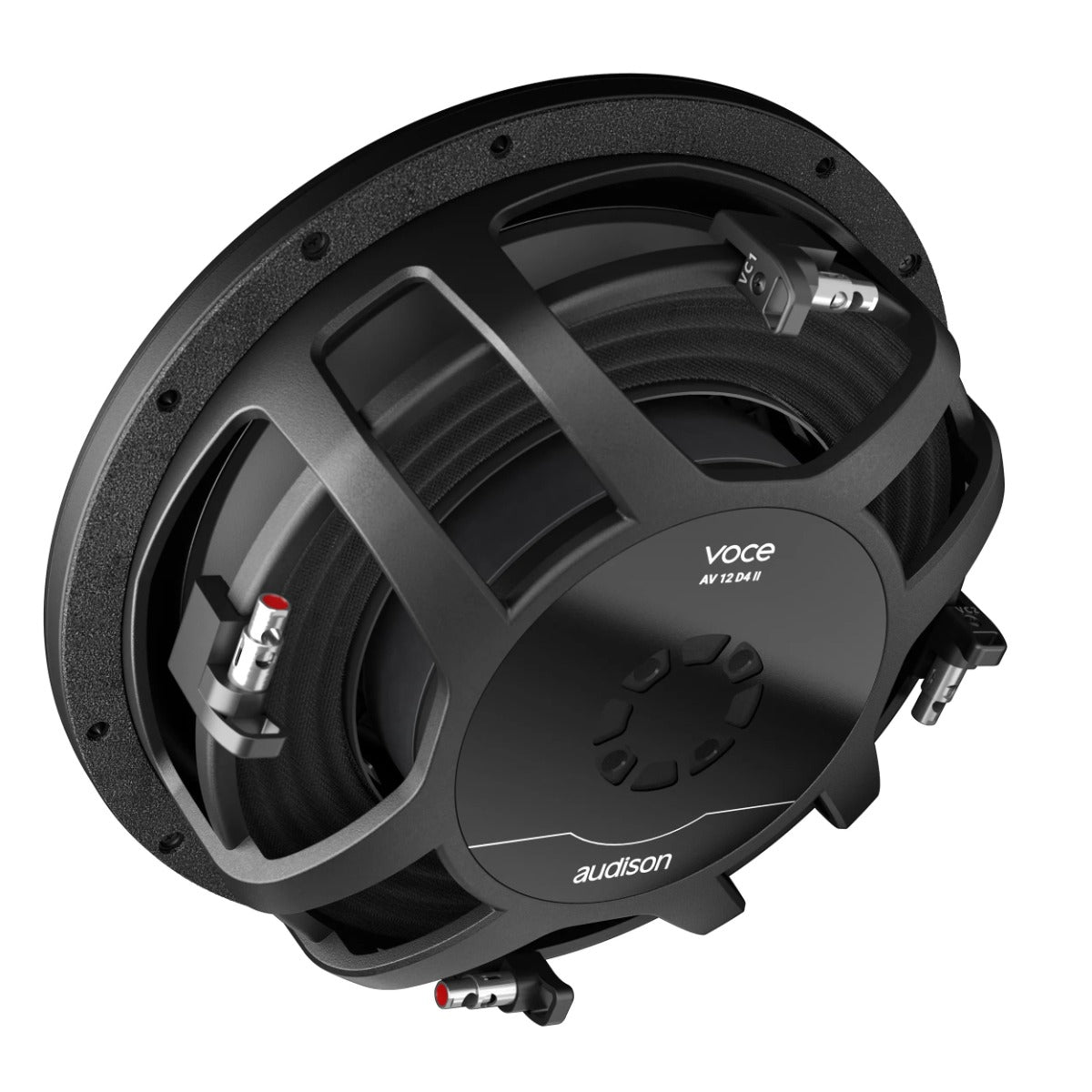

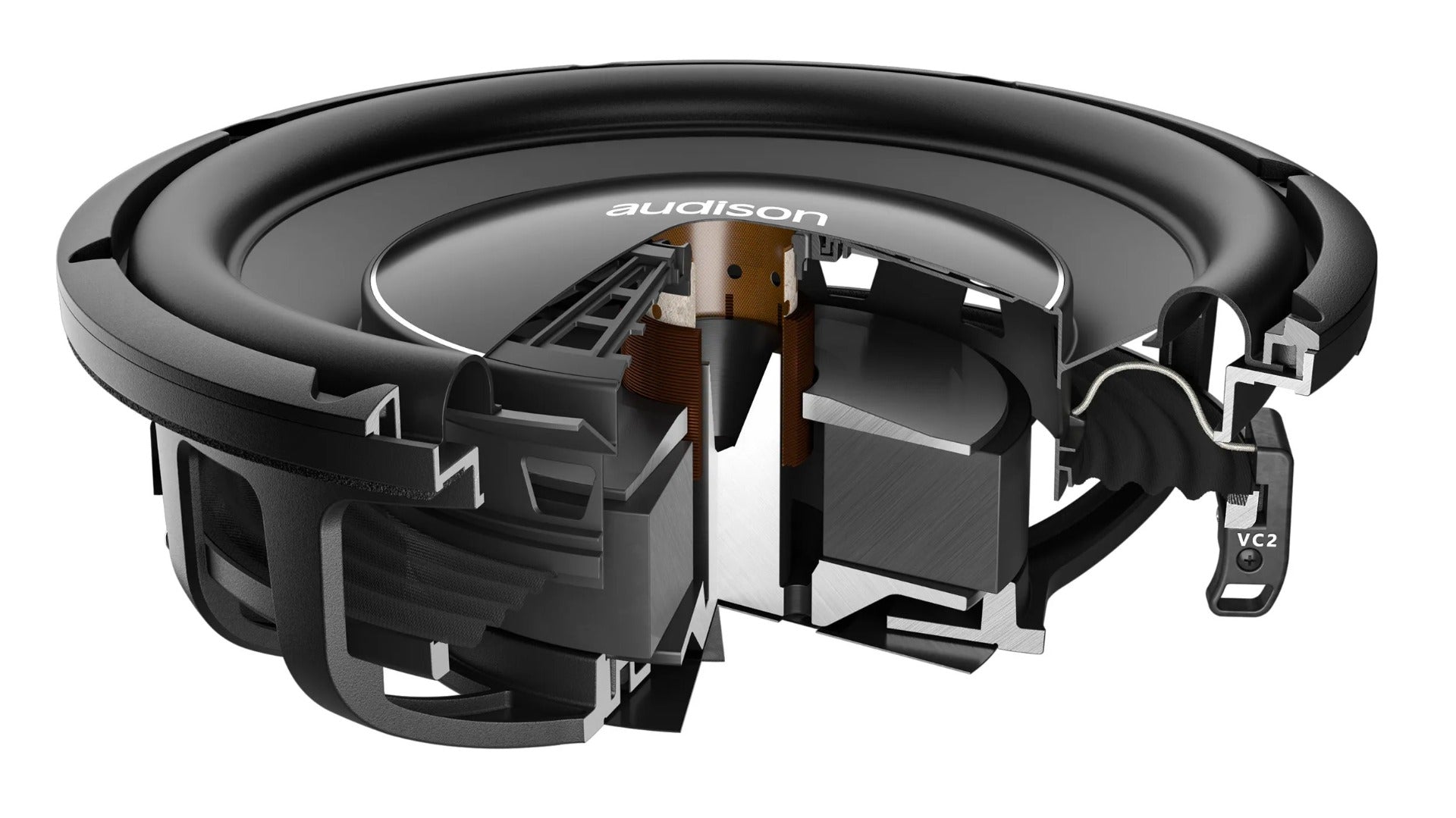

Equipped with a 1.5-inch CCAW voice coil and a 550 W RMS-rated motor structure, it combines dynamic power with thermal stability, ensuring consistent performance even at high sound pressure levels. The die-cast aluminum basket integrates dual cable-routing hooks for clean installation, while the spring-loaded terminals support 8 AWG cables and fast connections.
The FEM-optimized dust cap increases rigidity and damping, perfectly matching the refined design language of the VOCE II range. Engineered to perform at its best in 12–14 L sealed boxes, the AV 12 D2 II is ideal for space-limited setups where sound quality is never a compromise.
With its dual 2-ohm configuration, it offers maximum system flexibility and seamless integration into high-end audio systems.
Precision, power and elegance, this is how VOCE II speaks the language of low frequencies.
Technical Specs
-
Nominal diameter - 300 mm (12 in)
-
Impedance - 2+2 Ohm
-
Power Handling - 1100W Peak
-
Power Handling - 550W RMS
-
Sensitivity - 85 dB
-
Frequency Response - 25 - 400 Hz
-
Voice Coil Ø - 38.6 mm (1.5 in)
-
Chassis Material - ALUMINIUM
-
Magnet Material -HIGH DENSITY FLUX FERRITE
-
Magnet size D x d x h - 156*60*34 mm
-
Voice Coil Material - CCAW
-
Former Material - GLASS FIBER
-
Cone Material - POLYPROPYLENE
-
Xmax - 16.8 mm (0.66 in)
-
Xmech - 20 mm (0.79 in)
-
Voice Coil Winding Height - 37 mm (1.46 in)
-
Gap Height - 7 mm (0.28 in)
-
Driver Displacement Volume - 0.9 l (0.032 ft)
-
Recommended Enclosure - 27.1 l (0.957 ft)
-
Recommended Tuning - 26.5 Hz
-
Ferrofluid - No
Electric-acoustic Specs
-
D - 539 cm² (83.545 in²)
-
Re - 3.3 Ohm
-
Fs - 23 Hz
-
Le - 4.3 mH
-
Vas - 63 l (2.225 ft)
-
Mms - 326 g (11.499 oz)
-
Cms - 0.15 mm/N
-
BL - 17.4 T•m
-
Qts - 0.5
-
Qes - 0.5
-
Qms - 6.7
-
Reference Efficiency - 85
General
-
Weight - 6.6 kg
