The Audison VOCE II AV 6.5 P II woofer is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality.

Specification

• Nominal diameter - 165 mm
• Impedance - 4 Ohm
• Minimum Impedance - 3.1 Ohm
• Power Handling - Peak - 300 W
• Power Handling - Continuous - 150 W
• Sensitivity - 91 dB
• SPL measured at 2.83V/1m;
• Frequency Response - 45 - 7500 Hz (-6dB)
• Voice Coil Ø - 40 mm
• Chassis Material - ALUMINIUM
• Magnet Material - HIGH DENSITY FLUX FERRITE
• Magnet size D x d x h - 100 x 45 x 18 (3.9 x 1.8 x 0.7) mm (in.)
• Voice Coil Material - CCAW
• Former Material - GLASS FIBER
• Cone Material - SEMI-PRESSED PAPER
• Surround Material - RUBBER
• Xmax - 4.95 mm
• Xmech - 7.5 mm
• Voice Coil Winding Height - 13 mm
• Gap Height - 6 mm
• Weight - 1.6 kg

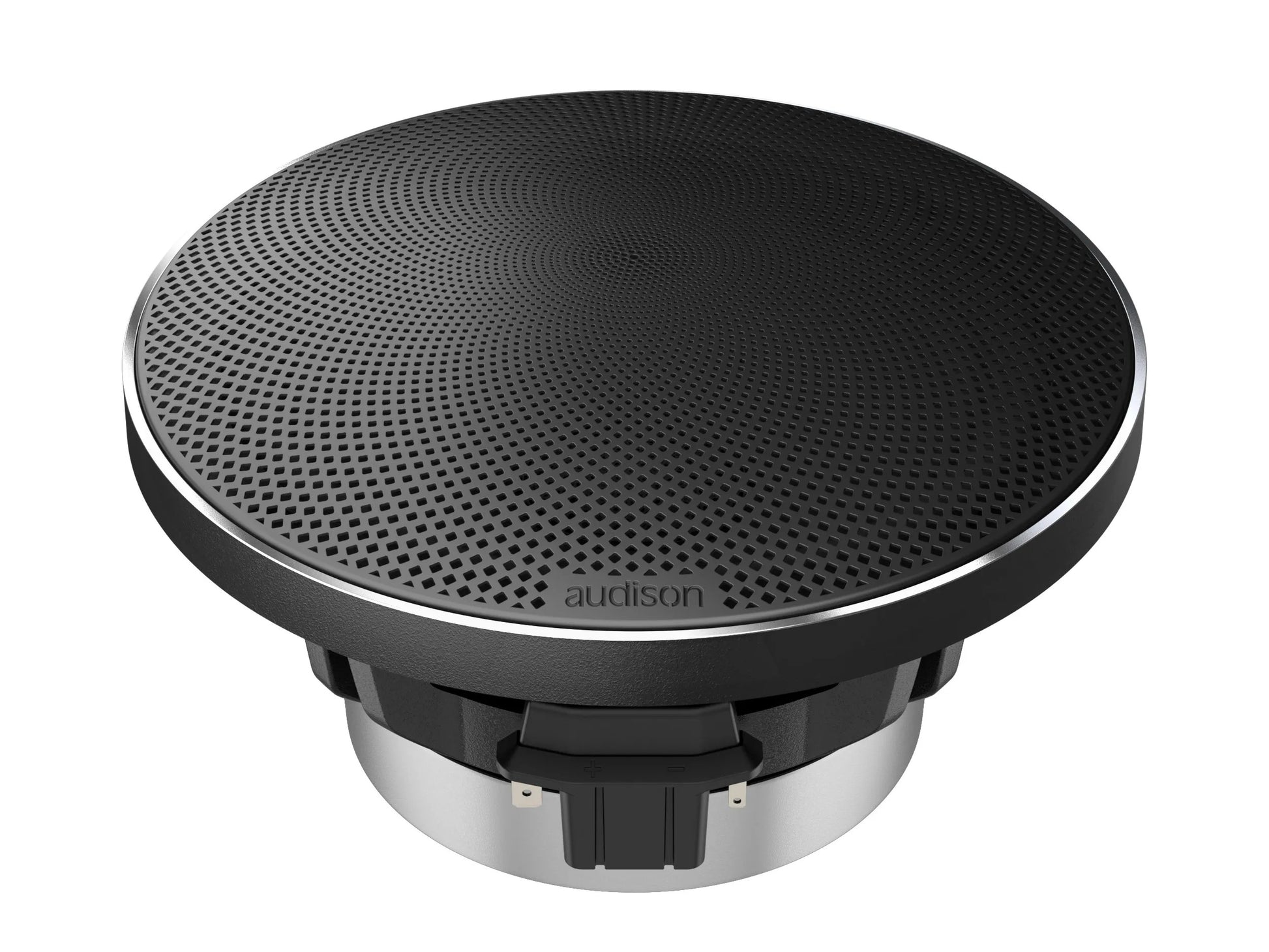

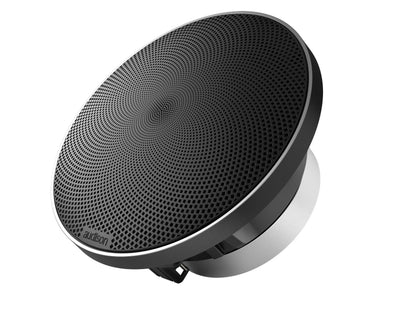

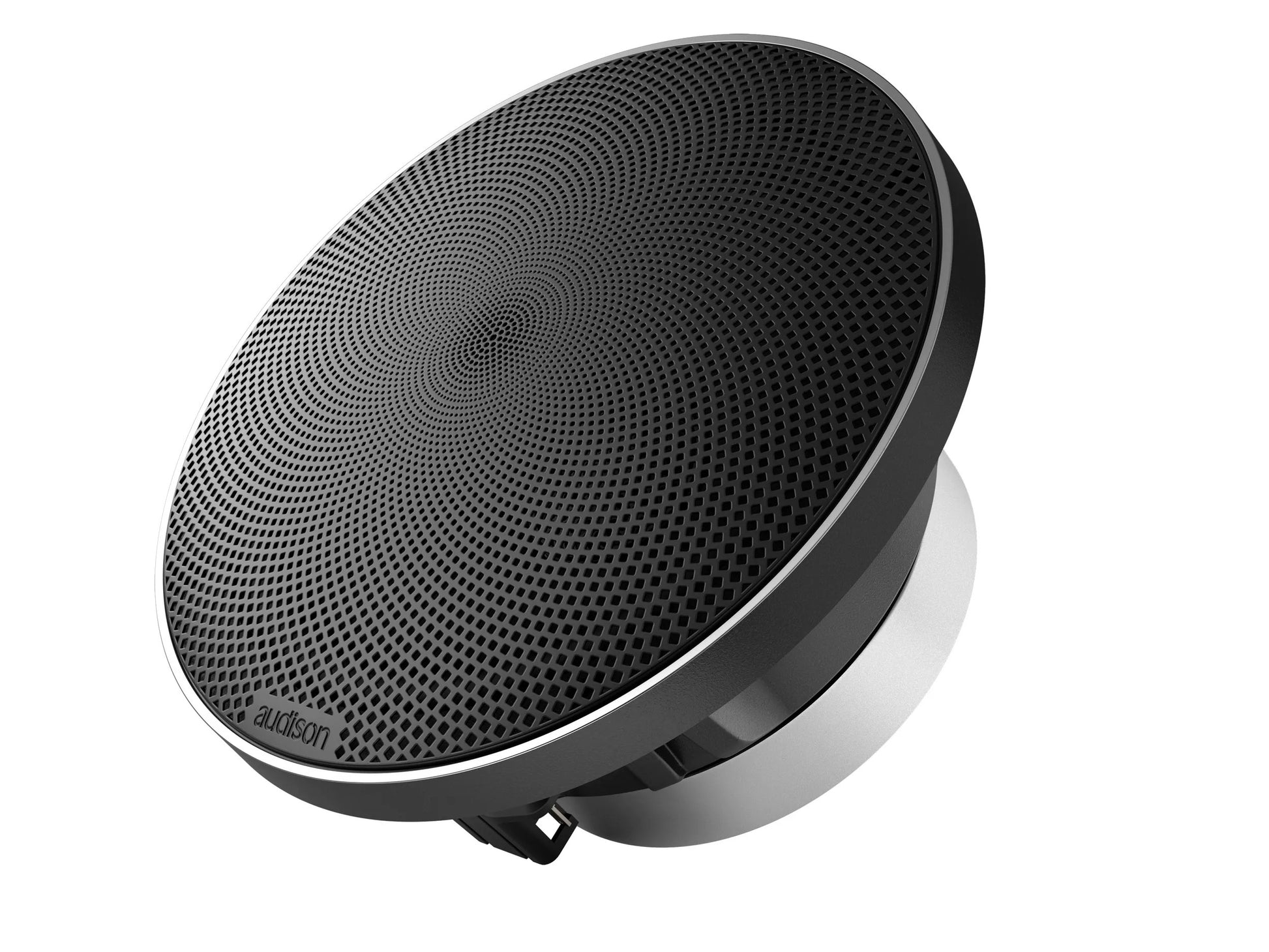

• Black grill Included

Electric-acoustic Specs

• Re - 2.9 Ohm
• Fs - 66 Hz
• Le - 0.3 mH
• Vas - 9.09 l
• Mms - 15.3 g
• Cms - 0.38 mm/N
• BL - 5.5 T•m
• Qts - 0.57
• Qes - 0.61
• Qms - 9.06
