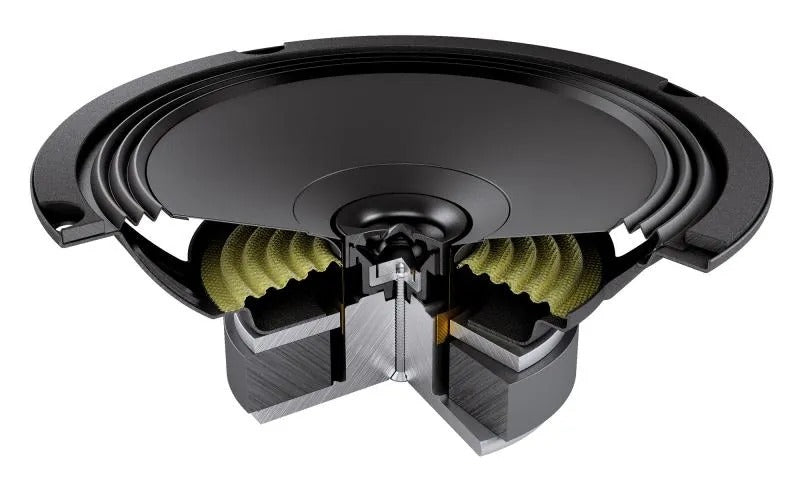

The APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it’s possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The 6.5" cones surround featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.

Technical Specs LF

• Woofer Size - 165 mm (6.5 in)
• Impedance - 4 Ohm
• Power Handling - 210W Peak
• Power Handling - 70W Continuous
• Frequency Response - 60 ÷ 23k
• Voice Coil Diameter - 32 mm (0.59 in)
• Magnet Size - 85 x 40 x 15
• Xmax - 2 mm (1.26 in)

Technical Specs HF

• Tweeter Size - 24 mm (0.94 in)
• Sensitivity - 94 dB
• Voice Coil Diameter - 15 mm (0.59 in)

Electric-acoustic Specs

• Re - 3.1 Ohm
• Fs - 80 Hz
• Mms - 11.5 g (0.41 oz)
• Cms - 0.33
• Bl - 4.6
• Qms - 5.4
• Qes - 0,84
• Qts - 0.73
• Vas - 8.1 l (0.29 ft)
• LE - 0.1 mH

General

• Weight - 0.87 kg
