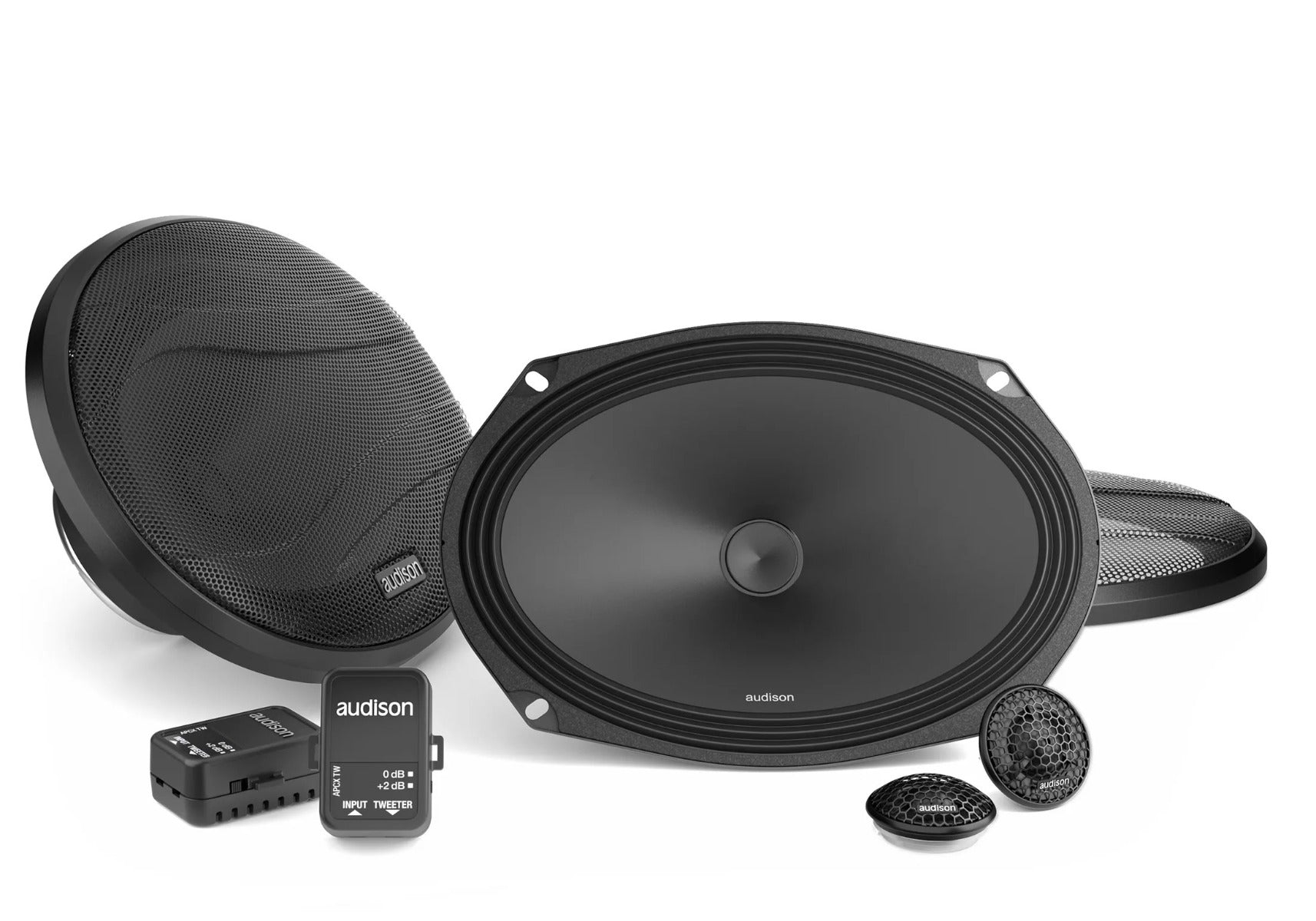

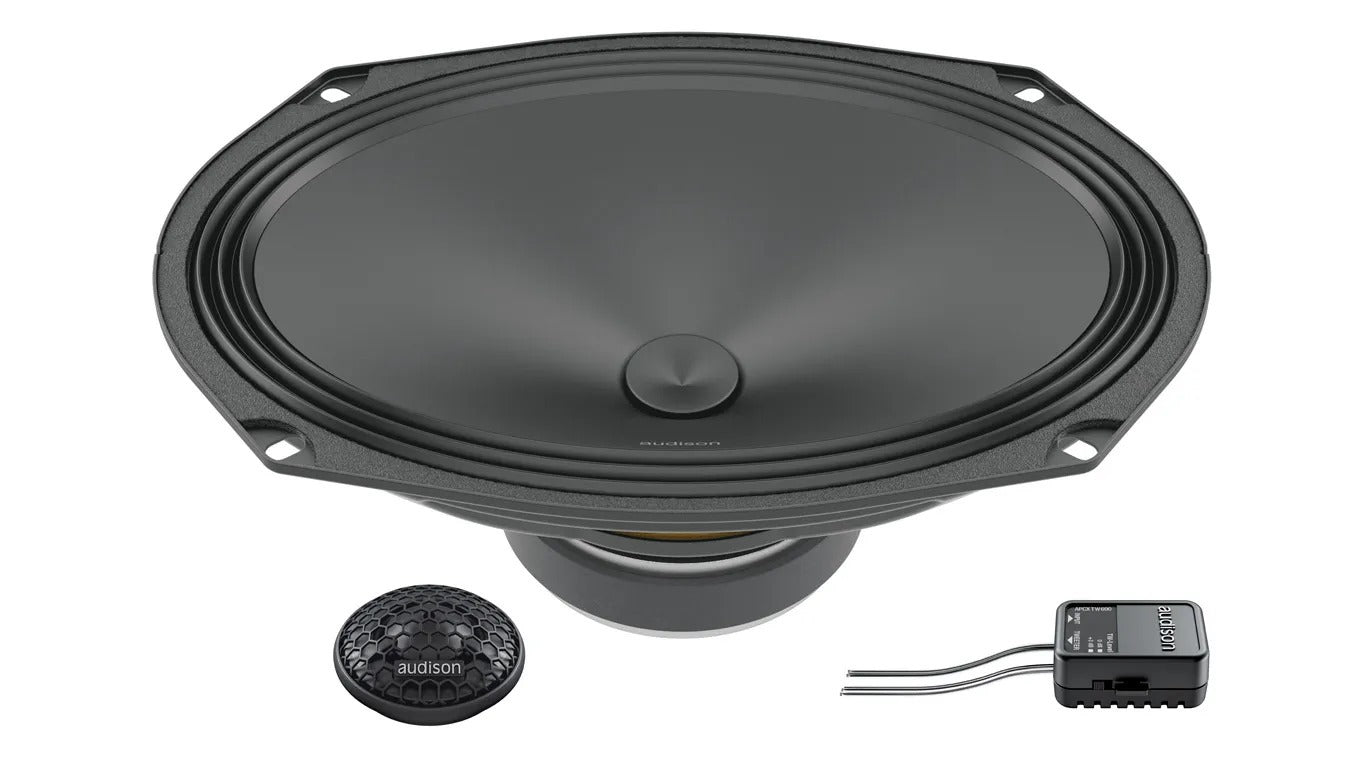

The APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6x9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning. The R & D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation.

Features

AP 1 Tweeter

• 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.

• Acoustic lens designed to compensate for the in-car frequency response in the 10kHz 13kHz bandwidth caused by critical OEM placements.

AP 690 Woofer

• 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.

• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.

• Reduced mounting depth, providing ease of installation in OEM placements.

• “Triple wave” surround profile for maximum linearity of excursion.

• Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.

• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection.

APCX TW 690 Crossover

• Optimized for OEM Integration featuring an attenuation switch(0 dB, +3dB) to tune the in-car response according to different installation conditions.

• Supplied with fast-on connectors that eliminate any possible connection errors.

Specifications

Technical Specs LF

• Woofer Size - 690 mm

• Impedance - 4 Ohm

• Power Handling - 300W Peak

• Power Handling - 100W RMS

• Frequency Response - 40 - 20 k

• Voice Coil Diameter - 25 mm (0.98 in)

• Magnet Size - 90 x 32 x 15

• Crossover Type - HP 6 dB Oct - 3,3 kHz

Technical Specs HF

• Tweeter Size - 26 mm (1 in)

• Voice Coil Diameter - 20 mm (0.98 in)

Electric-acoustic Specs LF

• Re - 3.1 Ohm

• Fs - 55 Hz

• Mms - 17 g

• Cms - 0.5

• BL - 5.3

• Qms - 7

• Qes - 2,78

• Qts - 0.6

• Vas - 37.1 l

• Le - 0.2 mH

• Spl - 95 dB

• Xmax - 4 mm (0.16 in)

Kit Tech Data

• Cone Diameter - 171 mm

General

• Weight Woofer - 1.17 kg

• Weight Tweeter - 0.04 kg
