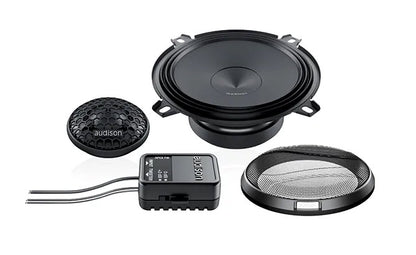

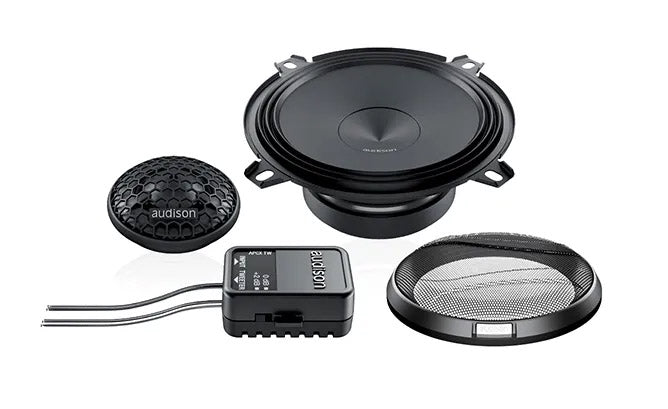

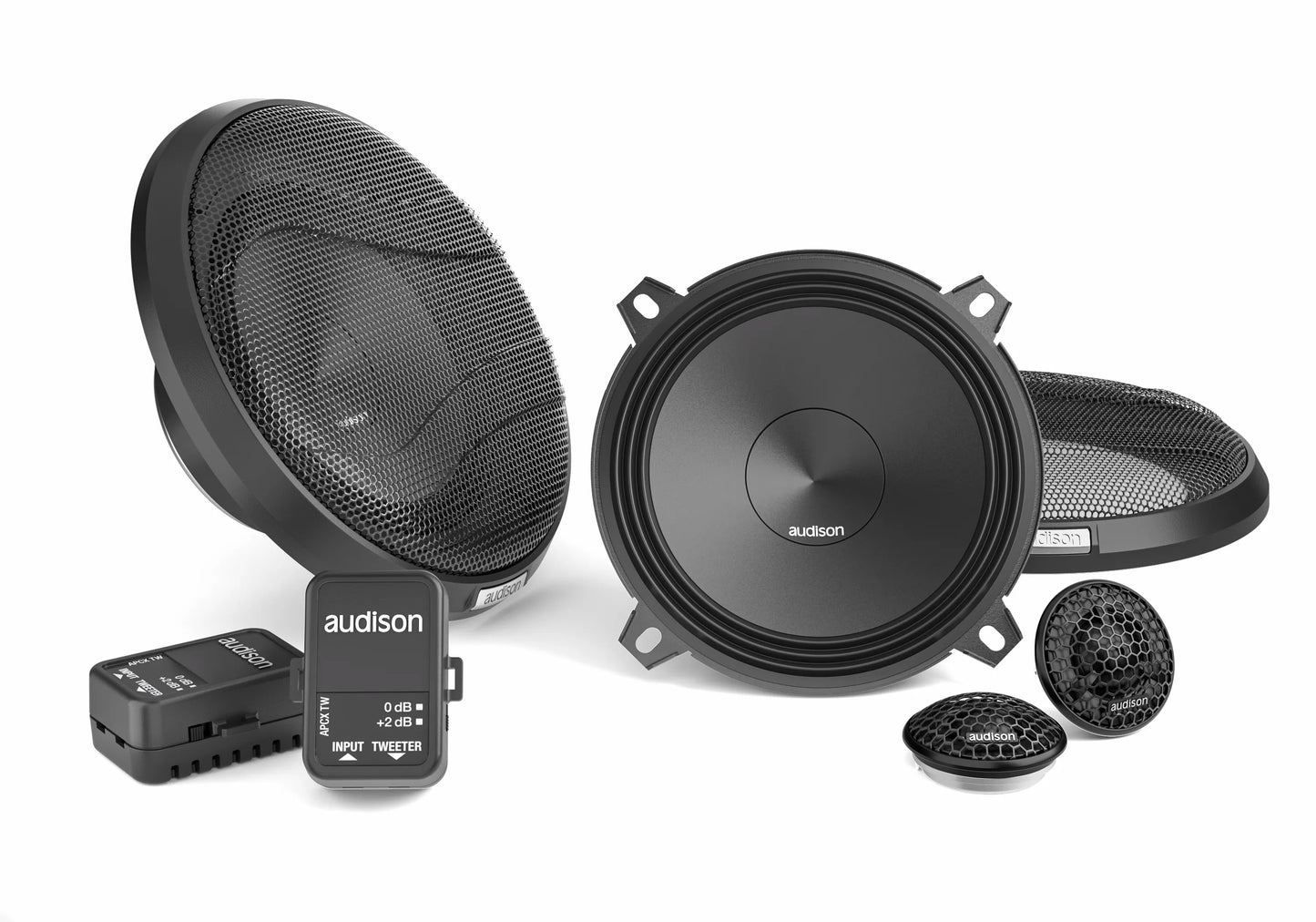

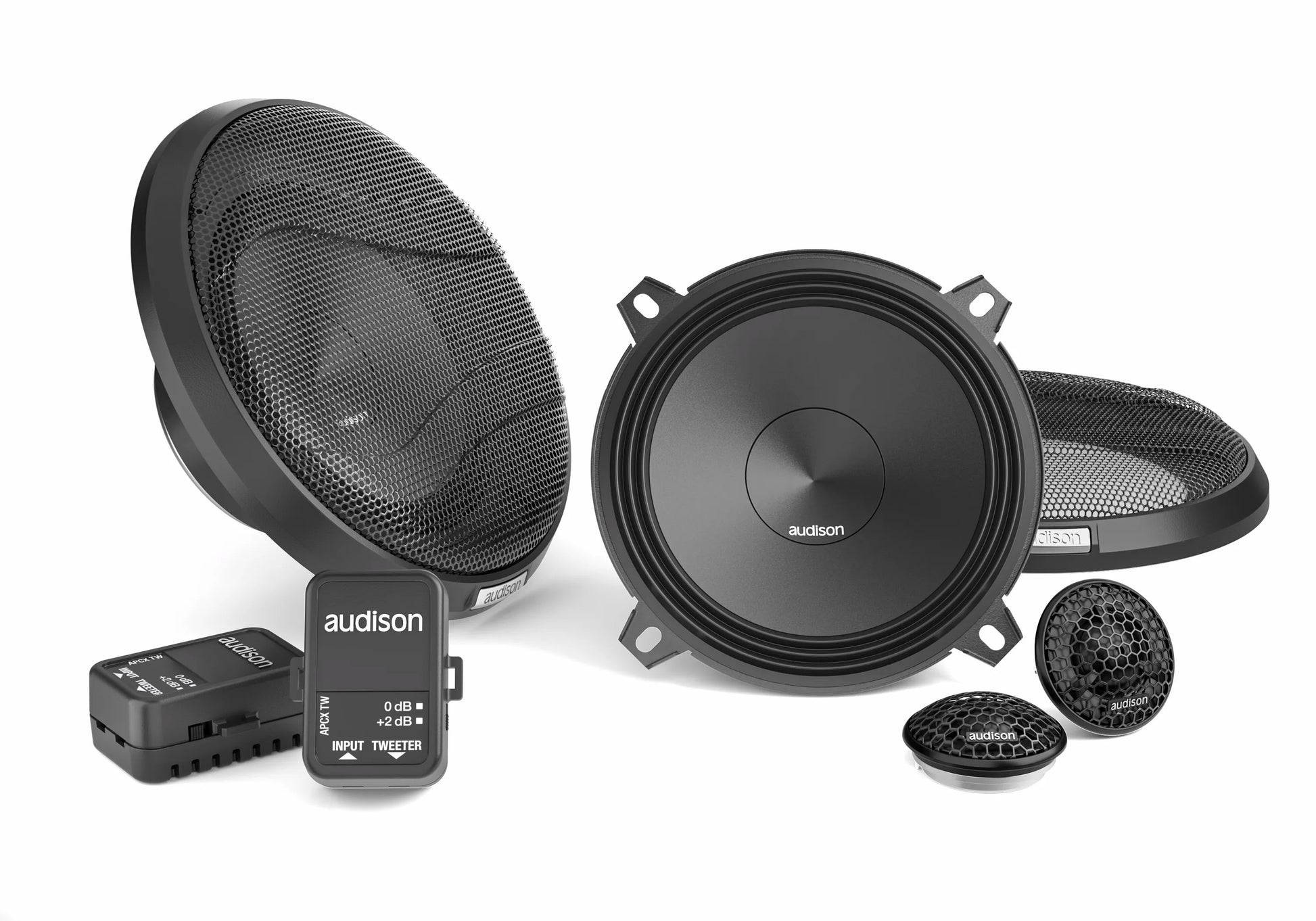

The APK130 two way system features AP 1 tweeter and AP 5 Woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.

Technical Specs LF

• Woofer Size - 130 mm (5 in)
• Impedance - 4 Ohm
• Power Handling - 225W Peak
• Power Handling - 75W Continuous
• Frequency Response - 70 ÷ 20k
• Voice Coil Diameter - 32 mm (1.26 in)
• Magnet Size - 85 x 40 x 13
• Crossover Type - HP @ 3,5 kHz - 6 dB Oct
• Crossover Level Adjustment - +2; 0

Technical Specs HF

• Tweeter Size - 26 mm (1 in)
• Voice Coil Diameter - 20 mm (1.26 in)

Electric-acoustic Specs LF

• Re - 3.1 Ohm
• Fs - 90 Hz
• Mms - 9 g
• Cms - 0.34
• BL - 4.6
• Qms - 8
• Qts - 0.68
• Vas - 4 l
• Le - 0.25 mH
• Spl - 93 dB
• Xmax - 2 mm (0.08 in)

Kit Tech Data

• Cone Diameter - 107 mm

General

• Weight Woofer - 0.65 kg
• Weight Tweeter - 0.04 kg
