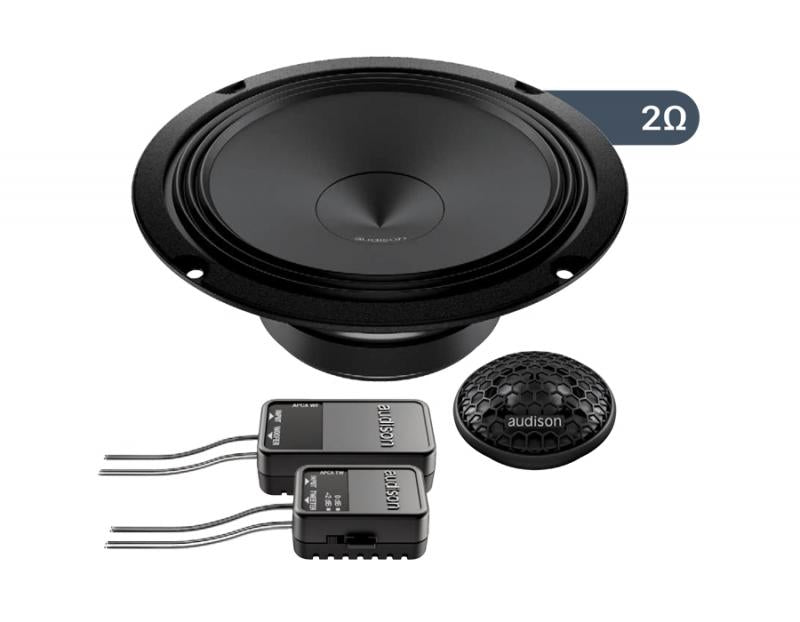

The APK 165 Ω2 system features 2 crossovers dedicated to woofer and tweeter and separated, to ease the installation. Both crossovers are provided with the Hi-Contour function, to enhance the high frequencies, designed to achieve the correct timbre balance with rich low frequencies guaranteed by the woofer.

Technical Specs LF

• Woofer Size - 165 mm (6.5 in)
• Impedance - 2 Ohm
• Power Handling - 300W Peak
• Power Handling - 100W Continuous
• Frequency Response - 50 ÷ 20k
• Voice Coil Diameter - 25 mm (0.98 in)
• Magnet Size - 85 x 32 x 15
• Crossover Type - Cut Off @ 4.5 / 5 kHz
• Crossover Level Adjustment - +2; 0

Technical Specs HF

• Tweeter Size - 26 mm (1 in)
• Voice Coil Diameter - 20 mm (0.98 in)

Electric-acoustic Specs LF

• Re - 2.1 Ohm
• Fs - 75 Hz
• Mms - 10.5 g
• Cms - 0.4
• BL - 3.8
• Qms - 4.8
• Qts - 0.63
• Vas - 8.5 l
• Le - 0.15 mH
• Spl - 95 dB
• Xmax - 2.8 mm (0.11 in)

Kit Tech Data

• Crossover Cut Off - @ 4.5 / 5 kHz
• Cone Diameter - 127 mm

General

• Weight Woofer - 0.78 kg
• Weight Tweeter - 0.04 kg
