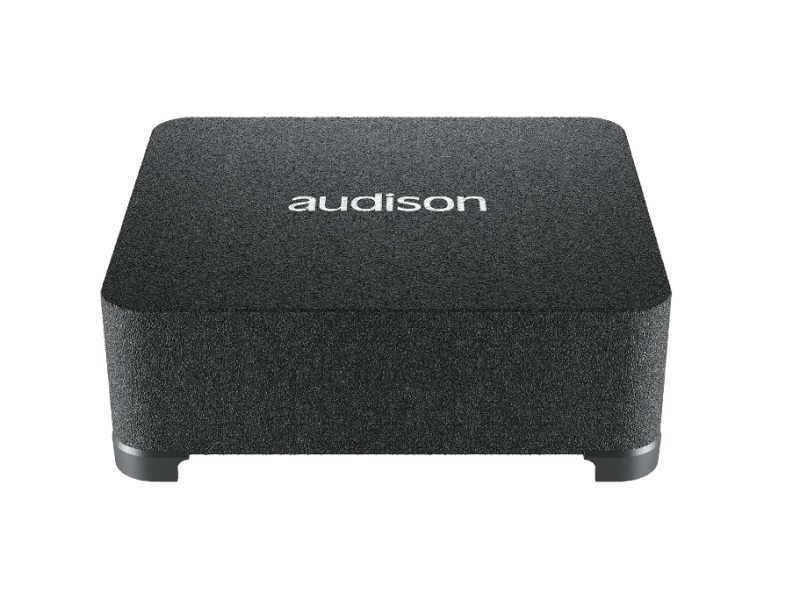

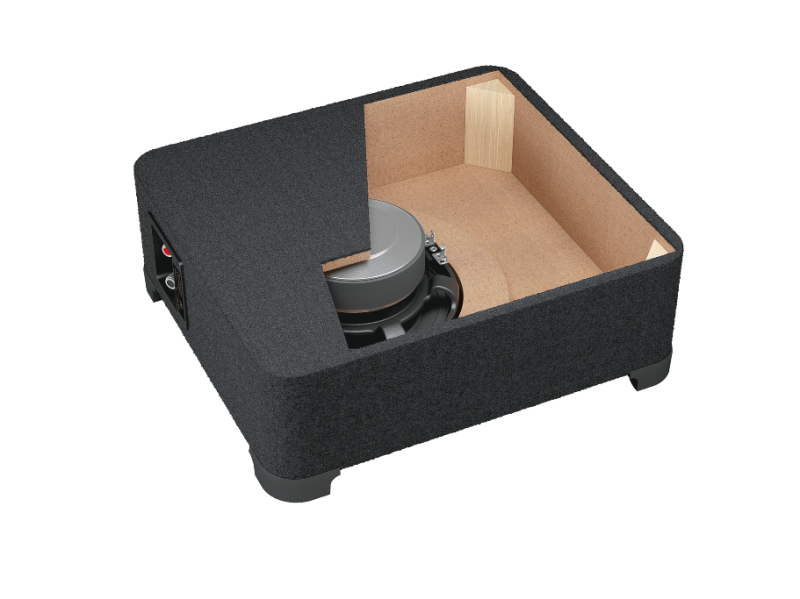

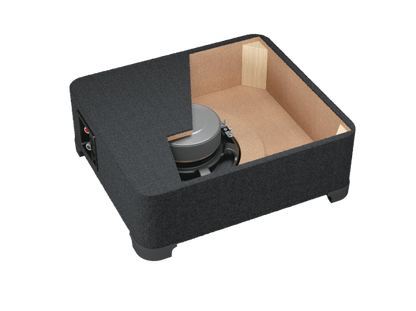

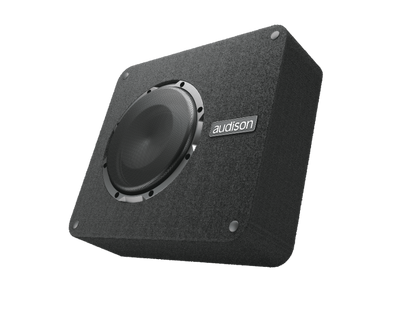

• Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.

• 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.

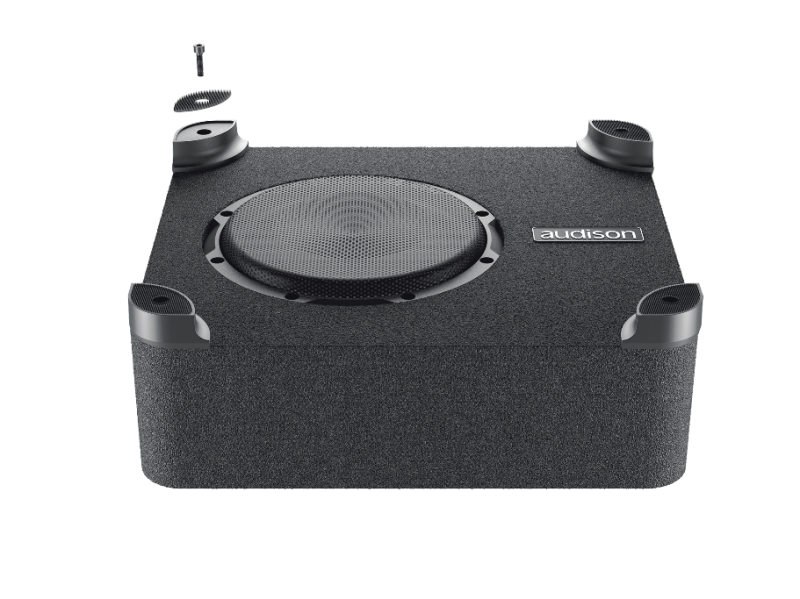

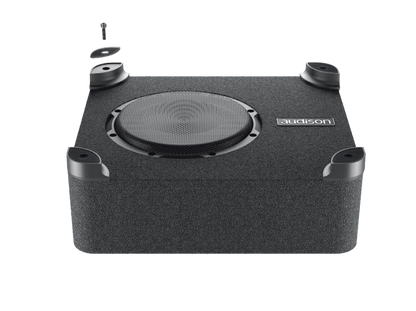

• Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.

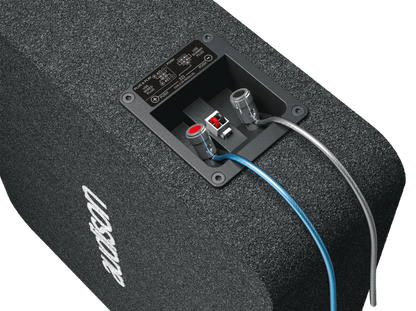

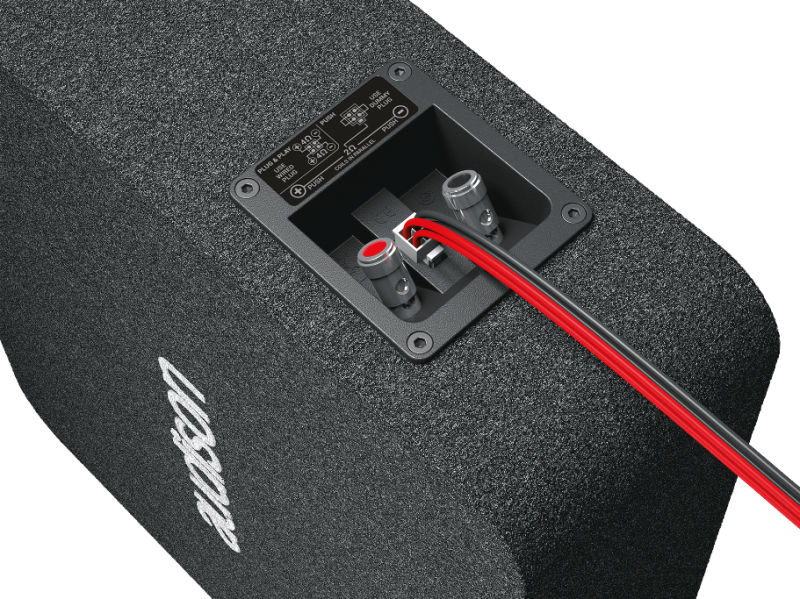

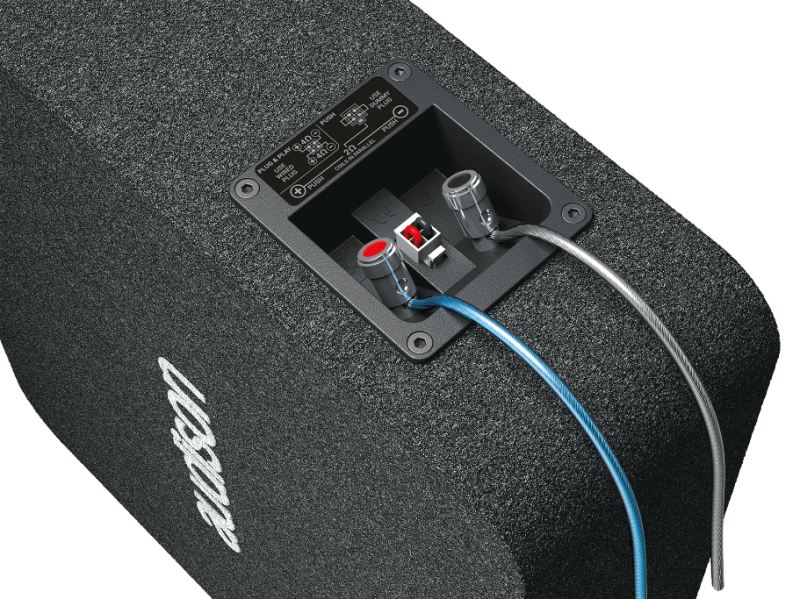

• SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.

• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.

• Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (9 mm, one-way).

• Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.

• Water-repellent pressed paper 8 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer. Specifically developed to be combined with either AF M1D mono or AF C4.10 bit/AF C4D/AF M4D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.

• Sturdy metal grid included for a total protection of the subwoofer driver.

Technical Specs

• Nominal diameter - 200 mm

• Impedance - 4+4 Ohm

• Power Handling - 500W Peak

• Power Handling - 250W RMS

• Magnet Material - HIGH DENSITY FLUX FERRITE

• Cone Material - WATER REPELLENT PRESSED PAPER

Dimensions

• Height - 374mm

• Width - 334mm

• Depth -  109mm

• Depth (with feet) - 131mm
