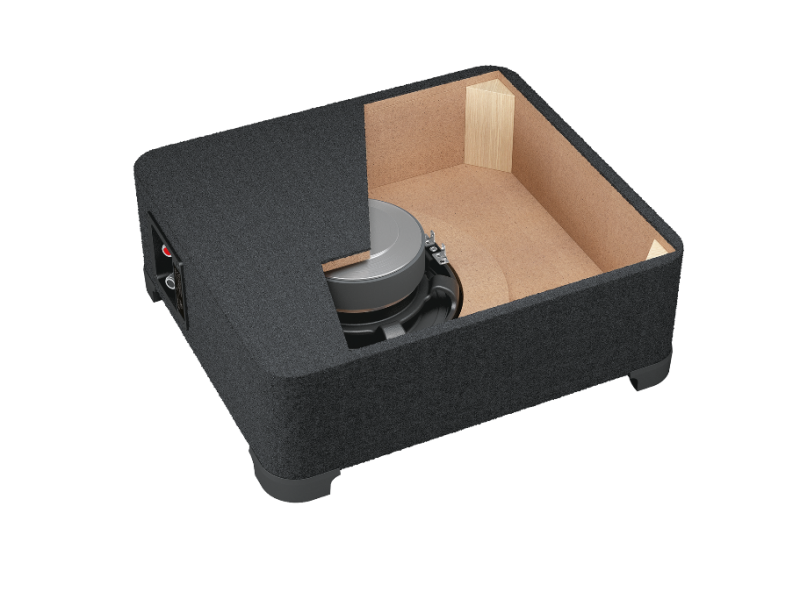

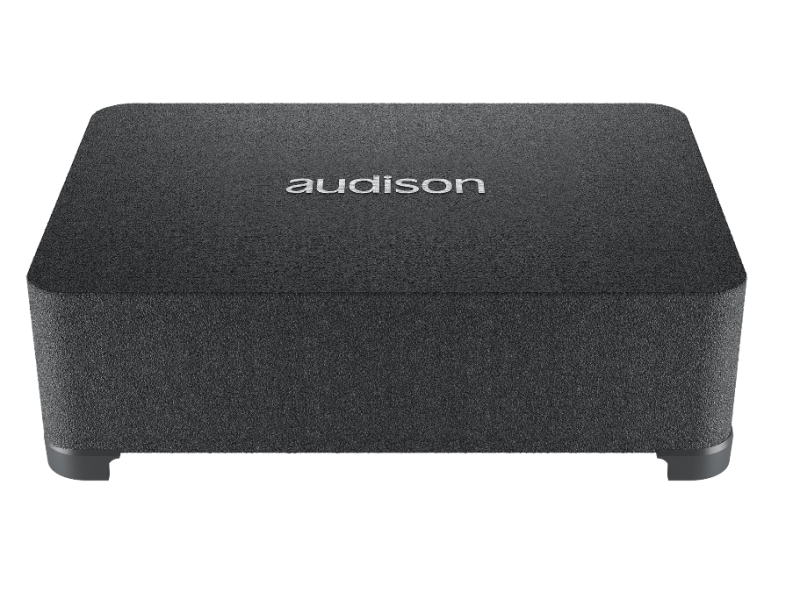

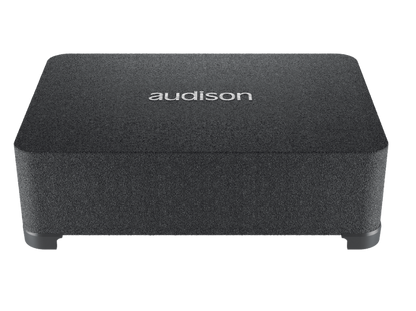

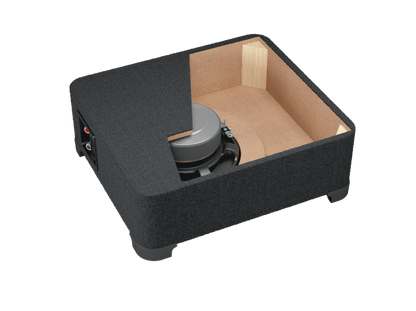

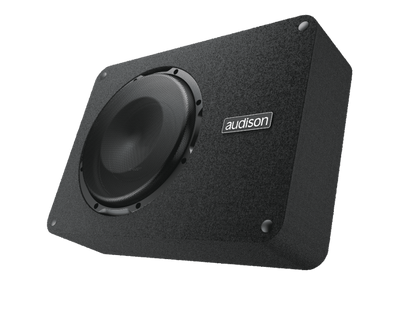

• Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.

• 2 Sides/2 Sounds: design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing installation to obtain more punch and definition.

• Leveling feet with velcro inserts included for a secure grip on the carpet while maintaining easy removal.

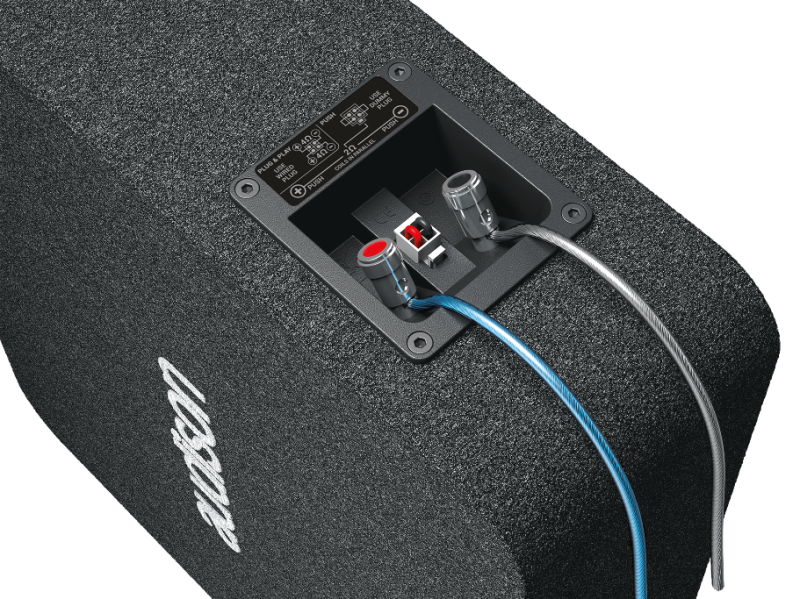

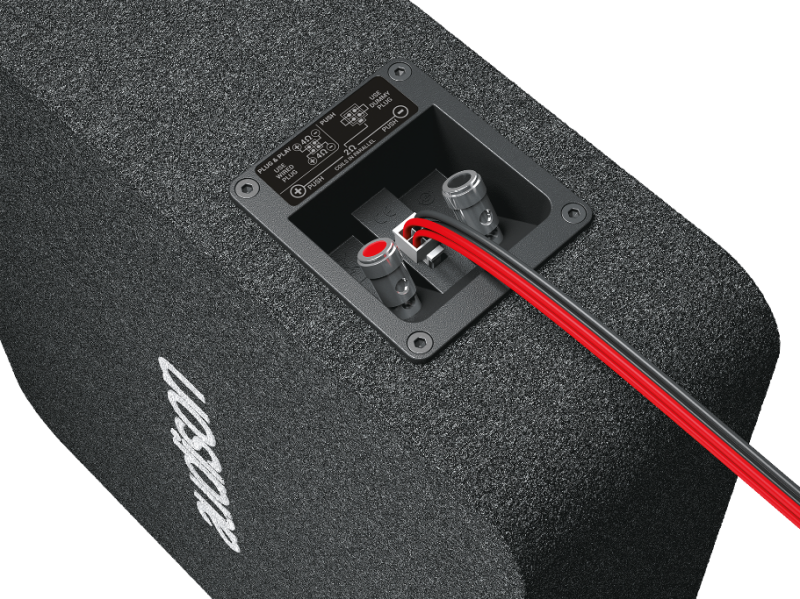

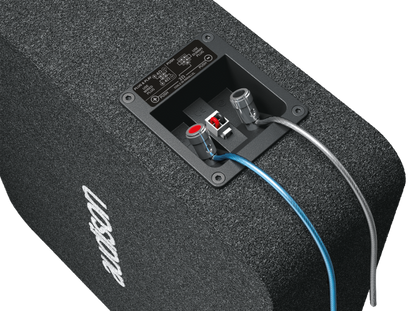

• SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.

• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance. 6 Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way).

• Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.

• Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.

• Specifically developed to be combined with Audison AF amplifiers, taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.

• A sturdy metal grid is included for the total protection of the subwoofer driver.

Technical Specs

• Nominal diameter - 250 mm

• Impedance - 4+4 Ohm

• Power Handling - 800W Peak

• Power Handling - 400W RMS

• Magnet Material - HIGH DENSITY FLUX FERRITE

• Cone Material - WATER REPELLENT PRESSED PAPER

Dimensions

• Height - 470mm

• Width - 334mm

• Depth - 120mm

• Depth (with feet) - 142mm
